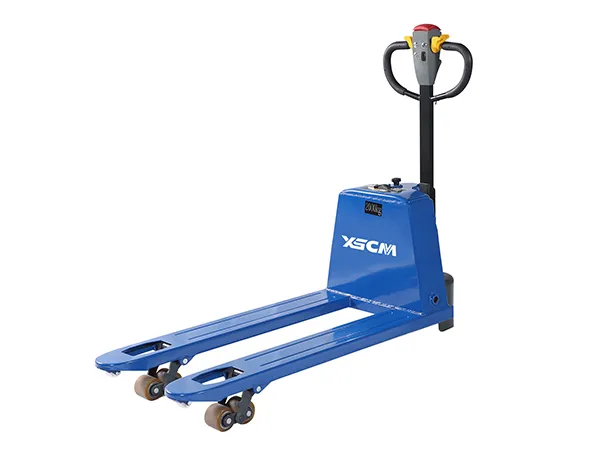

STT15E/20E Walkie Electric Pallet Truck
Electric pallet jack with load capacity options of 1500kg and 2000kg
- Capacity
1500-2000kg - Load center
600mm - Wheelbase
1220mm - Net weight
128-138kg
Compact and easy to maneuver, the walkie electric pallet truck (also known as EPT) is used for short-distance horizontal transport of palletized goods. It operates quietly and efficiently in warehouses, supermarkets, and truck loading areas where space is limited.
Specifications
| Model | | |
| Drive type | Battery | Battery |
| Operating mode | Pedestrian | Pedestrian |
| Capacity | 1500kg | 2000kg |
| Load center | 600mm | 600mm |
| Wheelbase | 1220mm | 1220mm |
| Net weight | 128kg | 138kg |
| Wheel material | PU/steel core | PU/steel core |
| Drive wheel (diameter×width) | Ø190×70mm (1pc) | Ø190×70mm (1pc) |
| Load roller (diameter×width) | Ø80×70mm (4pcs) | Ø80×70mm (4pcs) |
| Lifting height | 75-190mm/85-190mm | 75-190mm/85-190mm |
| Min. fork height | 85mm | 85mm |
| Overall length | 1540mm | 1540mm |
| Overall width | 560/680mm | 560/680mm |
| Single fork dimensions | 160×1150mm/160×1220mm | 160×1150mm/160×1220mm |
| Ground clearance | 30mm | 30mm |
| Min. right-angle stacking aisle width | 1500mm | 1500mm |
| Turning radius | 1350mm | 1350mm |
| Drive speed (with/without loading) | 4.5km/h | 4.5km/h |
| Lifting speed (with/without loading) | 22/17mm/s | 22/17mm/s |
| Lowering speed (with/without loading) | 26/30mm/s | 26/30mm/s |
| Gradeability (with/without loading) | 6/10% | 6/10% |
| Brake | Electromagnetic brake | Electromagnetic brake |
| Power of Drive motor | 750W | 800W |
| Power of lifting motor | 500W | 600W |
| Battery capacity | 48V 12Ah | 48V 15Ah |
| Battery weight | 4.5kg | 4.5kg |
| Charging time | 2h | 2.5h |
| Working time after full charge | >2h | >2h |
