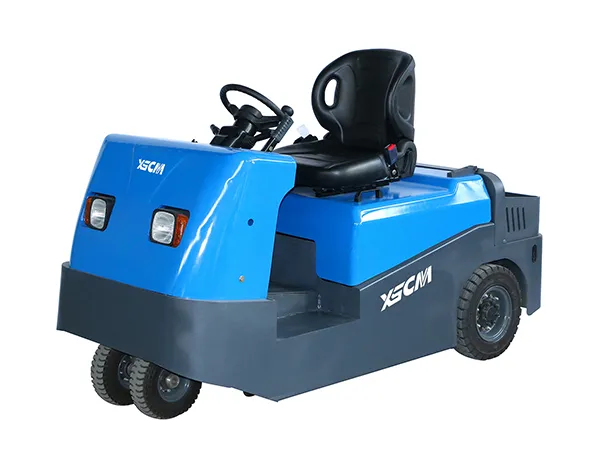

STB30A/40A/50A/60A Seated Electric Tow Tractor (Electric Tugger)
Electric tugger with maximum towing capacity options of 3000kg, 4000kg, 5000kg and 6000kg
- Drive type
rear-wheel electric drive - Towing speed (loaded/unloaded)
6-12 km/h - Minimum turning radius
1.5-2.2 m - Operation mode
sit-down type with steering wheel - Operating time per charge
6-8 hours
Applications: factories, airports, and warehouses requiring long-distance or multi-trailer towing
Specifications
| Model | | |
| Drive type | Electric | Electric |
| Operating mode | Seated | Seated |
| Performance | ||
| Weight with battery | 812kg | 1240kg |
| Max. tow capacity | 3000/4000kg | 5000/6000kg |
| Overall height | 1209mm | 1209mm |
| Seat height | 862mm | 862mm |
| Coupling height (hook center to ground) | 260-480mm | 260-480mm |
| Front suspension | 872mm | 872mm |
| Overall length | 1957mm | 1957mm |
| Overall width | 960mm | 960mm |
| Min. ground clearance | 110mm | 110mm |
| Tire | ||
| Wheel type | Tire | Tire |
| Drive wheel size | 410×112mm | 410×112mm |
| Front wheel size | 286×100mm | 286×100mm |
| Electrical Components | ||
| Drive motor type | AC | |
| Rated output | 3kW | 4kW |
| Steering type | Mechanical steering | |
| Stopping brake type | Drum brake | Drum brake |
| Battery | ||
| Voltage | 24V | 48V |
| Capacity | 280Ah | 325Ah |
| Weight | 260kg | 600kg |
Features
- The seated design gives the operator a clear view and a more relaxed posture, which helps during long towing shifts.
- With rear-wheel drive, the tractor moves steadily even when handling several trailers or heavy materials.
- Steering feels natural through the wheel, making direction changes and precise turns effortless.
- The sturdy chassis keeps the vehicle well-balanced and minimizes vibration when working with heavy loads.
Are your forklifts suitable for food processing facilities?
Are your forklifts suitable for food processing facilities?
Our forklifts are built to meet high safety and quality standards, featuring long battery life and reliable performance. They can be used both indoors and outdoors across different surface conditions, making them ideal for food processing and related operations.
Which forklift truck is best suited for the construction industry?
Which forklift truck is best suited for the construction industry?
Our rough terrain diesel forklifts are designed for demanding construction environments. Equipped with high-torque diesel engines, they deliver strong power and stability on challenging surfaces such as sand, mud, and gravel.
Can the forklifts operate on uneven or rough terrain?
Can the forklifts operate on uneven or rough terrain?
The forklifts are engineered for heavy-duty performance, with powerful diesel engines and superior traction. The ground clearance exceeds 300 mm, and the four-wheel drive system provides over 30% climbing capability, ensuring reliable operation on unpaved surfaces such as forestry sites, mines, and construction areas.
