STB20/30/40/50 Stand-On Electric Tow Tractor (Electric Tugger)
  • STB20/30/40/50 Stand-On Electric Tow Tractor (Electric Tugger)
  • STB20/30/40/50 Stand-On Electric Tow Tractor (Electric Tugger)
  • STB20/30/40/50 Stand-On Electric Tow Tractor (Electric Tugger)

    • STB20/30/40/50 Stand-On Electric Tow Tractor (Electric Tugger)

    Electric tugger with maximum towing capacity options of 2000kg, 3000kg, 4000kg and 5000kg

    • Drive Type
      Electric front-wheel drive
    • Speed Control
      Tiller handle, 5-8 km/h
    • Operation Mode
      Stand-on type
    Request a Quote
    Specifications
    Model STB20 STB30 STB40 STV50
    Max. tow capacity 2000kg 3000kg 4000kg 5000kg
    Service weight (with battery) 630kg 630kg 1330kg 1330kg

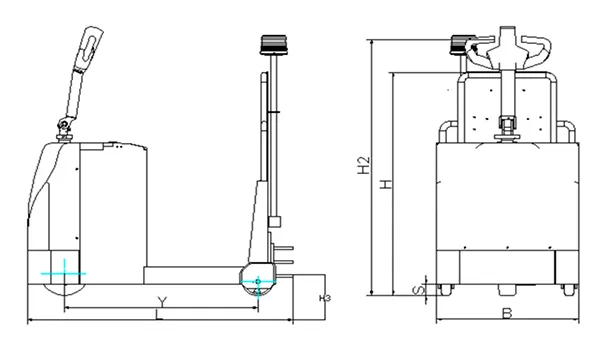

    Dimensions
    Overall length of frame, L 1365mm 1365mm 1494mm 1494mm
    Overall width of frame, B 735mm 735mm 884mm 884mm
    Handle height, H2 1485mm 1485mm 1573mm 1573mm
    Min. ground clearance, S 37mm 37mm 37mm 37mm
    Pull bolt height, H3 220-430mm 220-430mm 220-430mm 220-430mm
    Overall height of frame, H 1469mm 1469mm 1596mm 1596mm
    Min. turning radius, WA 1305mm 1305mm 1485mm 1485mm
    Tire
    Front wheel size 130×75mm 130×75mm 210×85mm 210×85mm
    Drive wheel size 230×75mm 230×75mm 260×105mm 260×105mm
    Caster wheel size 100×50mm 100×50mm 130×55mm 130×55mm
    Drive and front wheel material Polyurethane
    Caster wheel material Rubber Polyurethane
    Electrical components
    Drive motor type AC series motor
    Rated output 1.5kW 3kW 3kW 3kW
    Voltage 24V 24V 24V 24V
    Battery
    Capacity 210Ah 240Ah 240Ah 240Ah
    Weight 195kg 222kg 222kg 222kg
    STB20/30/40/50 Stand-On Electric Tow Tractor (Electric Tugger)
    Features
    • Stand-on design with a control handle for smooth steering and precise speed adjustment
    • Compact body and small turning radius which is suitable for narrow aisles and confined spaces
    • Practical for frequent get-on-and-off operations such as order picking, delivery, and short-distance transport
    • Designed for light-duty towing tasks, easy to control and dependable in daily use
