Specifications
| Model | TL1500 | TL1800 | TL2000 |
| Engine | Yunnei YN25GB | Yunnei YN27GB | Yunnei YN33GBZ |
| Rated power | 37kW | 42kW | 65kW |
| Optional engine | Changchai/Yunnei/Kohler/Cummins | Changchai/Yunnei/Kohler/Cummins | Cummins/Changchai/Kohler/Cummins |
| Overall length | 5800mm | 5800mm | 6500mm |
| Overall width | 1800mm | 1900mm | 2000mm |
| Overall height | 2700mm | 2800mm | 2800mm |
| Max. discharge height | 4400mm | 4400mm | 4400mm |
| Min. discharge height | 3400mm | 3400mm | 3400mm |
| Transmission | Gearbox + hydraulic converter + drive shaft + hub reduction axle | Gearbox + hydraulic converter + drive shaft + hub reduction axle | Gearbox + hydraulic converter + drive shaft + hub reduction axle |
| Bucket capacity | 0.65m³ | 0.75m³ | 1m³ |
| Max. load | 1500kg | 1800kg | 2000kg |
| Steering system | Articulated hydraulic steering | Articulated hydraulic steering | Articulated hydraulic steering |
| Driving mode | Four wheel drive | Four wheel drive | Four wheel drive |
| Hydraulic quick release | Yes | Yes | Yes |
| Mechanical joystick | Yes | Yes | Yes |
| Steady rise | Yes | Yes | Yes |
| Brake system | Four wheel disc brake | Four wheel disc brake | Four wheel disc brake |
| Parking brake | Disc brake | Disc brake | Disc brake |
| Tire | 20.5-16 Width: 300mm Diameter: 920mm | 23.5/70-16 Width: 330mm Diameter: 920mm | 16/70-20 Width: 380mm Diameter: 1075mm |
| Wheelbase | 2500mm | 2500mm | 2550mm |
| Track | 1500mm | 1550mm | 1600mm |
| System pressure | 16MPa | 16MPa | 20MPa |
| Weight | 4200kg | 4500kg | 5500kg |
Note:
With ongoing technological advancements, product specifications and configurations are subject to change without prior notice. In case of any uncertainty, the final confirmation provided by our international trade sales team shall prevail.
Features

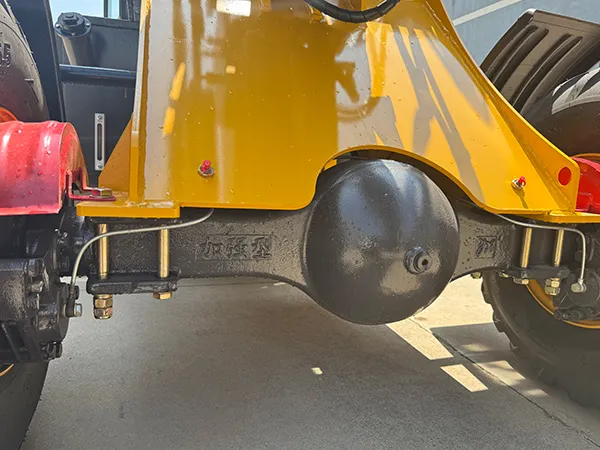

Reinforced drive axle for load capacity and off-road performance
- Equipped with dust-proof oil seals and a lubrication pipeline for durability.
- The axle adopts a thickened double U-shaped welded structure, increasing overall strength for heavy-duty applications.

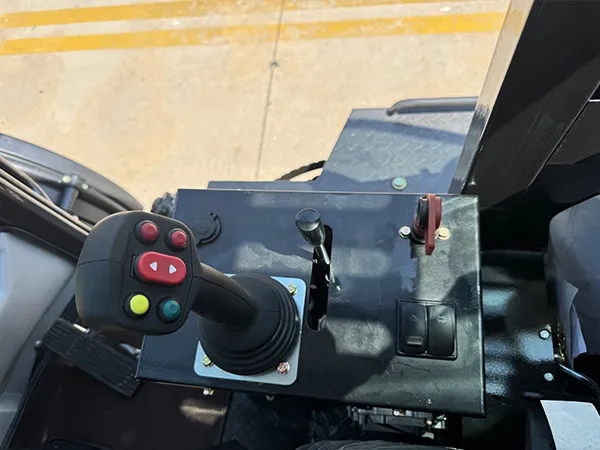

Multi-functional control console
- Electro-proportional multifunction joystick integrates control for lifting, extension, and auxiliary attachments.
- Centrally positioned mechanical lever enables gear or working mode selection.
- Side control panels include power switches, ignition, and auxiliary function buttons (e.g., front/rear hydraulics or quick coupler).

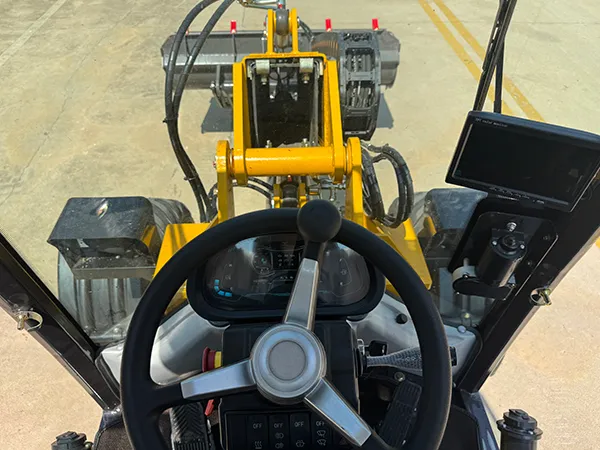

Cabin and instrumentation
- LCD dashboard provides real-time data on machine status, including oil temperature, water temperature, speed, and operating hours.
- Multi-function camera monitor improves rear visibility and loading safety.
- Three-spoke steering wheel with emergency stop and functional switches offers ergonomic and intuitive operation.
Application Recommendations & Working Scenarios
- Farm operations: Ideal for loading and transporting feed, hay bales, and other agricultural materials.
- Construction sites: Suitable for handling gravel, mortar, wooden planks, and general material transport.
- Municipal projects: Efficient for loading, unloading, and transfer tasks in confined or narrow spaces.
- Forestry and attachment change applications: Can be quickly fitted with various attachments such as log grapples, snow plows, and bale clamps for versatile operation.
