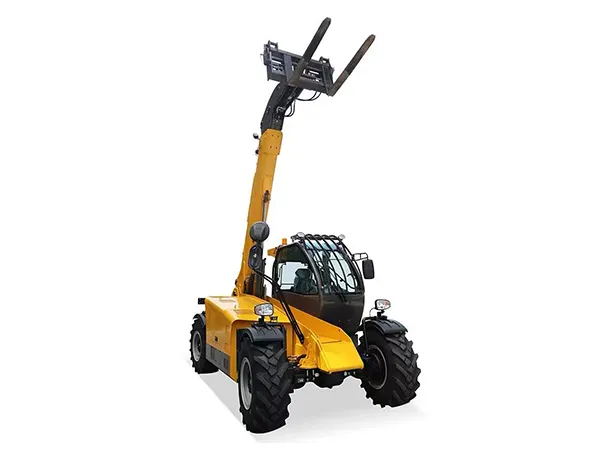

Telescopic Handler
  • Telescopic Handler
    TH735 Telescopic Handler (with 7m Telescopic Arm)
  • Telescopic Handler
  • Telescopic Handler
    TH1030 Telescopic Handler (with 10m Telescopic Arm)
  • Telescopic Handler
    TH1440 Telescopic Handler (with 14m Telescopic Arm)
  • Telescopic Handler
    TH1840 Telescopic Handler (with 18m Telescopic Arm)

    • Telescopic Handler

    Off-road forklift truck with rated load capacity options of 5000kg, 7000kg and 10000kg

    • Rated power
      76.7-92kW
    • Max. lifting capacity
      3000-4500kg
    • Max. lifting capacity at maximum reach
      2800-3200kg
    • Load capacity at maximum boom extension
      500-1500kg
    Request a Quote
    Specifications
    Model TH735 TH1030 TH1440 TH1840
    Engine
    Model Yunnei 4102 Yunnei 4102 Cummins 4BT3.9-C125 Cummins 4BT3.9-C125
    Rated power 76.7kW 76.7kW 92kW 92kW
    Type Four stroke, diesel engine Four stroke, diesel engine Four stroke, diesel engine Four stroke, diesel engine
    Displacement 3760L 3760L 3910L 3910L
    Performance
    Max. lifting capacity 3500kg 3000kg 4500kg 4000kg
    Max. lifting capacity at maximum reach 2800kg 2500kg 3200kg 2500kg
    Load capacity at maximum boom extension 1100kg 500kg 1500kg 850kg
    Max. lifting height 7000mm 10000mm 14000mm 17550mm
    Max. horizontal boom extension 3300mm 5900mm 9450mm 1300mm
    Gradeability 30% 30% 30% 30%
    Machine weight 8500kg 9500kg 11500kg 12500mm
    Max. speed 40km/h 40km/h 40km/h 40km/h
    Differential - Axles
    Driving model 4WS, crab steering, 2WS 4WS, crab steering, 2WS 4WS, crab steering, 2WS 4WS, crab steering, 2WS
    Front axle Rigid Rigid Rigid Rigid
    Rear axle Oscillating Oscillating Oscillating Oscillating
    Moving brake Service air brake (disc) on the 4 wheels with double hydraulic system Service air brake (disc) on the 4 wheels with double hydraulic system Service air brake (disc) on the 4 wheels with double hydraulic system Service air brake (disc) on the 4 wheels with double hydraulic system
    Parking brake Negative parking brake Negative parking brake Negative parking brake Negative parking brake
    Tires 405/70-20 405/70-20 405/70-24 405/70-24
    Dimensions (see dimension drawing in PDF)
    Length (without fork) D 5300mm 5300mm 6100mm 6100mm
    Height F 2300mm 2300mm 2480mm 2480mm
    Width H 2150mm 2150mm 2300mm 2300mm
    Shaft distance B1 2950mm 2950mm 3150mm 3150mm
    Tire distance G 1760mm 1760mm 1900mm 1900mm
    Cabin width E 910mm 910mm 910mm 910mm
    Ground clearance A 370mm 370mm 370mm 370mm
    Front tires to rear chassis C 4050mm 4050mm 4600mm 4600mm
    Optional Features
    • Overloading warning & limitation system
    • Tiltable chassis (+-6°)
    • Side shift
    • Fork positioner
    • Raisable cabin
    • Large bucket for bulk materials
    • Standard bucket for construction tasks
    • Multiple working platforms (Foldable working platform, swing working platform etc.)
    • Wide range of attachments available, such as lifting hook, log grapple, auger, mixing bucket, tilted fork, 4-in-1 bucket, winch, bale clamp, and manipulator

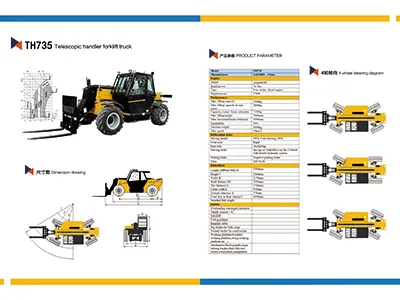

    • Optional FeaturesTH735

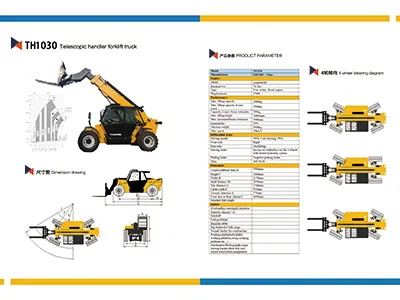

    • Optional FeaturesTH1030

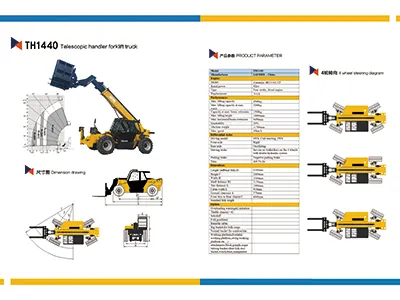

    • Optional FeaturesTH1440

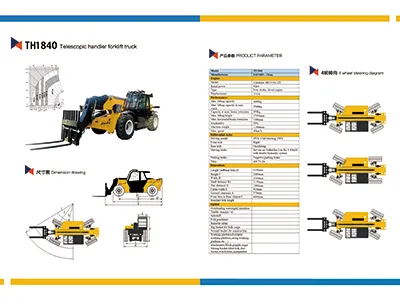

    • Optional FeaturesTH1840
