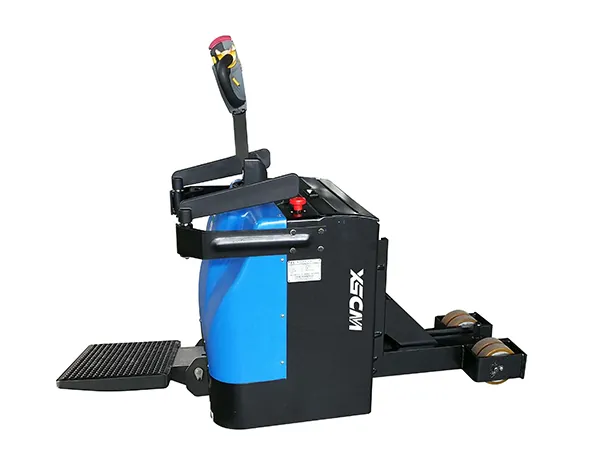

STB30B Stand-On Electric Tow Tractor (Electric Tugger)
Electric tugger with towing capacity of up to 3000kg
- Drive type
rear-wheel electric drive - Towing speed (loaded/unloaded)
6-12 km/h - Minimum turning radius
1.5-2.2 m - Driving mode
sit-down type with steering wheel - Operating time per charge
6-8 hours
Applications: factories, airports, and warehouses requiring long-distance or multi-trailer towing
Specifications
| Performance | Max. tow capacity | 3000kg |
| Max. lifting height, H1 | 280mm | |
| Service weight (with battery) | 670kg | |

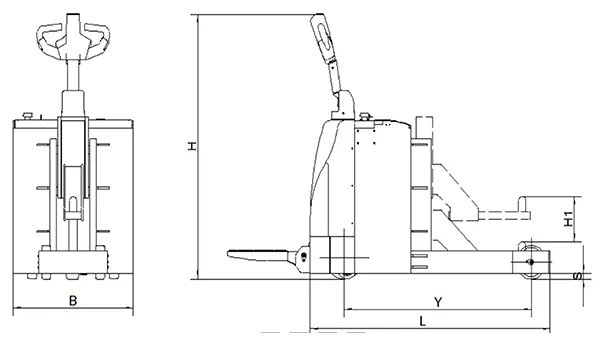

| Dimensions | Overall length of frame, L | 1467mm |
| Overall width of frame, B | 735mm | |
| Handle height, H | 1410mm | |
| Min. ground clearance, S | 30mm | |
| Wheelbase, Y | 1145mm | |
| Min. turning radius (without platform) | 1370mm | |
| Min. turning radius (with platform) | 1880mm | |
| Tire | Front wheel | 180×55mm |
| Drive wheel | 230×75mm | |
| Caster wheel | 130×55mm | |
| Wheel material | Polyurethane | |
| Electrical Components | Drive motor type | AC series motor |
| Rated output | 1.5kW | |
| Battery | Voltage | 24V |
| Capacity | 210Ah | |
| Weight | 195kg |
Features
- The reinforced towing arms are built to handle heavier loads with solid traction and lasting strength.
- A multifunctional handle makes steering and speed control smooth and intuitive during operation.
- Rear-wheel drive delivers strong pulling power, especially when towing multiple trailers or dense materials.
- The design includes a stable chassis, emergency stop button, and anti-collision protection to keep operation safe and steady.
Are your forklifts suitable for food processing facilities?
Are your forklifts suitable for food processing facilities?
Our forklifts are built to meet high safety and quality standards, featuring long battery life and reliable performance. They can be used both indoors and outdoors across different surface conditions, making them ideal for food processing and related operations.
Which forklift truck is best suited for the construction industry?
Which forklift truck is best suited for the construction industry?
Our rough terrain diesel forklifts are designed for demanding construction environments. Equipped with high-torque diesel engines, they deliver strong power and stability on challenging surfaces such as sand, mud, and gravel.
Can the forklifts operate on uneven or rough terrain?
Can the forklifts operate on uneven or rough terrain?
The forklifts are engineered for heavy-duty performance, with powerful diesel engines and superior traction. The ground clearance exceeds 300 mm, and the four-wheel drive system provides over 30% climbing capability, ensuring reliable operation on unpaved surfaces such as forestry sites, mines, and construction areas.
