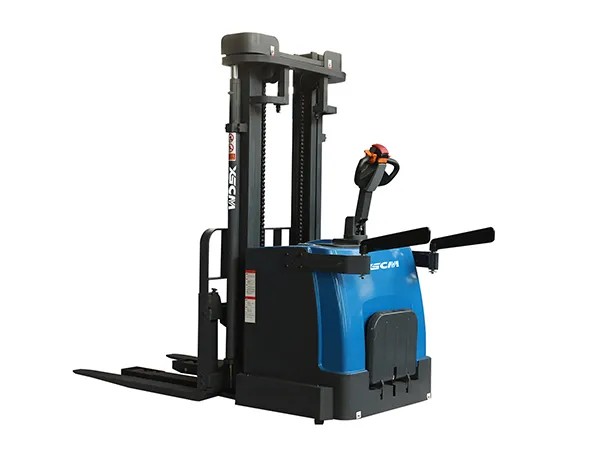

STD30N Stand-On Electric Pallet Stacker
Electric stacker with stand-on platform for lifting loads of up to 3000kg
- Drive type
electric, stand-on platform configuration - Maximum lifting height
2500 mm - Load center
500 mm - Maximum load capacity
3000 kg
This stand-on electric pallet stacker is designed to handle heavy pallets smoothly and safely. Its strong lifting performance and stable travel control make it a practical choice for busy warehouses and logistics operations handling high-volume loads.
Specifications
| Max. load capacity | 3000kg |
| Load center | 500mm |
| Max. lifting height | 2500mm |
| Travel speed (without load) | 6km/h |
| Travel speed (with load) | 5.2km/h |
| Lifting speed (with load) | 107mm/s |
| Lifting speed (without load) | 62mm/s |
| Lowering speed (without load) | 54mm/s |
| Lowering speed (with load) | 52mm/s |
| Gradeability (without load) | 7 % |
| Gradeability (with load) | 6 % |
| Service weight (with battery) | 1696kg |
Dimensions
| Overall length of frame | 2169mm |
| Overall length of frame (with platform) | 2585mm |
| Overall width of frame | 1046mm |
| Overall height when mast lowered to lowest | 1934mm |
| Overall height when mast lifted to highest | 3513mm |
| Wheelbase | 1570mm |
| Fork length | 1070mm |
| Fork outside width | 905mm |
| Fork inside width | 655mm |
| Fork thickness | 45mm |
| Fork height when fork lowered to lowest | 70mm |
| Min. ground clearance | 45mm |
| Theoretical width of minimum aisle for right-angle stacking (1200×1000) | 2550mm |
| Min. turning radius (without platform) | 1893mm |
| Min. turning radius (with platform) | 2275mm |
Tire
| Front wheel size | 85×85mm |
| Drive wheel size | 260×105mm |
| Caster wheel size | 130×55mm |
| Wheel material | Polyurethane |
Electrical Components
| Drive motor type | AC series motor |
| Drive motor power | 3kW |
| Lift motor type | DC series motor |
| Lift motor power | 3kW |
Battery
| Voltage | 24V |
| Capacity | 210Ah |
| Weight | 195kg |
Mast
| Simplex or duplex mast (2 stage) | Max. fork height | Mast lowered height | Mast extended height |
| 2500mm | 1934mm | 3513mm | |
| 3000mm | 2184mm | 4023mm | |
| 3500mm | 2434mm | 4533mm | |
| 4000mm | 2684mm | 5043mm |
