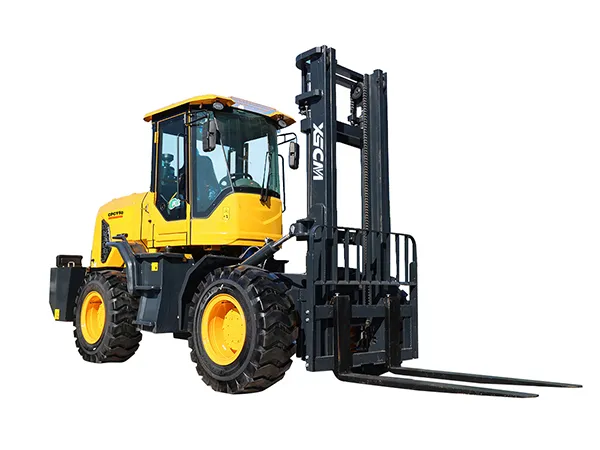

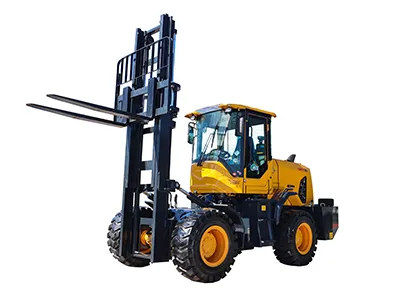

CPCY50/70/100 Rough Terrain Forklift
Off-road forklift truck with rated load capacity options of 5000kg, 7000kg and 10000kg
- Rated load capacity
5000-10,000kg - Load center distance
500-600mm - Wheelbase
2360mm - Total machine weight
7000-9310kg
Specifications
| Model | CPCY50 | CPCY70 | CPCY100 |
| Rated load capacity | 5000kg | 7000kg | 10,000kg |
| Load center distance | 500mm | 600mm | 600mm |
| Wheelbase | 2360mm | 2360mm | 2320mm |
| Total machine weight | 7000kg | 8200kg | 9310kg |
| Tire | 16/70-20 high-pressure tires | 16/70-20 | Front 4, rear 2, 11.00-20 pneumatic tires |
| Track width | 1735mm | 1735mm | 1860mm |
| Engine | National IV 4102 turbocharged | 4102 pressurized | National IV 4102 turbocharged |
| Rated power | 36.8kW | 36.8kW | 36.8kW |
| Dimensions (L×W×H) | 4750×2120×2820mm | 4750×2120×2820mm | 6020×2000×2900mm |
| Ground clearance | 230mm | 230mm | 240mm |
| Gantry tilt angle | Front 6°, rear 12° | Front 6°, rear 12° | Front 10°, rear 12° |
| Standard lifting height | 3000mm | 3000mm | 3000mm |
| Fork length | 120×1500mm | 150×1500mm | 150×1500mm |
| Min. turning radius | 2650mm | 2650mm | 2650mm |
Features
- Built with a high ground clearance chassis and wide off-road tires, ensuring excellent traction and stability on uneven ground.
- Lifting height up to 4.5 meters allows safe and steady handling of heavy loads even on challenging terrain.
- The fully enclosed cabin can be equipped with heating, air conditioning, reversing camera, LED lights, and ROPS protection frame for enhanced comfort and safety.
- All cabins are FOPS-certified (Falling Object Protective Structure) to safeguard operators from potential falling objects during operations.
- The mast plunger is equipped with an HVF hydraulic fuse, which automatically reduces mast drop speed in case of hydraulic hose failure, preventing cargo damage or equipment accidents.
- The automatic mast descent valve lowers lifting capacity above 15 feet, maintaining load balance and preventing overturning caused by overloading or uneven weight distribution.
- The MYZG LiveLink telematics system provides real-time location feedback and geofencing alerts, helping monitor operating range and preventing unauthorized movement or theft.
- Factory-installed anti-theft devices feature dual security settings (key or keypad). The system automatically arms itself after engine shutdown, effectively reducing theft risk.
Optional attachments
-

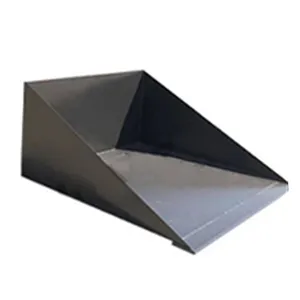

Flat bucket -

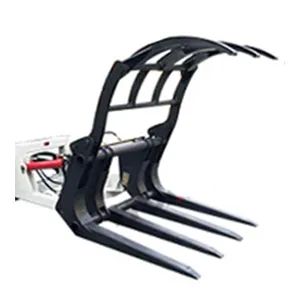

Log grapple -

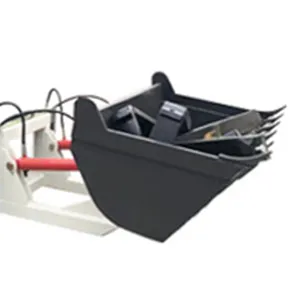

Bucket -
Forward tilting forks -

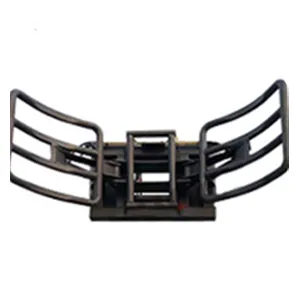

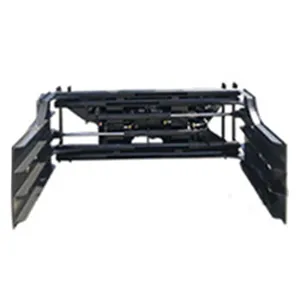

Round bale clamp -
Square bale clamp
Are your forklifts suitable for food processing facilities?
Are your forklifts suitable for food processing facilities?
Our forklifts are built to meet high safety and quality standards, featuring long battery life and reliable performance. They can be used both indoors and outdoors across different surface conditions, making them ideal for food processing and related operations.
Which forklift truck is best suited for the construction industry?
Which forklift truck is best suited for the construction industry?
Our rough terrain diesel forklifts are designed for demanding construction environments. Equipped with high-torque diesel engines, they deliver strong power and stability on challenging surfaces such as sand, mud, and gravel.
Can the forklifts operate on uneven or rough terrain?
Can the forklifts operate on uneven or rough terrain?
The forklifts are engineered for heavy-duty performance, with powerful diesel engines and superior traction. The ground clearance exceeds 300 mm, and the four-wheel drive system provides over 30% climbing capability, ensuring reliable operation on unpaved surfaces such as forestry sites, mines, and construction areas.
