A05 Electric Forklift
A10 Electric Forklift
A18 Electric Forklift

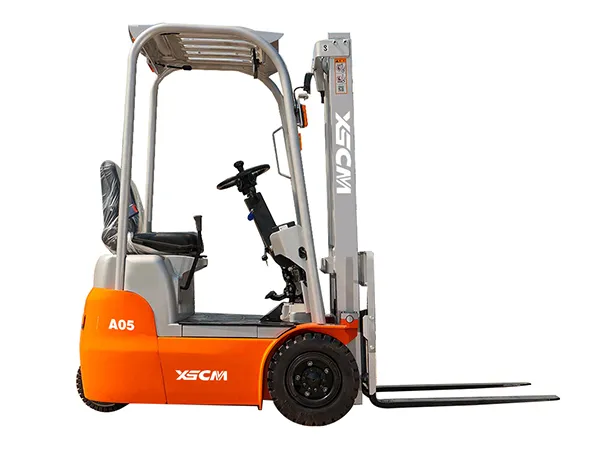

A05/10/18 Electric Forklift
Lithium battery forklift truck with rated load capacity options of 500kg, 1000kg and 1800kg
- Rated load capacity
500-1800kg - Load center distance
400-500mm - Driving mode
Seated - Overall length (with forks)
2230-3100mm
Specifications
| Model | | | |
| Power type | Lithium battery | Lithium battery | Lithium battery |
| Rated load capacity | 500kg | 1000kg | 1800kg |
| Load center distance | 400mm | 400mm | 500mm |
| Driving mode | Seated | Seated | Seated |
| Overall length (with forks) | 2230mm | 2740mm | 3100mm |
| Overall length (without forks) | 1935mm | 1640mm | 2100mm |
| Overall width | 887mm | 910mm | 1100mm |
| Mast lowered height | 1820mm | 1765mm | 2060mm |
| Overhead guard height | 1820mm | 1925mm | 2010mm |
| Max. working height | 3188mm | 3403mm | 4050mm |
| Wheelbase | 970mm | 1135mm | 1315mm |
| Front overhang | 278mm | 285mm | 393mm |
| Rear overhang | 174mm | 235mm | 380mm |
| Front wheel track width | 784mm | 806mm | 960mm |
| Rear wheel track width | 250mm | 780mm | 955mm |
| Min. ground clearance | 80mm | 80mm | 120mm |
| Min. turning radius | 1285mm | 1760mm | 1800mm |
| Standard lifting height | 2500mm | 2800mm | 3000mm |
| Fork adjustment range | 152-782mm | 160-782mm | 160-1100mm |
| Mast tilt angle (front/rear) | 5°/6° | 5°/6° | 6°/12° |
| Max. lifting speed (no load) | 300mm/s | 320mm/s | 430mm/s |
| Max. lifting speed (full load) | 250mm/s | 250mm/s | 360mm/s |
| Max. travel speed (no load) | 11km/h | 12km/h | 15km/h |
| Max. travel speed (full load) | 10km/h | 11km/h | 14km/h |
| Max. gradeability (full load) | 15% | 15% | 15% |
| Total machine weight | 1220kg | 1800kg | 2910kg |
| Number of wheels | 2/2 | 2/2 | 2/2 |
| Tire type (front/rear) | Solid tire/solid tire | Solid tire/solid tire | Pneumatic tire/pneumatic tire |
| Tire size (front) | 4.00-8 | 5.00-8 | 6.50-10 |
| Tire size (rear) | 3.50-5 | 15×4 1/2-8 | 5.00-8 |
| Service brake | Hydraulic brake | Hydraulic brake | Foot brake |
| Parking brake | Manual brake | Manual brake | Manual brake |
| Drive motor power | 2kW | 3kW | 13kW |
| Hydraulic pump motor power | 2kW | 3kW | 13kW |
Features
- The electric forklift features a low center of gravity for enhanced stability. Equipped with an onboard charger, it allows for convenient charging anytime.
- Lithium-powered with no tailpipe emissions, ideal for clean industries like food, pharma, and indoor logistics.
- Quick charge in 2-3 hours; runtime up to 6-10 hours. Supports opportunity charging for high-efficiency operation.
- Small turning radius (as low as 1.35 m), perfect for narrow aisles, elevators, and container operations.
- Stepless speed control, electric steering, and electromagnetic braking provide smooth and safe handling.
- Maintenance-free LiFePO₄ battery, no acid or water refill needed, lifespan over 3000 cycles, lower long-term cost than lead-acid forklifts.
- Options & Customization
Mast Types: 2-stage/3-stage full free
Tires: Solid or pneumatic
Operation Type: Seated/Standing/Walk-behind

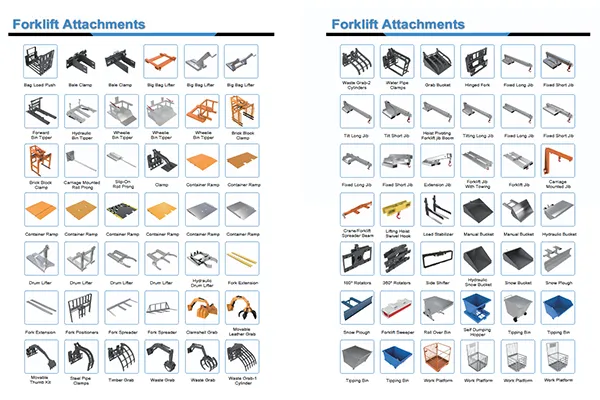

Optional Accessories
Roll clamp, lifting arm, carton clamp, rotating flat clamp, string rod, pusher, load stabilizer, weighing system, bucket, multi-purpose bucket clamp, side fork, hook, soft clamp, rotating fork, extended fork, oil drum clamp, fork extension sleeve, scrap fork, tilting fork, load ejector, etc.
Are your forklifts suitable for food processing facilities?
Are your forklifts suitable for food processing facilities?
Our forklifts are built to meet high safety and quality standards, featuring long battery life and reliable performance. They can be used both indoors and outdoors across different surface conditions, making them ideal for food processing and related operations.
Which forklift truck is best suited for the construction industry?
Which forklift truck is best suited for the construction industry?
Our rough terrain diesel forklifts are designed for demanding construction environments. Equipped with high-torque diesel engines, they deliver strong power and stability on challenging surfaces such as sand, mud, and gravel.
Can the forklifts operate on uneven or rough terrain?
Can the forklifts operate on uneven or rough terrain?
The forklifts are engineered for heavy-duty performance, with powerful diesel engines and superior traction. The ground clearance exceeds 300 mm, and the four-wheel drive system provides over 30% climbing capability, ensuring reliable operation on unpaved surfaces such as forestry sites, mines, and construction areas.
