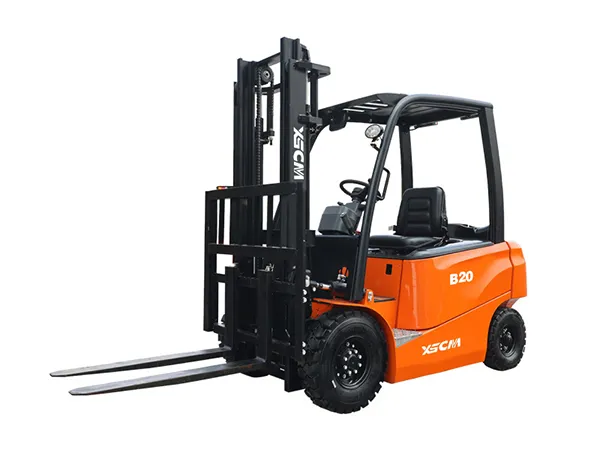

B20/30 Electric Forklift
  • B20/30 Electric Forklift
    B20 Electric Forklift
  • B20/30 Electric Forklift
    B30 Electric Forklift
  • B20/30 Electric Forklift
  • B20/30 Electric Forklift
  • B20/30 Electric Forklift

    • B20/30 Electric Forklift

    Lithium battery forklift truck with rated load capacity options of 2000kg and 3000kg

    • Rated load capacity
      2000-3000kg
    • Load center distance
      500mm
    • Driving mode
      Seated
    • Overall length (with forks)
      3290-3757mm
    Request a Quote
    Forklift Attachments
    Specifications
    Model B20 B30
    Power type Lithium battery Lithium battery
    Rated load capacity 2000kg 3000kg
    Load center distance 500mm 500mm
    Driving mode Seated Seated
    Overall length (with forks) 3290mm 3757mm
    Overall length (without forks) 2210mm 2682mm
    Overall width 1100mm 1232mm
    Mast lowered height 2010mm 2130mm
    Overhead guard height 2000mm 2070mm
    Max. working height 4110mm 4183mm
    Wheelbase 1520mm 1780mm
    Front overhang 370mm 455mm
    Rear overhang 380mm 464mm
    Front wheel track width 904mm 1005mm
    Rear wheel track width 958mm 988mm
    Min. ground clearance 110mm 110mm
    Standard lifting height 3000mm 3000mm
    Fork adjustment range 260-1100mm 260-1100mm
    Min. turning radius 2100mm 2450mm
    Mast tilt angle (front/rear) 5°/10° 6°/12°
    Max. lifting speed (no load) 325mm/s 380mm/s
    Max. lifting speed (full load) 250mm/s 300mm/s
    Max. travel speed (no load) 15km/h 14km/h
    Max. travel speed (full load) 14km/h 14km/h
    Max. gradeability (full load) 15% 15%
    Total machine weight 2820kg 3140kg
    Number of wheels Drive wheels/steering wheels 2/2 2/2
    Tire type (front/rear) Pneumatic tire/pneumatic tire Pneumatic tire/pneumatic tire
    Tire size (front) 6.50-10 28×9-15
    Tire size (rear) 5.00-8 6.50-10
    Brake system/service brake Foot brake Hydraulic brake
    Parking brake Hand brake Manual brake
    Battery voltage/capacity 80V 105Ah 80V 105Ah
    Drive motor power 8kW 13.1kW
    Hydraulic pump motor power 14kW 16.5kW
    Features
    • Delivers zero-emission operation, completely eliminating exhaust pollution. Ideal for indoor warehouses, food processing facilities, and environments with strict hygiene or environmental requirements.
    • The electric drive system ensures ultra-low noise, allowing smooth and quiet operation even in noise-sensitive areas such as residential zones, schools, or indoor logistics centers.
    • Simplified electric powertrain design reduces maintenance needs by eliminating engine and gearbox components, cutting material and labor costs while minimizing downtime.
    • Adjustable lifting height provides flexibility for various loading, unloading, and stacking applications from low-clearance areas to high-shelf storage, ensuring efficient and safe handling in all conditions.
    Optional Accessories

    Roll clamp, lifting arm, carton clamp, rotating flat clamp, string rod, pusher, load stabilizer, weighing system, bucket, multi-purpose bucket clamp, side fork, hook, soft clamp, rotating fork, extended fork, oil drum clamp, fork extension sleeve, scrap fork, tilting fork, load ejector, etc.
