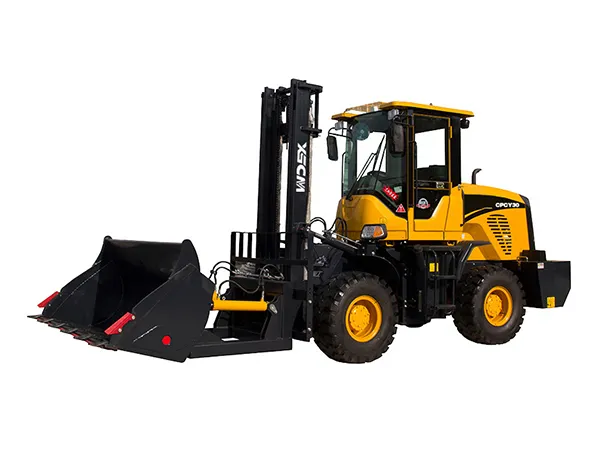

CPCY30/35/40 Rough Terrain Forklift
  • CPCY30/35/40 Rough Terrain Forklift
  • CPCY30/35/40 Rough Terrain Forklift
  • CPCY30/35/40 Rough Terrain Forklift
  • CPCY30/35/40 Rough Terrain Forklift
  • CPCY30/35/40 Rough Terrain Forklift

    • CPCY30/35/40 Rough Terrain Forklift

    Off-road forklift truck with rated load capacity options of 3000kg, 3500kg and 4000kg

    • Rated load capacity
      3000-4000kg
    • Total machine weight
      4610kg
    • Fork length
      1070-1200mm
    • Rated power
      36.8kW
    • Designed with a high chassis and wide off-road tires, providing excellent ground clearance and traction for rough terrain operations.
    • Lifting height up to 4.5 meters ensures stable handling of heavy loads even on uneven surfaces.
    • The fully enclosed cabin can be equipped with heating, air conditioning, a reversing camera, LED lights, and an ROPS safety frame, delivering both comfort and enhanced operational safety.
    Request a Quote
    Specifications
    Model CPCY30 CPCY35 CYCY40
    Rated load capacity 3000kg 3500kg 4000kg
    Total machine weight 4610kg 4610kg 4610
    Fork length 1070mm 1070mm 1200mm
    Engine model 490 National IV 495 Boast 4102 Boast
    Rated power 36.8kW 36.8kW 36.8kW
    Rated speed 2400r/min 2400r/min 2400r/min
    Dumping height 3000mm 3000mm 3000mm
    Min. turning radius 4400mm 4400mm 2680mm
    Gearbox type 265 high and low speed torque 265 high and low speed torque Hydraulic torque converter
    Dimensions (L×W×H) 5000×1900×2725mm 4150×2050×2725mm 5740×2130×2870mm
    Tire model 20.5/70-16 20.5/70-16 16/70-20
    Axle Wheel-side axle Wheel-side axle Wheel-side axle
    Optional attachments
    • CPCY30/35/40 Rough Terrain ForkliftFlat bucket

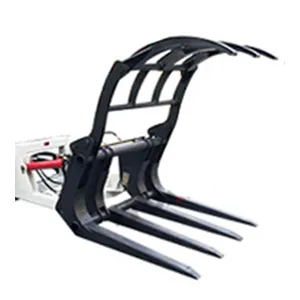

    • CPCY30/35/40 Rough Terrain ForkliftLog grapple
    • CPCY30/35/40 Rough Terrain ForkliftBucket

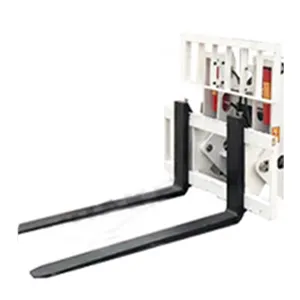

    • CPCY30/35/40 Rough Terrain ForkliftForward tilting forks

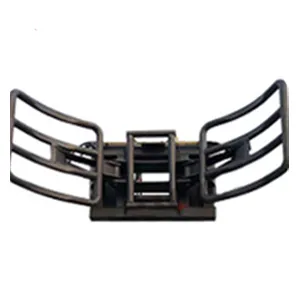

    • CPCY30/35/40 Rough Terrain ForkliftRound bale clamp

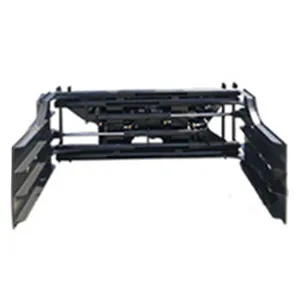

    • CPCY30/35/40 Rough Terrain ForkliftSquare bale clamp
    Contact Us
    Send Us Your Inquiry

    Tell us about your needs, our specialists will provide tailored recommendations and competitive quotes.

    Our forklifts are built to meet high safety and quality standards, featuring long battery life and reliable performance. They can be used both indoors and outdoors across different surface conditions, making them ideal for food processing and related operations.

    Our rough terrain diesel forklifts are designed for demanding construction environments. Equipped with high-torque diesel engines, they deliver strong power and stability on challenging surfaces such as sand, mud, and gravel.

    The forklifts are engineered for heavy-duty performance, with powerful diesel engines and superior traction. The ground clearance exceeds 300 mm, and the four-wheel drive system provides over 30% climbing capability, ensuring reliable operation on unpaved surfaces such as forestry sites, mines, and construction areas.
