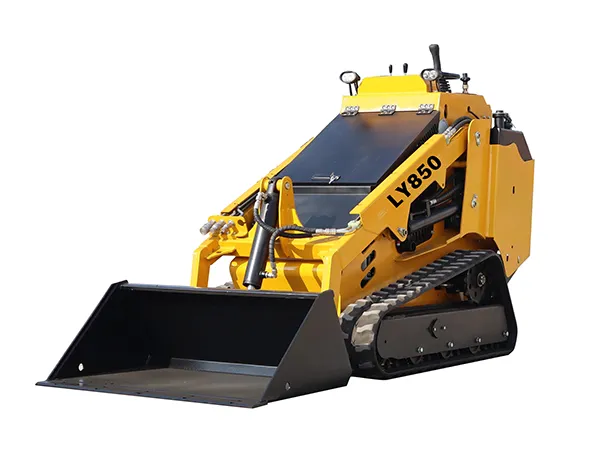

LY850 Mini Skid Steer Loader
Mini track loader with rated operating capacity of 400kg for construction operations in muddy or sandy sites
- Operating Weight
1330kg - Rated Load
400kg - Bucket Capacity
0.2m³ - Max. Speed
5.6km/h
- Track-driven structure: Provides superior traction and stability, allowing the loader to operate efficiently on soft, uneven, or slippery terrain such as mud, sand, and gravel.
- Excellent ground clearance and maneuverability: With a 258 mm ground clearance and a 29° approach angle, it easily overcomes obstacles. The overall height of 1685 mm enables smooth access through low building entrances and loading platforms.
Specifications
| Model | LY850 |
| Operating Weight | 1330kg |
| Rated Load | 400kg |
| Bucket Capacity | 0.2m³ |
| Max. Speed | 5.6km/h |
| Max. Traction | ≥12kN |
| Max. Breakout | ≥7kN |
| Lifting Time of Boom | 7s |
Engine
| Manufacturer | Kubota |
| Model | D1105 |
| Rated Power | 18.2kW/3000rpm |
| Engine Displacement | 1.123L |
| Emission standard | EU Stage V/EPA4 |

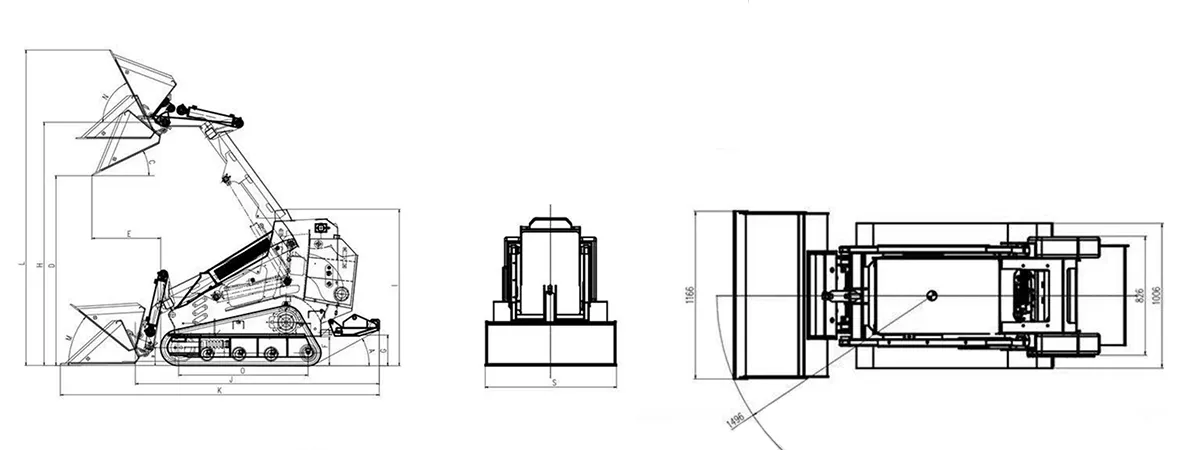

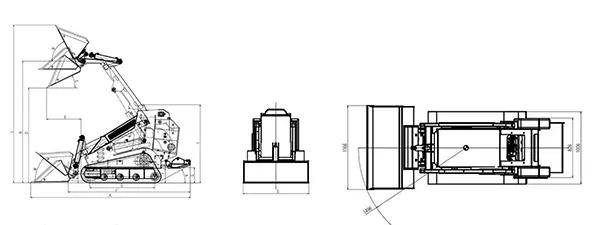

Dimensions
| A | Overall operating height | 2800mm |
| B | Height to bucket hinge pin | 2159mm |
| C | Height to top of cab | 1685mm |
| D | Height to bottom of level bucket | 2831mm |
| E | Overall length without bucket | 2165mm |
| F | Overall length with bucket | 2831mm |
| G | Dumping angle at maximum height | 30° |
| H | Dumping height | 1685mm |
| I | Dumping reach | 611mm |
| J | Rollback of bucket on ground | 30° |
| K | Rollback of bucket at full height | 103° |
| L | Wheelbase | 1149mm |
| M | Ground clearance | 258mm |
| N | Angle of departure | 29° |
| O | Front turning radius without bucket | 970mm |
| P | Front tuning radius | 1496mm |
| Q | Rear tuning radius | 1496mm |
| R | Rear axle to bumper | 910mm |
| S | Track width | 826mm |
| T | Width | 1006mm |
| U | Bucket width | 1166mm |
Optional attachment
Standard bucket
Deep bucket
Screening bucket
Quick coupler
Pallet forks
Auger
Snow plow blade
Log grapple
Round bale handler
Square bale handler
Flail mower
Lifting boom / Crane Attachment
