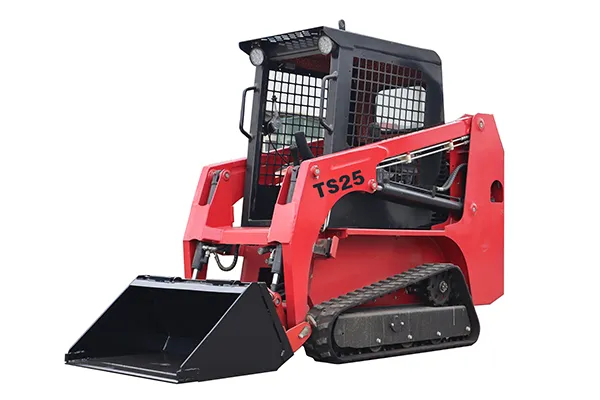

TS25 Skid Steer Loader
Compact track loader with rated operating capacity of 380kg for versatile works in confined areas
- Operating weight
1460kg - Rated load
380kg - Bucket capacity
0.2m³ - Max. speed
9km/h


                   | Model | TS25 |
| Operating weight | 1460kg |
| Rated load | 380kg |
| Bucket capacity | 0.2m³ |
| Max. speed | 9km/h |
| Max. traction | ≥12kN |
| Max. breakout | ≥7.3kN |
| Lifting time of boom | 7s |
Engine
| Manufacturer | Kubota |
| Model | D1105 |
| Rated power (/) | 18.2kW/3000rpm |
| Engine displacement | 1.123L |
| Emission standard | Euro V/EPA4 |
Dimensions
| Overall operating height | 3400mm |
| Height to bucket hinge pin | 2500mm |
| Height to top of cab | 1813mm |
| Height to bottom of level bucket | 2446mm |
| Overall length without bucket | 2200mm |
| Overall length with bucket | 2950mm |
| Dumping angle at maximum height | 40° |
| Dumping height | 2000mm |
| Dumping reach | 441mm |
| Rollback of bucket on ground | 30° |
| Rollback of bucket at full height | 103° |
| Wheelbase | 801mm |
| Ground clearance | 145mm |
| Angle of departure | 20° |
| Front turning radius without bucket | 960mm |
| Front turning radius | 1660mm |
| Rear turning radius | 1253mm |
| Rear axle to bumper | 910mm |
| Track width | 790mm |
| Width | 1080mm |
| Bucket width | 1100mm |
Standard bucket
Deep bucket
Screening bucket
Quick coupler
Pallet forks
Auger
Snow plow blade
Log grapple
Round bale handler
Square bale handler
Flail mower
Lifting boom / Crane AttachmentTell us about your needs, our specialists will provide tailored recommendations and competitive quotes.
