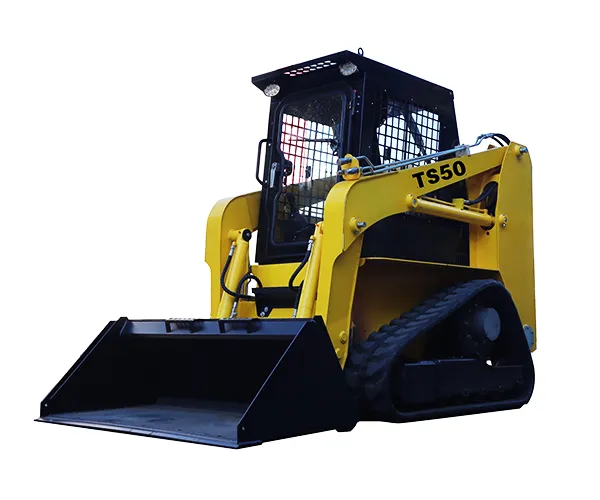

TS50 Skid Steer Loader

TS50 Skid Steer Loader

Compact track loader with rated operating capacity of 700kg for agriculture and municipal engineering tasks

  • Operating weight
    3000kg
  • Rated load
    700kg
  • Bucket capacity
    0.3m³
  • Max. speed
    10km/h
  • Rubber track system: Offers excellent off-road capability and stability, enabling smooth operation on uneven or soft terrain
  • Powerful engine: Equipped with a Xinchai C490BPG diesel engine, delivering strong performance and reliability for heavy-duty operations
Request a Quote
Specifications
Model TS50
Operating weight 3000kg
Rated load 700kg
Bucket capacity 0.3m³
Max. speed 10km/h
Max. traction ≥25.40kN
Max. breakout ≥18.4kN
Lifting time of boom 7s

Engine

Manufacturer Xinchai
Model C490BPG
Rated power 36.7kW/2650rpm
Engine displacement 2.27L
Emission standard China II

Dimensions

Overall operating height 3350mm
Height to bucket hinge pin 2450mm
Height to top of cab 2050mm
Height to bottom of level bucket 2285mm
Overall length without bucket 2300mm
Overall length with bucket 2950mm
Dumping angle at maximum height 40°
Dumping height 2100mm
Dumping reach 690mm
Rollback of bucket on ground 30°
Rollback of bucket at full height 104°
Wheelbase 1240mm
Ground clearance 140mm
Angle of departure 20°
Front turning radius without bucket 1310mm
Front turning radius 1881mm
Rear turning radius 1264mm
Rear axle to bumper 594mm
Track width 1102mm
Width 1402mm
Bucket width 1500mm
Optional attachment
  • Standard bucketStandard bucket
  • Deep bucketDeep bucket
  • Screening bucketScreening bucket
  • Quick couplerQuick coupler
  • Pallet forksPallet forks
  • AugerAuger
  • Snow plow bladeSnow plow blade
  • Log grappleLog grapple
  • Round bale handlerRound bale handler
  • Square bale handlerSquare bale handler
  • Flail mowerFlail mower
  • Lifting boom / Crane AttachmentLifting boom / Crane Attachment
