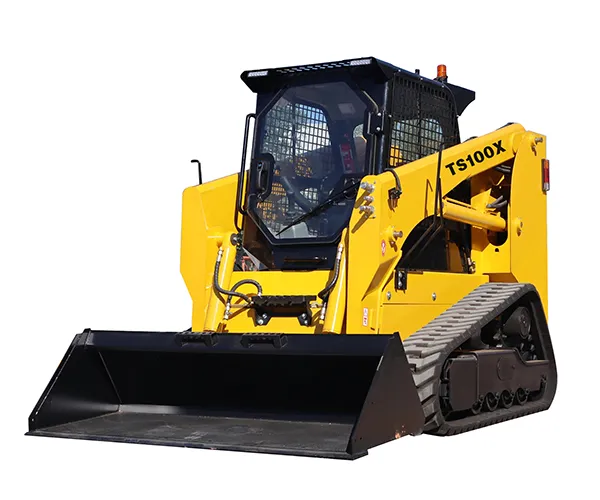

TS100X Skid Steer Loader

TS100X Skid Steer Loader

Compact track loader with rated operating capacity of 1200kg for construction operations in rugged terrains

  • Operating weight
    4800kg
  • Rated load
    1200kg
  • Bucket capacity
    0.6m³
  • Max. speed
    12/18km/h
  • High-strength rubber track system: Ensures exceptional ground traction, stability, and terrain adaptability, allowing reliable operation on uneven or rocky surfaces
  • Wide 2030 mm bucket design: Provides increased loading volume and higher operational efficiency, making it ideal for large-scale material handling tasks
Request a Quote
Specifications
Model TS100X
Operating weight 4800kg
Rated load 1200kg
Bucket capacity 0.6m³
Max. speed 12/18km/h
Max. traction >30kN
Max. breakout ≥ 20kN
Lifting time of boom 7s

Engine

Manufacturer Weichai
Model WP4.1
Rated power 74kW/2200rpm
Engine displacement 4.088L
Emission standard China III

Dimensions

Overall operating height 4070mm
Height to bucket hinge pin 3150mm
Height to top of cab 2160mm
Height to bottom of level bucket 2983mm
Overall length without bucket 3000mm
Overall length with bucket 3795mm
Dumping angle at maximum height 40°
Dumping height 2450mm
Dumping reach 700mm
Rollback of bucket on ground 30°
Rollback of bucket at full height 104°
Wheelbase 1500mm
Ground clearance 200mm
Angle of departure 20°
Front turning radius without bucket 1365mm
Front tuning radius 2439mm
Rear tuning radius 1617mm
Rear axle to bumper 938mm
Track width 1654mm
Width 1994mm
Bucket width 2030mm
Optional attachment
  • Standard bucketStandard bucket
  • Deep bucketDeep bucket
  • Screening bucketScreening bucket
  • Quick couplerQuick coupler
  • Pallet forksPallet forks
  • AugerAuger
  • Snow plow bladeSnow plow blade
  • Log grappleLog grapple
  • Round bale handlerRound bale handler
  • Square bale handlerSquare bale handler
  • Flail mowerFlail mower
  • Lifting boom / Crane AttachmentLifting boom / Crane Attachment
