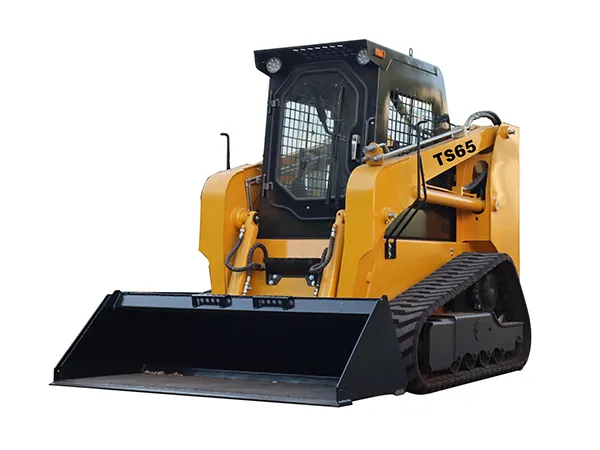

TS65 Skid Steer Loader
  • TS65 Skid Steer Loader
  • TS65 Skid Steer Loader

    • TS65 Skid Steer Loader

    Compact track loader with rated operating capacity of 1000kg for road repair and construction tasks

    • Operating weight
      4200kg
    • Rated load
      1000kg
    • Bucket capacity
      0.5m³
    • Max. speed
      12/18km/h
    • Rubber track system: Provides low ground pressure and strong traction, allowing excellent stability and maneuverability on soft or uneven surfaces
    • Dual-speed travel mode: Switchable 12/18 km/h speeds balance precise control for detailed work and faster travel for material transfer
    • Optimized working geometry: With a bucket hinge pin height of 2900 mm and a dumping height of 2230 mm, it is ideal for loading medium to large trucks and hoppers efficiently
    Request a Quote
    Specifications
    Model TS65
    Operating weight 4200kg
    Rated load 1000kg
    Bucket capacity 0.5m³
    Max. speed 12/18km/h
    Max. traction ≥28.20kN
    Max. breakout ≥20kN
    Lifting time of boom 7s

    Engine

    Manufacturer Xinchai
    Model C498BPG
    Rated power 55kW/2500rpm
    Engine displacement 3.17L
    Emission standard China II

    Dimensions

    Overall operating height 3871mm
    Height to bucket hinge pin 2900mm
    Height to top of cab 2150mm
    Height to bottom of level bucket 2730mm
    Overall length without bucket 2750mm
    Overall length with bucket 3500mm
    Dumping angle at maximum height 40°
    Dumping height 2230mm
    Dumping reach 715mm
    Rollback of bucket on ground 30°
    Rollback of bucket at full height 104°
    Wheelbase 1500mm
    Ground clearance 200mm
    Angle of departure 20°
    Front turning radius without bucket 1298mm
    Front turning radius 2010mm
    Rear turning radius 1714mm
    Rear axle to bumper 890mm
    Track width 1462mm
    Width 1782mm
    Bucket width 1830mm
    Optional attachment
    • Standard bucketStandard bucket
    • Deep bucketDeep bucket
    • Screening bucketScreening bucket
    • Quick couplerQuick coupler
    • Pallet forksPallet forks
    • AugerAuger
    • Snow plow bladeSnow plow blade
    • Log grappleLog grapple
    • Round bale handlerRound bale handler
    • Square bale handlerSquare bale handler
    • Flail mowerFlail mower
    • Lifting boom / Crane AttachmentLifting boom / Crane Attachment
