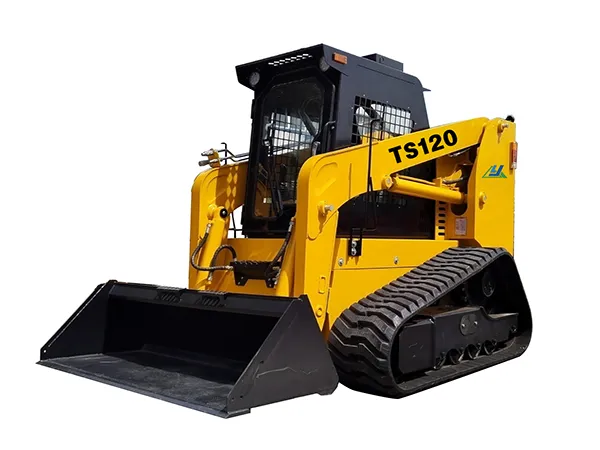

TS120 Skid Steer Loader
  • TS120 Skid Steer Loader
  • TS120 Skid Steer Loader
  • TS120 Skid Steer Loader

    • TS120 Skid Steer Loader

    Compact track loader with rated operating capacity of 1500kg for heavy construction, mining, and forestry applications

    • Operating weight
      5100kg
    • Rated load
      1500kg
    • Bucket capacity
      0.6m³
    • Max. speed
      12/18km/h
    Request a Quote
    Specifications
    Model TS120
    Operating weight 5100kg
    Rated load 1500kg
    Bucket capacity 0.6m³
    Max. speed 12/18km/h
    Max. traction >32kN
    Max. breakout ≥22kN
    Lifting time of boom 7s

    Engine

    Manufacturer Weichai
    Model WP4.1
    Rated power 103kW/2300rpm
    Engine displacement 4.088L
    Emission standard China III

    Dimensions

    Overall operating height 4070mm
    Height to bucket hinge pin 3150mm
    Height to top of cab 2160mm
    Height to bottom of level bucket 2983mm
    Overall length without bucket 3000mm
    Overall length with bucket 3795mm
    Dumping angle at maximum height 40°
    Dumping height 2450mm
    Dumping reach 700mm
    Rollback of bucket on ground 30°
    Rollback of bucket at full height 104°
    Wheelbase 1500mm
    Ground clearance 200mm
    Angle of departure 20°
    Front turning radius without bucket 1365mm
    Front turning radius 2200mm
    Rear turning radius 1742mm
    Rear axle to bumper 938mm
    Track width 1674mm
    Width 2124mm
    Bucket width 2134mm
    Optional attachment
    • Standard bucketStandard bucket
    • Deep bucketDeep bucket
    • Screening bucketScreening bucket
    • Quick couplerQuick coupler
    • Pallet forksPallet forks
    • AugerAuger
    • Snow plow bladeSnow plow blade
    • Log grappleLog grapple
    • Round bale handlerRound bale handler
    • Square bale handlerSquare bale handler
    • Flail mowerFlail mower
    • Lifting boom / Crane AttachmentLifting boom / Crane Attachment
