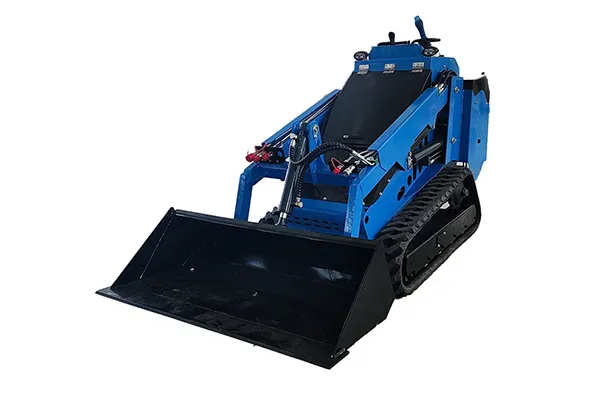

T750 Mini Skid Steer Loader
  • T750 Mini Skid Steer Loader
  • T750 Mini Skid Steer Loader
  • T750 Mini Skid Steer Loader
  • T750 Mini Skid Steer Loader
  • T750 Mini Skid Steer Loader

    • T750 Mini Skid Steer Loader

    Mini track loader with rated operating capacity of 400kg for agricultural, construction, and forestry applications

    • Rated operating capacity
      400kg
    • Max. operating capacity
      450kg
    • Max. breakout force
      4.5kN
    • Bucket capacity
      0.15m³
    Request a Quote
    Specifications
    Certification ISO, CE, EPA, EURO5
    Engine brand Electric/Laidong 385/Yanmar 380
    Rated power 8kW (72V, 200Ah)/18.6kW/18.4kW
    Number of cylinders 3
    Air intake way Naturally aspirated
    Emission standard EURO5/EPA
    Rated operating capacity 400kg
    Max. operating capacity 450kg
    Max. breakout force 4.5kN
    Bucket capacity 0.15m³
    Driving speed 0-6km/h
    Total cycle time 9s
    System operating pressure 25bar
    Fuel tank capacity 30L
    Operating weight 1200kg
    Track size (L×W×T) 180×72×45mm
    Vehicle height 1550mm
    Length with standard bucket 2700mm
    Vehicle width 970mm
    Length without standard bucket 2070mm
    Bucket width 1270mm
    Tail length 500mm
    Height at maximum extension 2920mm
    Height to the bucket pin 2300mm
    Max. height as lay the bucket flat 2140mm
    Dumping height 1700mm
    Discharge distance 500mm
    Track contact with ground length 1300mm
    Ground clearance 200mm
    Bucket flip angle on the ground 27°
    Bucket flip angle at highest position 114°
    Features

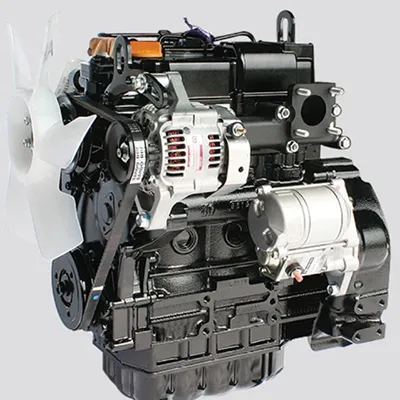

    • T750 Mini Skid Steer LoaderPowerful engine options: Equipped with a Yanmar 3TNV80 three-cylinder water-cooled diesel engine for reliable power output; Laidong 385 and electric drive systems are also available to meet varied working demands

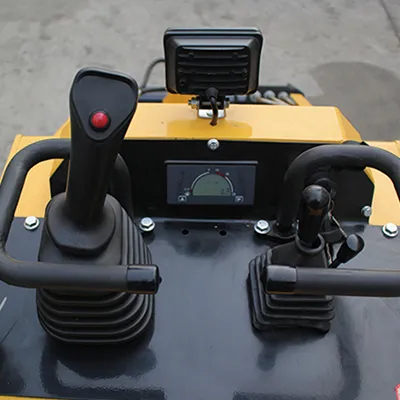

    • T750 Mini Skid Steer LoaderHydraulic pilot control system
    • T750 Mini Skid Steer LoaderHydraulic system

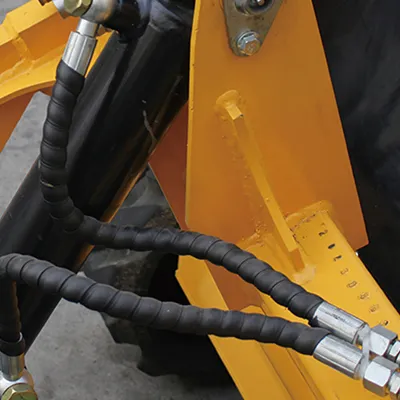

    • T750 Mini Skid Steer LoaderWear-resistant elastic hoses for durability and flexibility under demanding field conditions

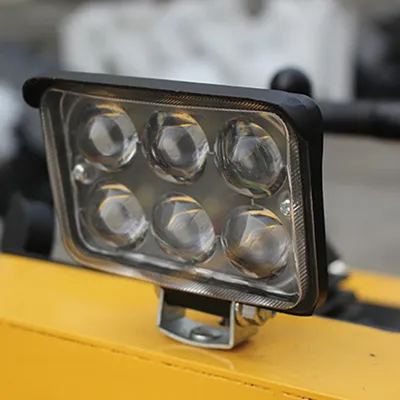

    • T750 Mini Skid Steer LoaderLED lighting system

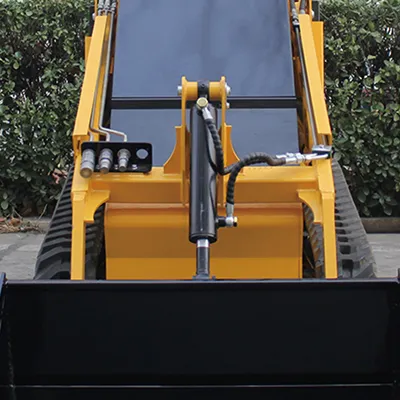

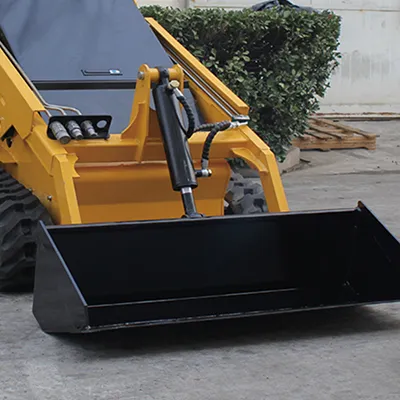

    • T750 Mini Skid Steer LoaderMulti-functional attachment interface that allows quick connection of different tools
    Optional attachment
    • Standard bucketStandard bucket
    • Deep bucketDeep bucket
    • Screening bucketScreening bucket
    • Quick couplerQuick coupler
    • Pallet forksPallet forks
    • AugerAuger
    • Snow plow bladeSnow plow blade
    • Log grappleLog grapple
    • Round bale handlerRound bale handler
    • Square bale handlerSquare bale handler
    • Flail mowerFlail mower
    • Lifting boom / Crane AttachmentLifting boom / Crane Attachment
    Instruction Manual

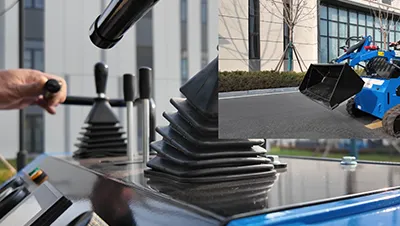

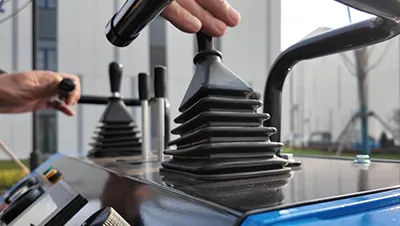

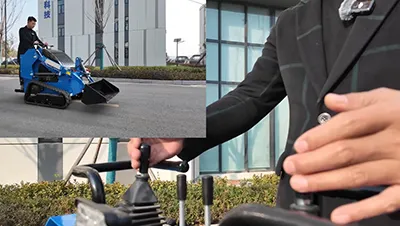

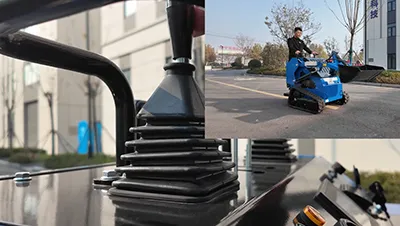

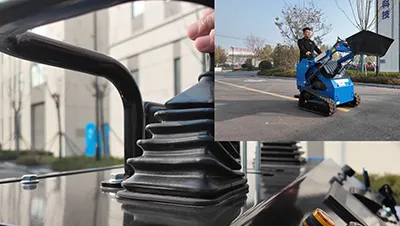

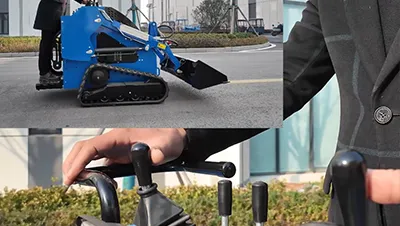

    • T460 Mini Skid Steer LoaderPush both control levers forward, the loader moves forward
    • T460 Mini Skid Steer LoaderPull both control levers backward, the loader moves backward
    • T460 Mini Skid Steer LoaderPush the left control lever left, the boom lifts
    • T460 Mini Skid Steer LoaderPush the left control lever right, the boom lowers
    • T460 Mini Skid Steer LoaderPush the right control lever left, the bucket dumps
    • T460 Mini Skid Steer LoaderPush the right control lever right, the bucket curls
    • T460 Mini Skid Steer LoaderPush one lever forward and pull the other backward, the loader performs a 360° turn in place
