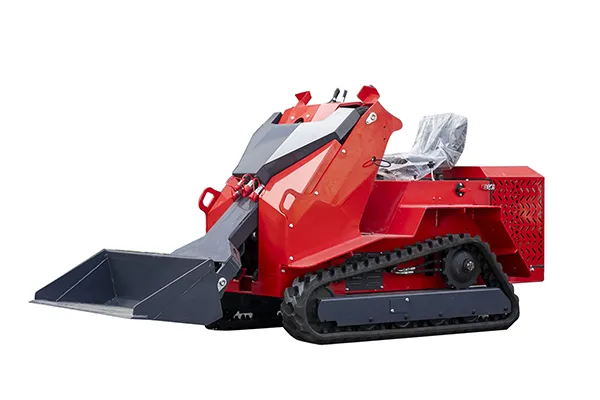

T490 Mini Skid Steer Loader
Mini track loader with rated operating capacity of 250kg for operation in confined job sites
- Rated operating capacity
250kg - Max. operating capacity
350kg - Max. breakout force
4.5kN - Bucket capacity
0.12m³
| Certification | ISO, CE, EPA, EURO5 |
| Engine brand | Electric/Koop/Runtong/B&S |
| Rated power | 8kW (72V, 200Ah)/15kW/19.2kW/17kW |
| Number of cylinders | 2 |
| Air intake way | Naturally aspirated |
| Emission standard | EURO5/EPA |
| Rated operating capacity | 250kg |
| Max. operating capacity | 350kg |
| Max. breakout force | 4.5kN |
| Bucket capacity | 0.12m³ |
| Driving speed | 0-6km/h |
| Total cycle time | 9s |
| System operating pressure | 17-21bar |
| Fuel tank capacity | 10L |
| Operating weight | 1200kg |
| Track size (L×W×T) | 180×72×45mm |
| Vehicle height | 1300mm |
| Length with standard bucket | 2700mm |
| Vehicle width | 1100mm |
| Length without standard bucket | 2300mm |
| Bucket width | 1050mm |
| Tail length | 500mm |
| Height at maximum extension | 2530mm |
| Height to the bucket pin | 1933mm |
| Max. height as lay the bucket flat | 1740mm |
| Dumping height | 1400mm |
| Discharge distance | 595mm |
| Track contact with ground length | 1350mm |
| Ground clearance | 230mm |
| Bucket flip angle on the ground | 27° |
| Bucket flip angle at highest position | 114° |

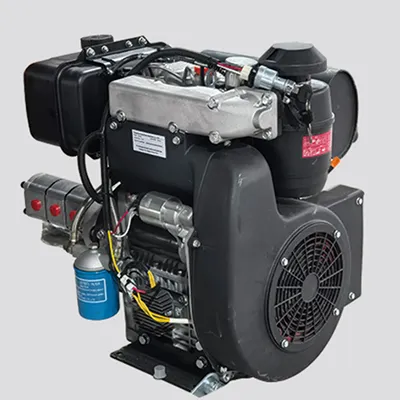

Multiple power configurations: Available with Koop 292, Runtong, or Briggs & Stratton engines, as well as an electric motor option, to suit different working environments

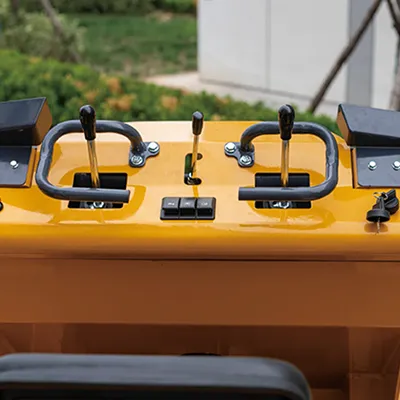

Operator control console

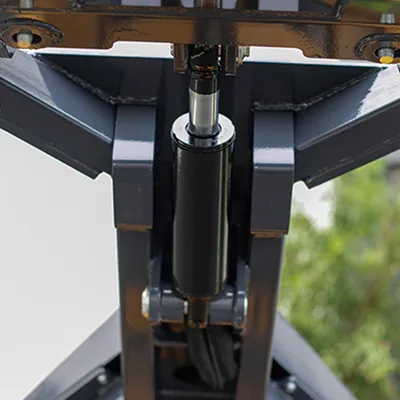

Hydraulic cylinder system

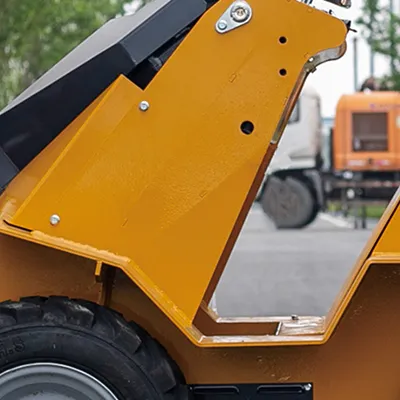

Concealed hydraulic hose design to protect the key components from dust and damage

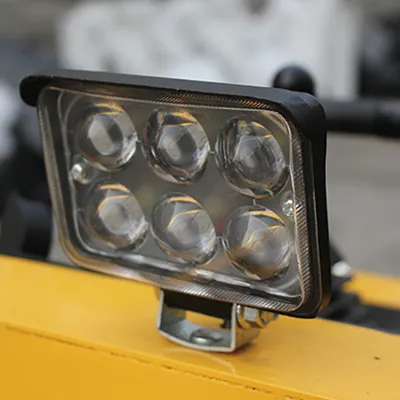

LED lighting system
Multi-functional attachment interface for compatibility with various tools

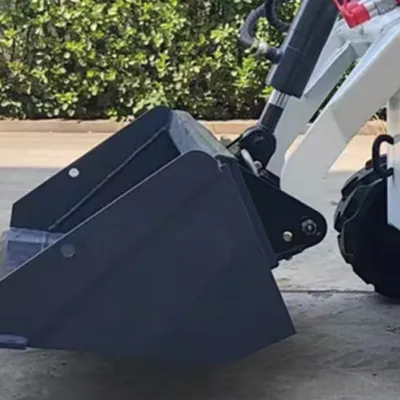

Standard bucket
Deep bucket
Screening bucket
Quick coupler
Pallet forks
Auger
Snow plow blade
Log grapple
Round bale handler
Square bale handler
Flail mower
Lifting boom / Crane Attachment
Push both control levers forward, the loader moves forward
Pull both control levers backward, the loader moves backward
Push the left control lever left, the boom lifts
Push the left control lever right, the boom lowers
Push the right control lever left, the bucket dumps
Push the right control lever right, the bucket curls
Push one lever forward and pull the other backward, the loader performs a 360° turn in placeTell us about your needs, our specialists will provide tailored recommendations and competitive quotes.
