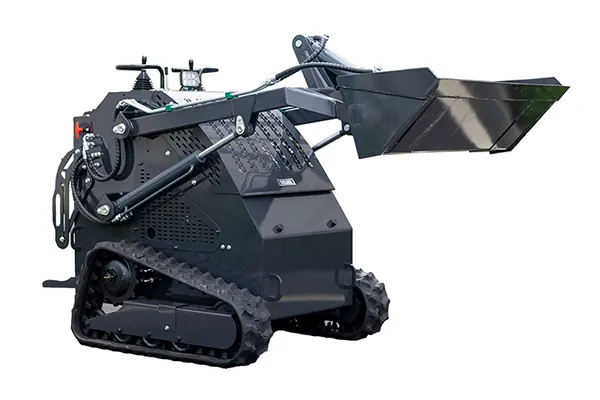

T460 Mini Skid Steer Loader
Mini track loader with rated operating capacity of 300kg for landscaping and road maintenance
- Rated operating capacity
300kg - Max. operating capacity
400kg - Max. breakout force
4.5kN - Bucket capacity
0.12m³
Specifications
| Certification | ISO, CE, EPA, EURO5 |
| Engine brand | Electric/Koop/Runtong/B&S |
| Rated power | 8kW (72V, 200Ah)/15kW/19.2kW/17kW |
| Number of cylinders | 2 |
| Air intake way | Naturally aspirated |
| Emission standard | EURO5/EPA |
| Rated operating capacity | 300kg |
| Max. operating capacity | 400kg |
| Max. breakout force | 4.5kN |
| Bucket capacity | 0.12m³ |
| Driving speed | 0-6km/h |
| Total cycle time | 9s |
| System operating pressure | 17-21bar |
| Fuel tank capacity | 10L |
| Operating weight | 1200kg |

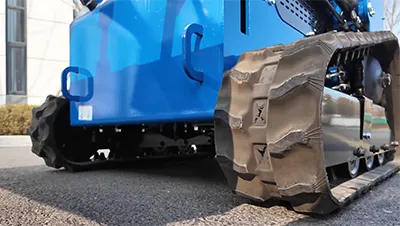

| Track size (L×W×T) | 180×72×35mm |
| Vehicle height | 1300mm |
| Length with standard bucket | 2140mm |
| Vehicle width | 1050mm |
| Length without standard bucket | 1850mm |
| Bucket width | 1050mm |
| Tail length | 500mm |
| Height at maximum extension | 2400mm |
| Height to the bucket pin | 1870mm |
| Max. height as lay the bucket flat | 1720mm |
| Dumping height | 1510mm |
| Discharge distance | 250mm |
| Track contact with ground length | 800mm |
| Ground clearance | 110mm |
| Bucket flip angle on the ground | 27° |
| Bucket flip angle at highest position | 114° |
Features
-

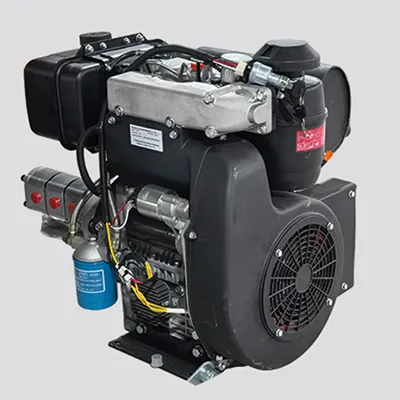

Multiple power configurations: Available with Koop 292, Runtong, or Briggs & Stratton engines, as well as an electric motor option, to meet various operating requirements -

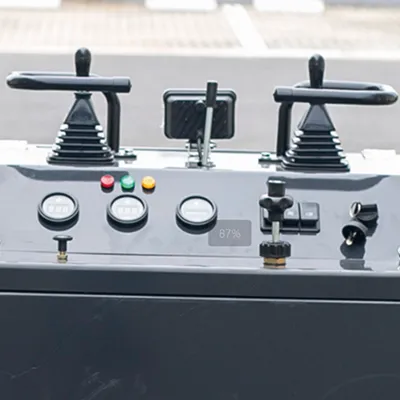

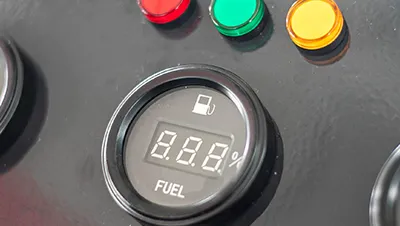

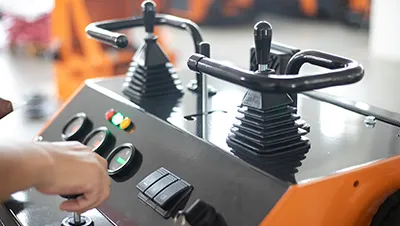

Centralized control console -

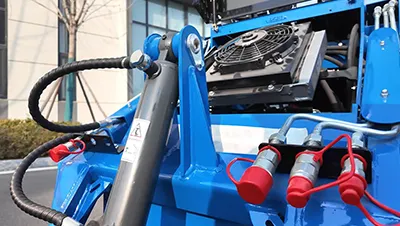

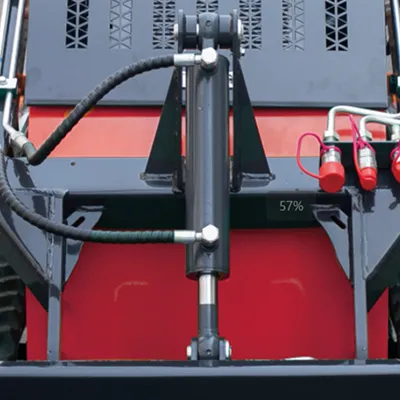

High-performance hydraulic cylinders -

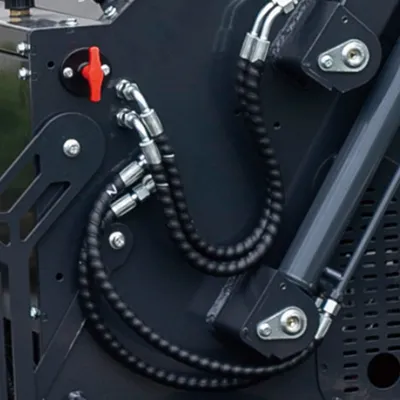

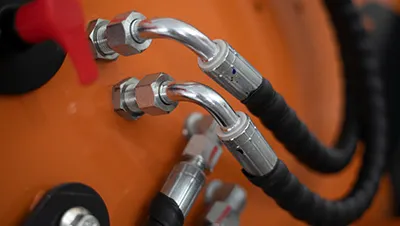

Wear-resistant hose system -

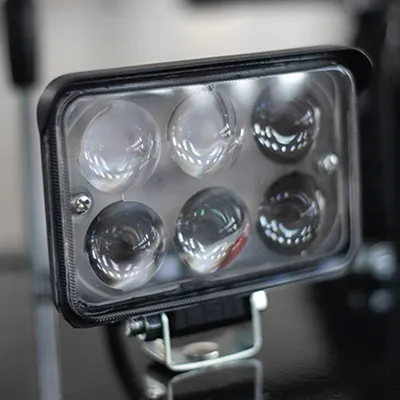

High-intensity LED lighting -

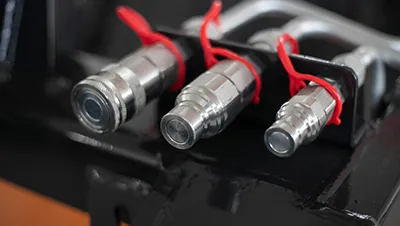

Quick-change attachment compatibility that supports a variety of tools
Optional attachment

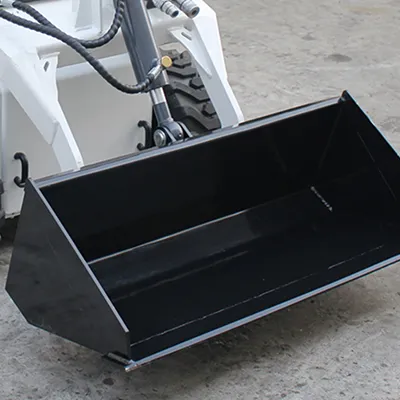

Standard bucket
Deep bucket
Screening bucket
Quick coupler
Pallet forks
Auger
Snow plow blade
Log grapple
Round bale handler
Square bale handler
Flail mower
Lifting boom / Crane Attachment
Detail Highlights
Instruction Manual
-
Push both control levers forward, the loader moves forward -
Pull both control levers backward, the loader moves backward -
Push the left control lever left, the boom lifts -
Push the left control lever right, the boom lowers -
Push the right control lever left, the bucket dumps -
Push the right control lever right, the bucket curls -
Push one lever forward and pull the other backward, the loader performs a 360° turn in place
