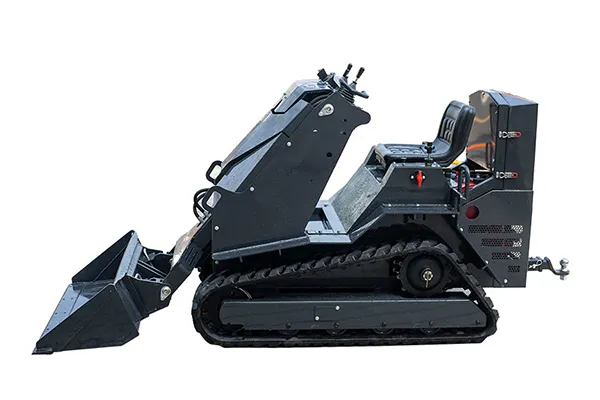

T390 Mini Skid Steer Loader
Mini track loader with rated operating capacity of 200kg for small-scale agricultural and construction projects
- Rated operating capacity
200kg - Max. operating capacity
300kg - Max. breakout force
3.5kN - Bucket capacity
0.12m³
Specifications
| Certification | ISO, CE, EPA, EURO5 |
| Engine brand | Electric/Koop/Runtong/Zhongzheng/B&S |
| Rated power | 6kW (72V, 125Ah)/7.5kW/8.6kW/8.5kW/9.9kW |
| Number of cylinders | 1 |
| Air intake way | Naturally aspirated |
| Emission standard | EPA/EURO5 |
| Rated operating capacity | 200kg |
| Max. operating capacity | 300kg |
| Max. breakout force | 3.5kN |
| Bucket capacity | 0.12m³ |
| Driving speed | 0-6km/h |
| Total cycle time | 9s |
| System operating pressure | 17bar |
| Fuel tank capacity | 5L |
| Operating weight | 1070kg |
| Track size (L×W×T) | 180×72×45mm |
| Vehicle height | 1250mm |
| Length with standard bucket | 2400mm |
| Vehicle width | 960mm |
| Length without standard bucket | 1900mm |
| Bucket width | 1050mm |
| Tail length | 220mm |
| Height at maximum extension | 2620mm |
| Height to the bucket pin | 2000mm |
| Max. height as lay the bucket flat | 1830mm |
| Dumping height | 1470mm |
| Discharge distance | 600mm |
| Track contact with ground length | 1300mm |
| Ground clearance | 230mm |
| Bucket flip angle on the ground | 27° |
| Bucket flip angle at highest position | 114° |
Features
-

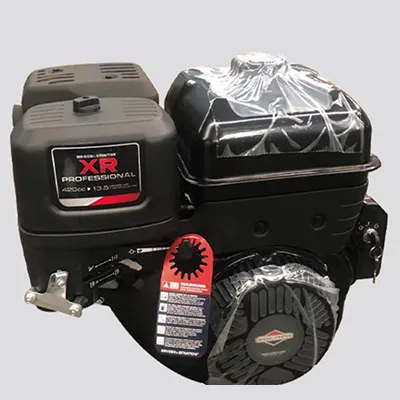

Multiple power options: Available with Koop, Runtong, or Briggs & Stratton engines, as well as an electric motor, meeting diverse operational needs -

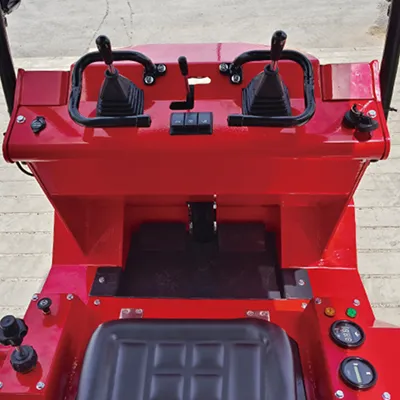

Centralized control panel -

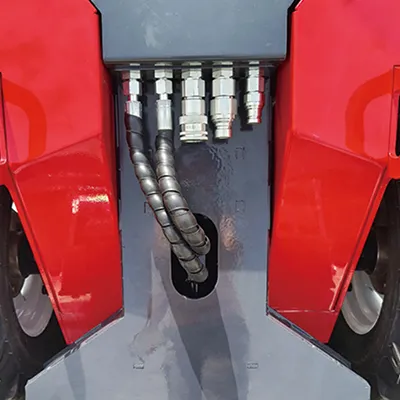

Hydraulic system -
Equipped with wear-resistant hydraulic hoses and elastic rubber parts for enhanced reliability and long service life -

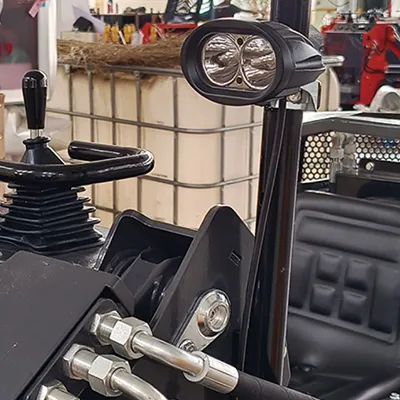

LED lighting system -

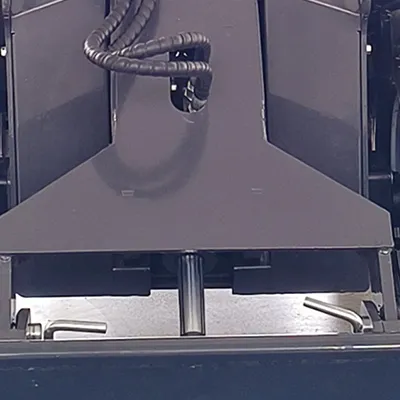

Multi-functional attachment interface that allows quick connection of various tools for different tasks
Optional attachment

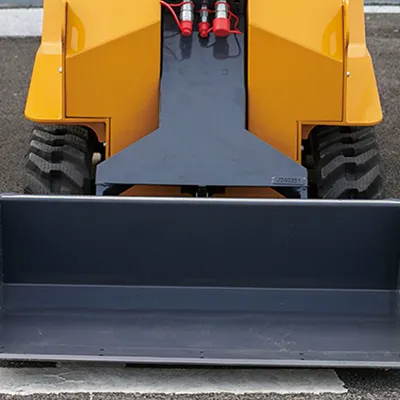

Standard bucket
Deep bucket
Screening bucket
Quick coupler
Pallet forks
Auger
Snow plow blade
Log grapple
Round bale handler
Square bale handler
Flail mower
Lifting boom / Crane Attachment
