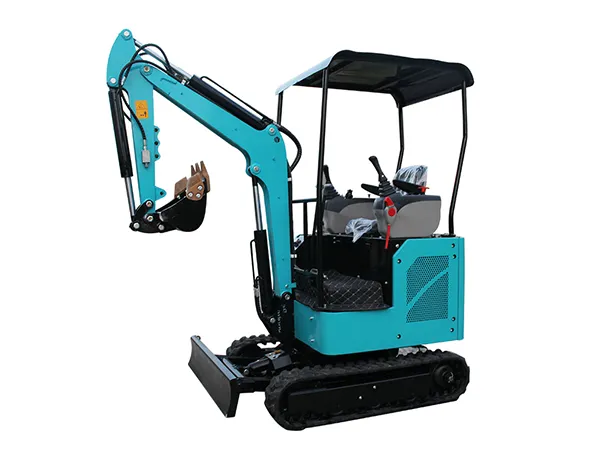

KV18/18PLUS Mini Crawler Excavator
Compact excavator with operating weight of 1500kg
- Bucket capacity
0.04m³ - Chassis width
1100-1400mm - Track length
1220mm - Gradeability
20°
Specifications
| Model | | |
| Bucket capacity | 0.03m³ | 0.03m³ |
| Chassis width | 1100mm | 1160mm |
| Track length | 1030mm | 1250mm |
| Gradeability | 20° | 20° |
| Ground clearance | 385mm | 385mm |
| Track width | 180mm | 230mm |
| Fuel tank capacity | 10L | 10L |
| Overall dimensions (L×W×H) | 2200×1100×2200mm | 2200×1100×2200mm |
| Transport length | 2200mm | 2200mm |
| Hydraulic flow | 40L/min | 40L/min |
| Hydraulic tank capacity | 12L | 12L |
| Working pressure | 16MPa | 16MPa |
| Engine | Kubota D722 (EURO 5 & EPA) | Kubota D722 (EURO 5 & EPA) |
| Engine power | 10.3kW | 10.3kW |
| Max. digging height | 2700mm | 2700mm |
| Max. dumping height | 1900mm | 1900mm |
| Max. digging depth | 1910mm | 1910mm |
| Max. digging radius | 3280mm | 3280mm |
| Turning radius | 1636mm | 1636mm |
| Bucket excavating force | 15kN | 15kN |
| Operating weight | 1400kg | 1500kg |
| Configuration - valve | Beifang Brand | Beifang Brand |
| Configuration - pump | K-Jun Brand | K-Jun Brand |
| Gear pump | Double gear pump | Double gear pump |
Features

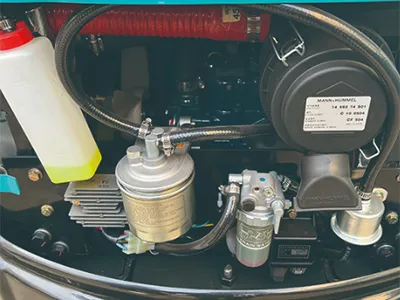

Equipped with Kubota D722 engine that ensures reliable performance, fuel efficiency, and compliance with international emission standards

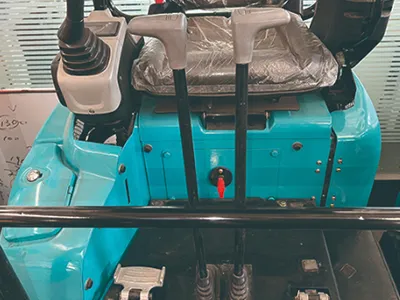

Hydraulic pilot control system

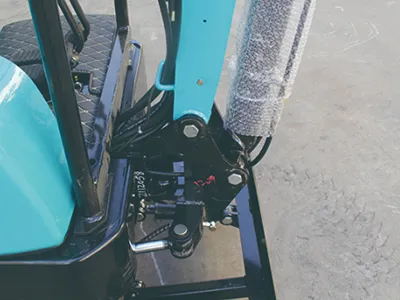

Optional swing boom
Enhances working flexibility, allowing for wall-side excavation and operations in confined spaces

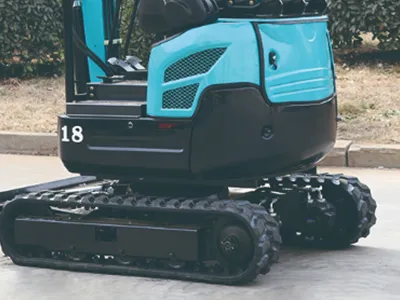

Zero-tail design enables efficient maneuvering in tight or restricted work environments

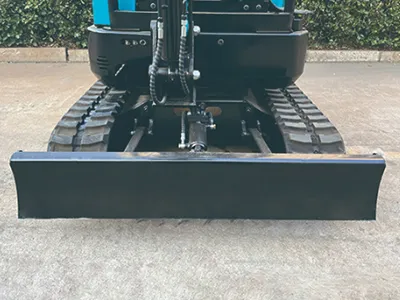

Reinforced thickened dozer blade

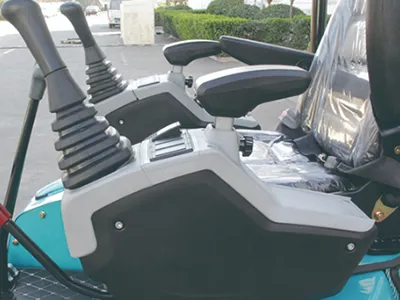

Intuitive control panel
Can your crawler excavator perform climbing operations in confined spaces?
Can your crawler excavator perform climbing operations in confined spaces?
The crawler excavator features a dual-speed motor system that allows switching between high and low speeds, ensuring strong power output with excellent starting and climbing performance. The optional swing boom, zero-tail design, and compact body structure make it highly maneuverable and efficient in tight working areas.
Can the crawler excavator maintain strong power during extended operation in small spaces?
Can the crawler excavator maintain strong power during extended operation in small spaces?
Designed with a lightweight and compact structure, the excavator weighs only 850 kg, requiring minimal space for movement. It is ideal for indoor use, orchards, and nurseries. Powered by multiple optional engine configurations and a 13 L hydraulic oil tank, it supports long-duration continuous operation without performance loss.
How flexible is the crawler excavator in operation?
How flexible is the crawler excavator in operation?
The crawler excavator is equipped with adjustable tracks, allowing the track width to be modified to improve mobility and terrain adaptability. The optional swing boom further enhances working flexibility, making it suitable for wall-side excavation and complex construction sites.
