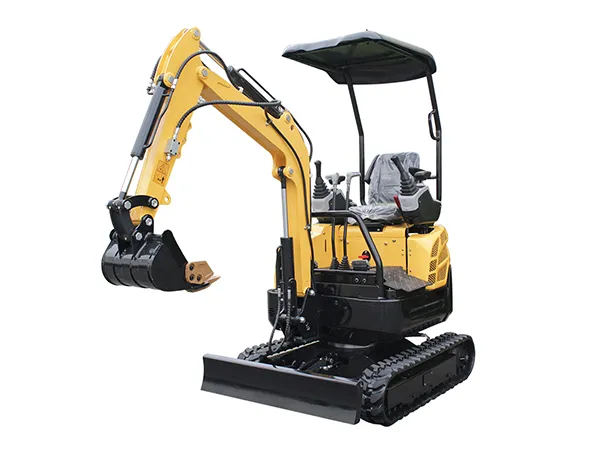

KV13/13PLUS/15 Mini Crawler Excavator
Compact excavator with operating weight of 1000kg
- Bucket capacity
0.025m³ - Chassis width
1100mm - Track length
1030mm - Gradeability
20°
-
Specifications
| Model | | | |
| Bucket capacity | 0.025m³ | 0.025m³ | 0.025m³ |
| Chassis width | 1100mm | 1100mm | 1000mm |
| Track length | 1030mm | 1030mm | 926mm |
| Gradeability | 20° | 20° | 20° |
| Chassis ground clearance | 385mm | 385mm | 385mm |
| Track width | 180mm | 180mm | 180mm |
| Fuel tank capacity | 5L | 5L | 7L |
| Overall dimensions (L×W×H) | 2200×1100×2200mm | 2200×1100×2200mm | 2450×1000×2200mm |
| Transport length | 2400mm | 2400mm | 2450mm |
| Hydraulic flow | 18L/min | 18L/min/27L/min | 28L/min |
| Hydraulic tank capacity | 13L | 13L | 13L |
| Working pressure | 16MPa | 16MPa | 16MPa |
| Engine | KOOP 192F diesel engine (Euro 5) | KOOP 192F diesel engine (Euro 5) | KOOP 192F diesel engine (Euro 5) |
| Engine power | 12hp | 12hp | 12hp |
| EPA engine optional | Briggs & Stratton gasoline/13.5hp | Briggs & Stratton gasoline/13.5hp | Kuboto D722 |
| Max. digging height | 2550mm | 2550mm | 2550mm |
| Max. dumping height | 1710mm | 1710mm | 1600mm |
| Max. digging depth | 1740mm | 1740mm | 1650mm |
| Max. digging radius | 3100mm | 3100mm | 2400mm |
| Turning radius | 1635mm | 1635mm | 1550mm |
| Bucket excavating force | 11kN | 11kN | 13.5kN |
| Operating weight | 1000kg | 1100kg | 1000kg |
| Configurations | Valve: Beifang Brand Pump: K-Jun Brand Piston pump Eaton walking motor | Valve: Beifang Brand Pump: K-Jun Brand Piston pump Eaton walking motor | Valve: Beifang Brand Pump: K-Jun Brand Piston pump Eaton walking motor |
Features

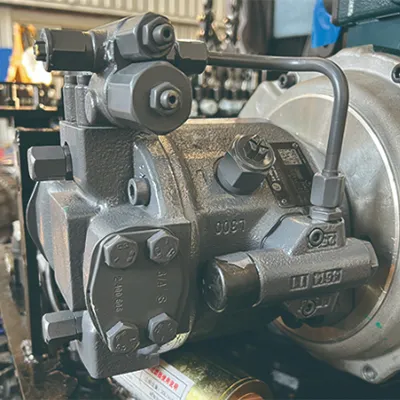

Piston pump hydraulic system provides strong power output, effective energy saving, and better heat dissipation for long working hours

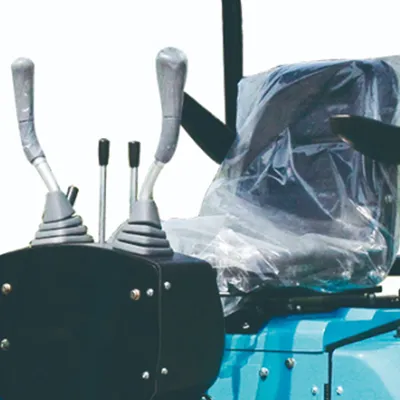

Mechanical control
Simple structure and easy maintenance, ideal for users seeking cost efficiency.
Direct linkage between control levers and the hydraulic system ensures immediate response.

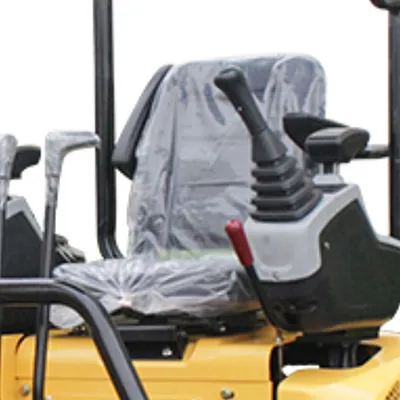

Hydraulic pilot control
Lightweight, smooth operation with reduced fatigue during long shifts.
Offers higher precision and softer motion for fine excavation tasks.

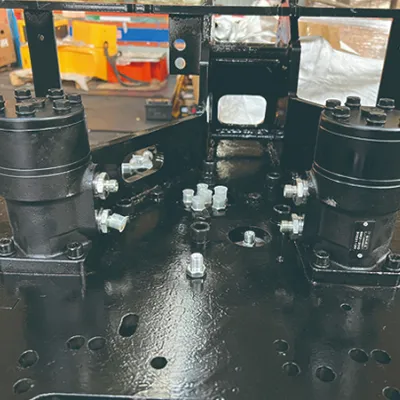

Dual swing motors provide smoother and more stable machine movement

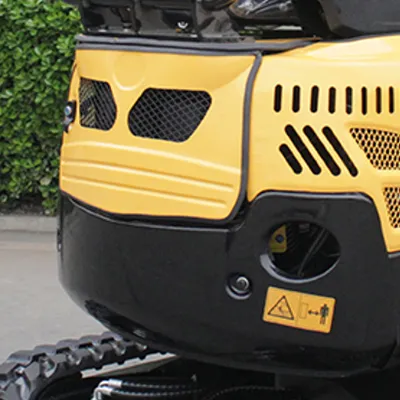

Zero-tail design with adjustable tracks
Compact, zero-tail structure enhances maneuverability in confined areas
Adjustable track width makes transitions and narrow-passage movement easier and safer

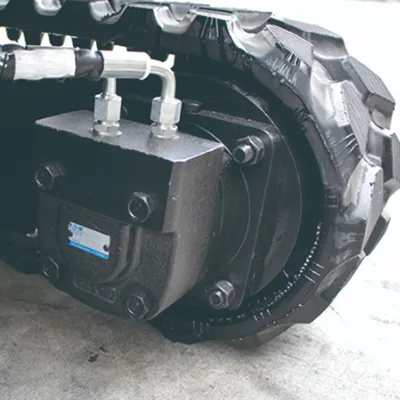

Imported Eaton travel motor with integrated brake
Fitted with a U.S.-made Eaton travel motor for reliability and consistent power
Built-in braking system ensures stability and safety on slopes

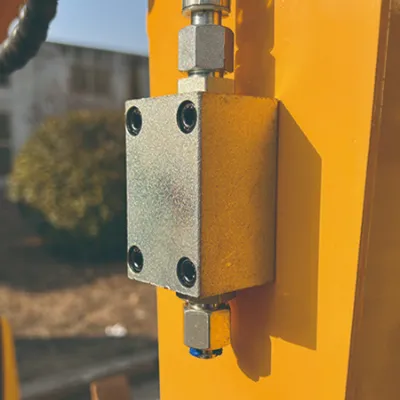

Breaker cut-off valve
Made of wear-resistant cast steel, prevents hydraulic oil leakage
Ensures safe and efficient breaker operation
Contact Us
Send Us Your Inquiry
Tell us about your needs, our specialists will provide tailored recommendations and competitive quotes.
Can your crawler excavator perform climbing operations in confined spaces?
Can your crawler excavator perform climbing operations in confined spaces?
The crawler excavator features a dual-speed motor system that allows switching between high and low speeds, ensuring strong power output with excellent starting and climbing performance. The optional swing boom, zero-tail design, and compact body structure make it highly maneuverable and efficient in tight working areas.
Can the crawler excavator maintain strong power during extended operation in small spaces?
Can the crawler excavator maintain strong power during extended operation in small spaces?
Designed with a lightweight and compact structure, the excavator weighs only 850 kg, requiring minimal space for movement. It is ideal for indoor use, orchards, and nurseries. Powered by multiple optional engine configurations and a 13 L hydraulic oil tank, it supports long-duration continuous operation without performance loss.
How flexible is the crawler excavator in operation?
How flexible is the crawler excavator in operation?
The crawler excavator is equipped with adjustable tracks, allowing the track width to be modified to improve mobility and terrain adaptability. The optional swing boom further enhances working flexibility, making it suitable for wall-side excavation and complex construction sites.
