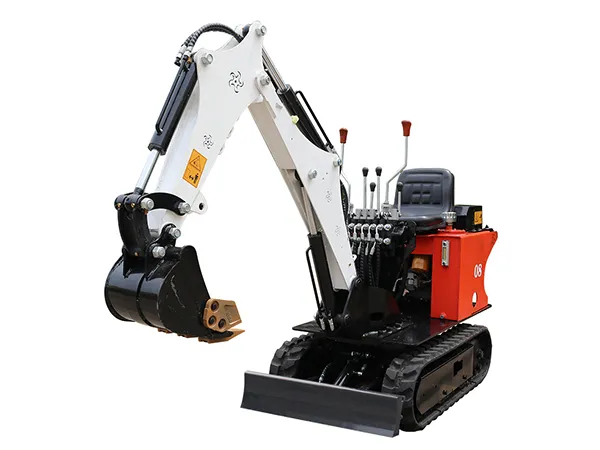

KV08 Mini Crawler Excavator
Compact excavator with operating weight of 700kg
- Operating weight
700kg - Track width
150mm - Track ground length
805mm - Bucket capacity
0.02m³
Specifications
| Operating weight | 700kg |
| Overall dimensions (L×W×H) | 2200×760×1880mm |
| Track width | 150mm |
| Track ground length | 805mm |
| Ground clearance | 385mm |
| Bucket capacity | 0.02m³ |
| Gradeability | 30° |
| Fuel tank capacity | 5L |
| Hydraulic tank capacity | 13L |
| Hydraulic flow | 18L/min |
| Working pressure | 16MPa |
| Engine | Huapuri 192F |
| Engine power | 12hp |
| EU5 & EPA4 engine options | Briggs & Stratton, Kepu 192 |

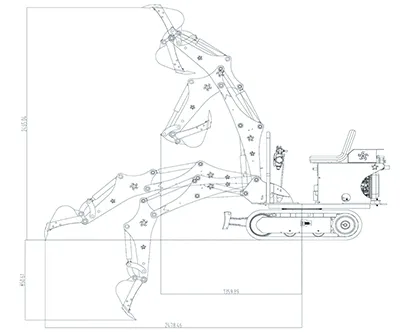

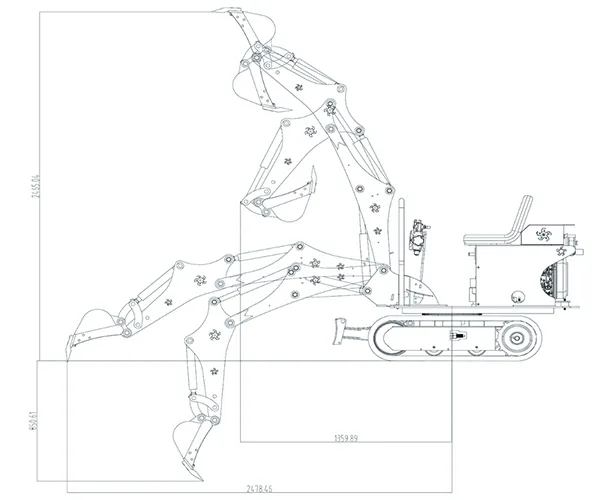

| Max. digging height | 2465mm |
| Max. dumping height | 1780mm |
| Max. digging depth | 840mm |
| Max. digging radius | 2500mm |
| Swing radius | 1100mm |
| Configuration | Pump, valve and motor (renowned domestic brands) |
| Track type | Rubber tracks |
| Canopy | Two-leg canopy |
Features
-
Available with a Koop 192F diesel engine or Briggs & Stratton gasoline engine -
Easy-to-use dual-lever front control system -
Grease-fitted pins for convenient maintenance -
Widened and thickened bulldozer blade for improved durability -
High-strength hydraulic cylinders fitted with imported seals for better flexibility and longer service life -
Shaped industrial chassis with engineering-grade rubber tracks offers excellent traction and stability across varied terrain conditions
Detail Highlights
-

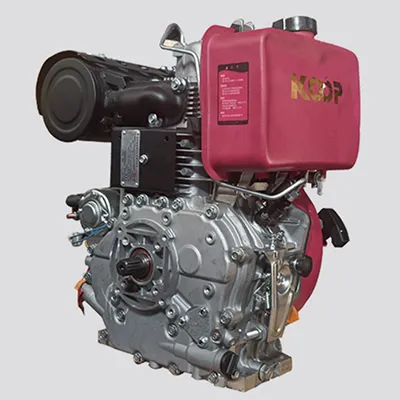

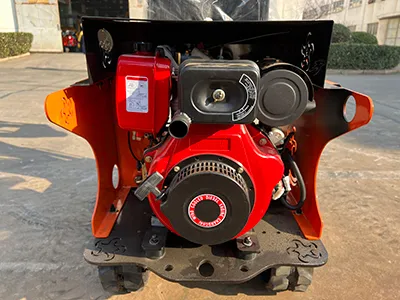

Engine -

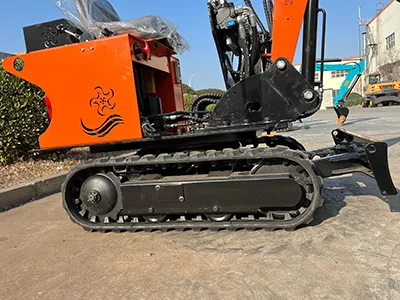

Rubber track -

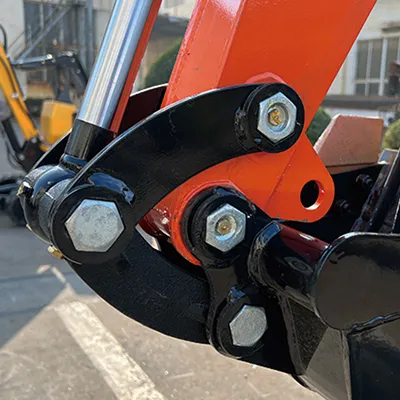

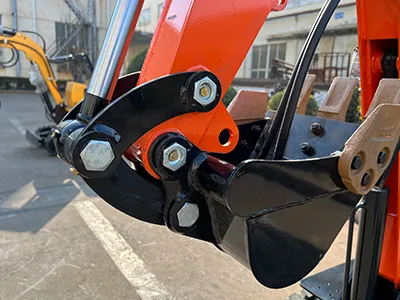

Grease nipple -

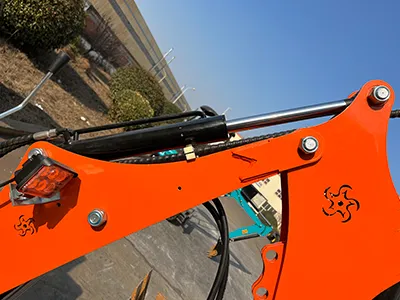

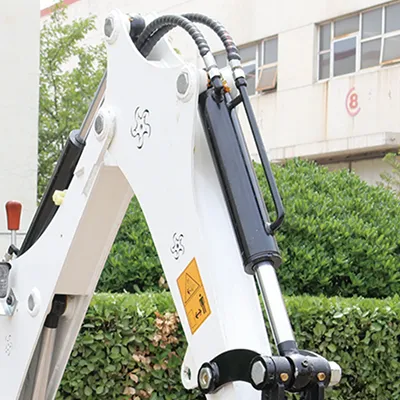

Reinforced hydraulic cylinder -

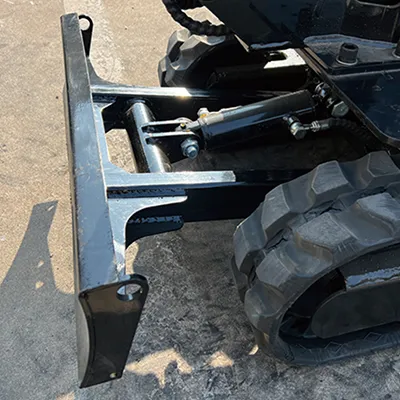

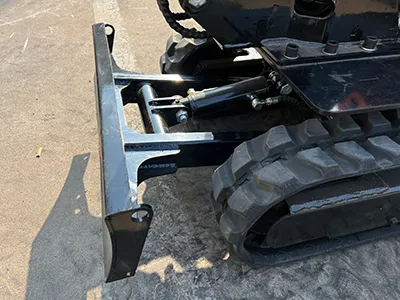

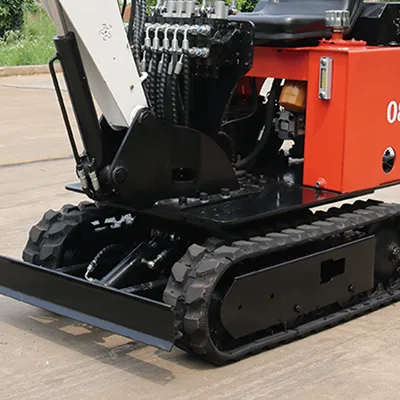

Reinforced dozer blade -

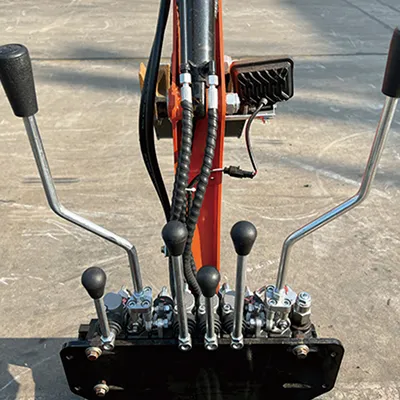

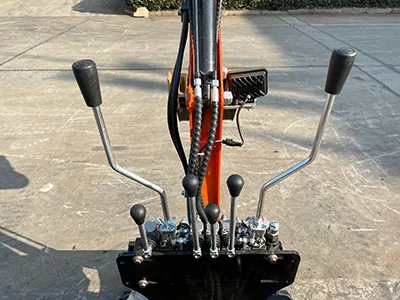

Joystick
Can your crawler excavator perform climbing operations in confined spaces?
Can your crawler excavator perform climbing operations in confined spaces?
The crawler excavator features a dual-speed motor system that allows switching between high and low speeds, ensuring strong power output with excellent starting and climbing performance. The optional swing boom, zero-tail design, and compact body structure make it highly maneuverable and efficient in tight working areas.
Can the crawler excavator maintain strong power during extended operation in small spaces?
Can the crawler excavator maintain strong power during extended operation in small spaces?
Designed with a lightweight and compact structure, the excavator weighs only 850 kg, requiring minimal space for movement. It is ideal for indoor use, orchards, and nurseries. Powered by multiple optional engine configurations and a 13 L hydraulic oil tank, it supports long-duration continuous operation without performance loss.
How flexible is the crawler excavator in operation?
How flexible is the crawler excavator in operation?
The crawler excavator is equipped with adjustable tracks, allowing the track width to be modified to improve mobility and terrain adaptability. The optional swing boom further enhances working flexibility, making it suitable for wall-side excavation and complex construction sites.
