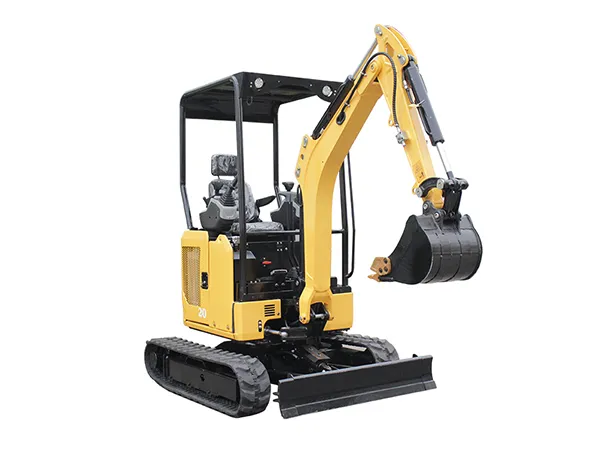

KE20/25 Electric Crawler Excavator
Battery-electric compact excavator with operating weight of 2000kg
- Bucket capacity
0.035m³ - Chassis width
1100-1400mm - Track length
1500mm - Gradeability
40°
Specifications
| Model | KE20 | KE25 |
| Bucket capacity | 0.035m³ | 0.035m³ |
| Chassis width | 1100-1400mm | 1100-1400mm |
| Track length | 1500mm | 1500mm |
| Gradeability | 40° | 40° |
| Ground clearance | 385mm | 385mm |
| Track width | 230mm | 230mm |
| Overall dimension | 3550×1100/1400×2300mm | 3700×1100/1400×2300mm |
| Transport length | 3550mm | 3700mm |
| Battery capacity | 200Ah | 200Ah |
| Battery voltage | 72V | 72V |
| Charging time | 6h-8h | 6h-8h |
| Noise level | < 55dB | < 55dB |
| Motor power | 6kW | 6kW |
| Power consumption | 1kW/h | 1kW/h |
| Max. digging height | 3016mm | 3200mm |
| Max. dumping height | 2133mm | 2290mm |
| Max. digging depth | 2050mm | 2241mm |
| Max. digging radius | 3800mm | 3800mm |
| Turning radius | 1645mm | 1645mm |
| Bucket excavating force | 16kN | 16kN |
| Operating weight | 2000kg | 2000kg |
| Configuration - valve | Beifang Brand | Beifang Brand |
| Configuration - pump | K.Jun Brand | Xingzou Brand |
| Load sensitive system | Yes | Yes |

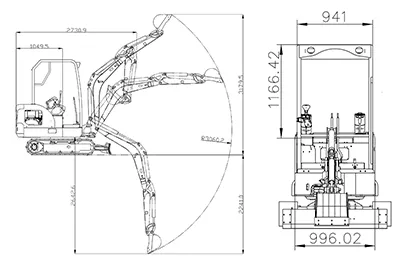

KE20 Electric Crawler Excavator

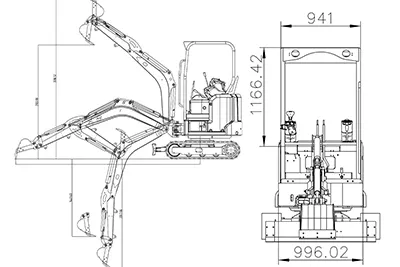

KE25 Electric Crawler Excavator
Features of KE20 Electric Crawler Excavator
-

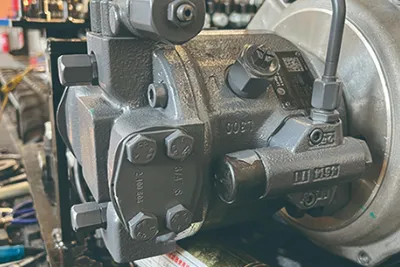

Piston pump with load-sensitive system -

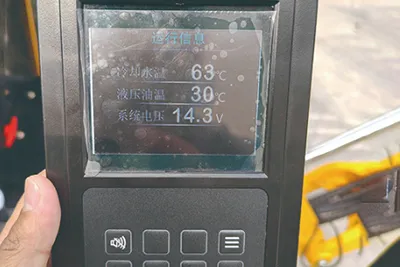

Large LED display that clearly shows real-time operating status, battery level, and system data for improved convenience and monitoring -

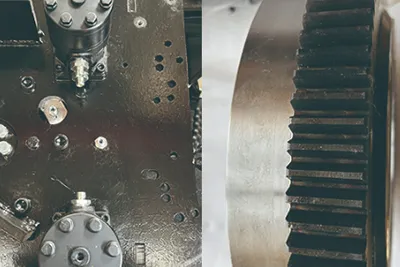

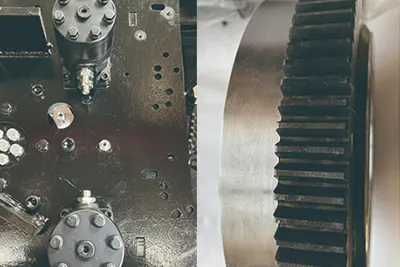

Dual swing motor design offers higher support strength and smoother movement for enhanced operational stability -

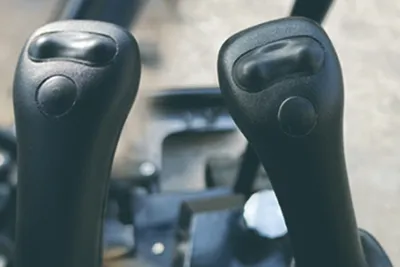

Electronic control joystick -

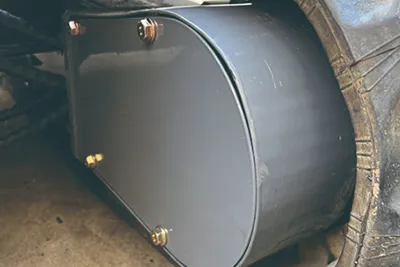

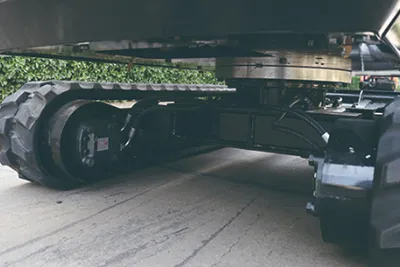

Fully enclosed travel motor protection, high- and low-speed motors are shielded to prevent damage and extend service life -

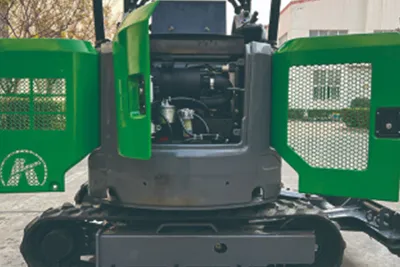

Maintenance panels on three sides allow easy daily inspection and servicing
Features of KE25 Electric Crawler Excavator
-

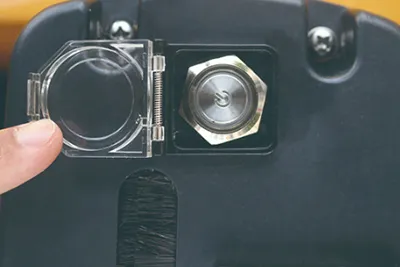

One-touch start system that simplifies startup and eliminates the risk of lost keys or ignition failure -
High/low-speed motor switching -
Dual swing motor system same as KE20, ensuring excellent stability and reliable support -

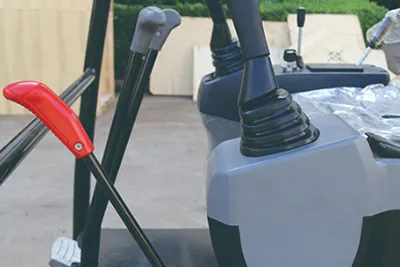

Safety lock system prevents accidental movement when the operator leaves the cab or during incomplete shutdown -

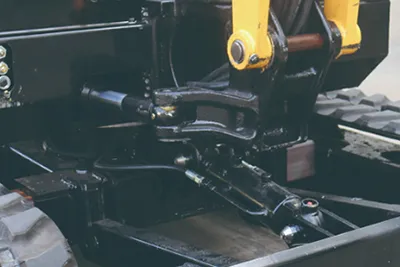

Optional swing boom to enhance flexibility for work in confined or complex spaces -

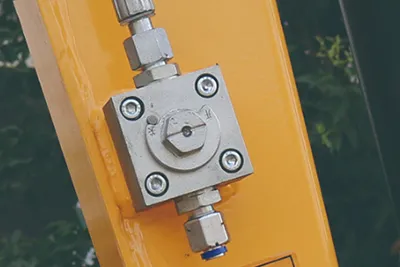

Hammer cut-off valve made of wear-resistant cast steel to prevent hydraulic leaks and ensure long-term system reliability
Can your crawler excavator perform climbing operations in confined spaces?
Can your crawler excavator perform climbing operations in confined spaces?
The crawler excavator features a dual-speed motor system that allows switching between high and low speeds, ensuring strong power output with excellent starting and climbing performance. The optional swing boom, zero-tail design, and compact body structure make it highly maneuverable and efficient in tight working areas.
Can the crawler excavator maintain strong power during extended operation in small spaces?
Can the crawler excavator maintain strong power during extended operation in small spaces?
Designed with a lightweight and compact structure, the excavator weighs only 850 kg, requiring minimal space for movement. It is ideal for indoor use, orchards, and nurseries. Powered by multiple optional engine configurations and a 13 L hydraulic oil tank, it supports long-duration continuous operation without performance loss.
How flexible is the crawler excavator in operation?
How flexible is the crawler excavator in operation?
The crawler excavator is equipped with adjustable tracks, allowing the track width to be modified to improve mobility and terrain adaptability. The optional swing boom further enhances working flexibility, making it suitable for wall-side excavation and complex construction sites.
