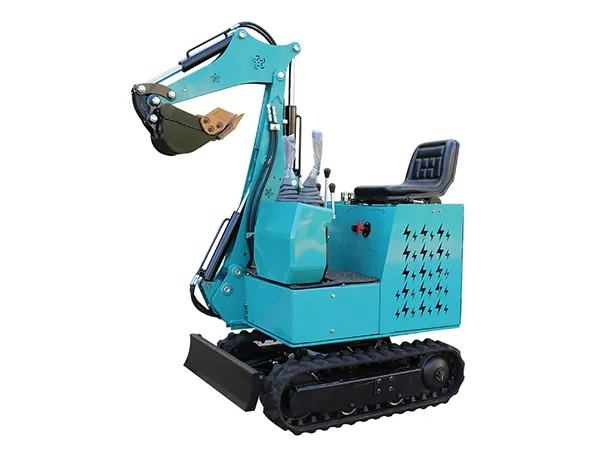

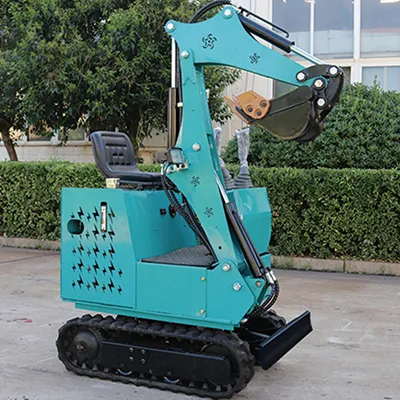

KE09 Electric Crawler Excavator
Battery-electric compact excavator with operating weight of 800kg
- Bucket capacity
0.02m³ - Chassis width
730mm - Track length
1100mm - Gradeability
40°
Specifications
| Model | KE09 |
| Certification | ISO, CE, EPA, EURO5 |
| Bucket capacity | 0.02m³ |
| Chassis width | 730mm |
| Track length | 1100mm |
| Gradeability | 40° |
| Chassis ground clearance | 380mm |
| Track width | 150mm |
| Overall dimensions (L×W×H) | 2000×730×1880mm |
| Transport length | 2200mm |
| Battery capacity | 126Ah |
| Battery voltage | 72V |
| Charging time | 6h-8h |
| Decibels within 1 meter | < 55dB |
| Engine | Lithium battery |
| Motor power | 4kW |
| Power consumption per hour | 1kWh |

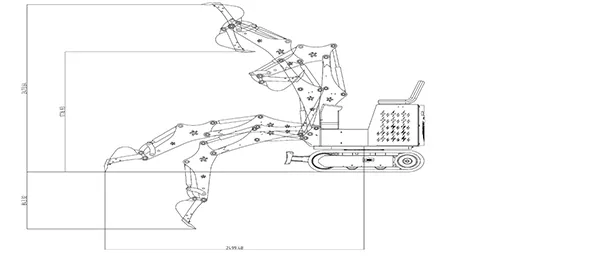

| Max. digging height | 2500mm |
| Max. dumping height | 1780mm |
| Max. digging depth | 840mm |
| Max. digging radius | 2500mm |
| Turning radius | 1100mm |
| Bucket excavating force | 11.5kN |
| Operating weight | 800kg |
| Configurations | Valve: Beifang Brand Pump: Xingzou Brand Load sensitive system |
Features
-
Lithium battery power system that delivers clean, energy-efficient operation with zero emissions, reducing fuel costs -

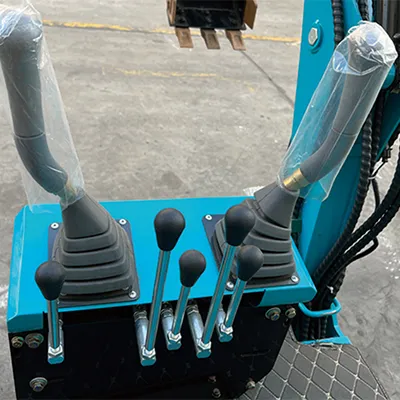

Dual-lever front control system, easy to operate -

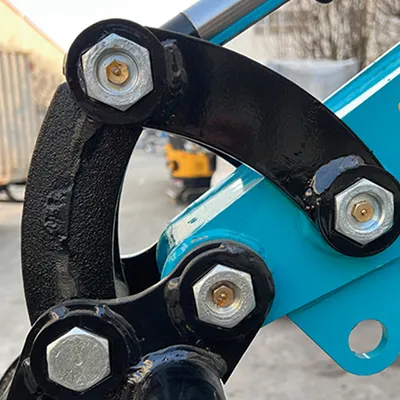

Grease-fitted pivot pins -

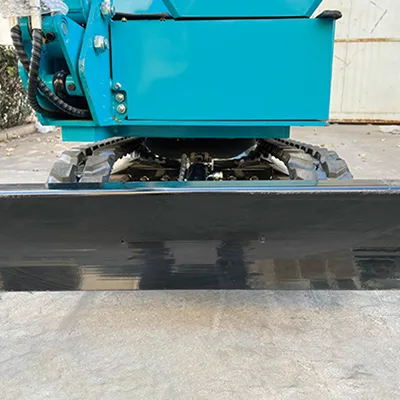

The bulldozer blade is widened and thickened -

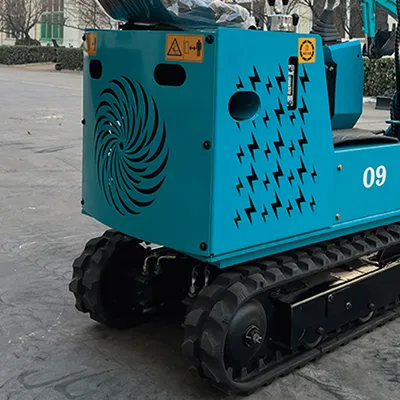

Compact body with zero tail design that allows easy maneuvering in confined or indoor workspaces
Can your crawler excavator perform climbing operations in confined spaces?
Can your crawler excavator perform climbing operations in confined spaces?
The crawler excavator features a dual-speed motor system that allows switching between high and low speeds, ensuring strong power output with excellent starting and climbing performance. The optional swing boom, zero-tail design, and compact body structure make it highly maneuverable and efficient in tight working areas.
Can the crawler excavator maintain strong power during extended operation in small spaces?
Can the crawler excavator maintain strong power during extended operation in small spaces?
Designed with a lightweight and compact structure, the excavator weighs only 850 kg, requiring minimal space for movement. It is ideal for indoor use, orchards, and nurseries. Powered by multiple optional engine configurations and a 13 L hydraulic oil tank, it supports long-duration continuous operation without performance loss.
How flexible is the crawler excavator in operation?
How flexible is the crawler excavator in operation?
The crawler excavator is equipped with adjustable tracks, allowing the track width to be modified to improve mobility and terrain adaptability. The optional swing boom further enhances working flexibility, making it suitable for wall-side excavation and complex construction sites.
