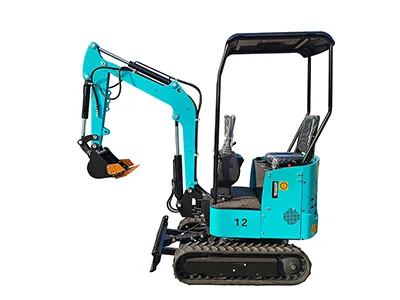

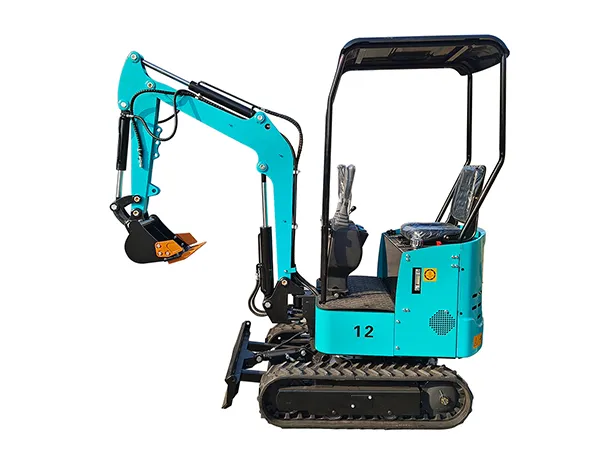

KE12/12Plus Electric Crawler Excavator
Battery-electric compact excavator with operating weight of 1000kg
- Bucket capacity
0.025m³ - Chassis width
930mm - Track length
1250mm - Gradeability
40°

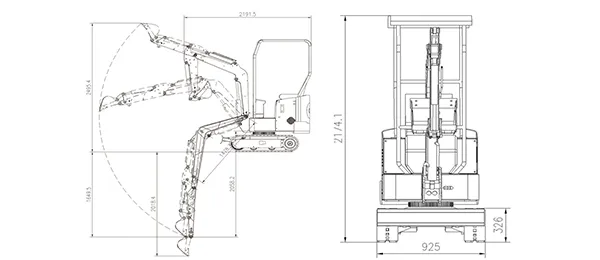

Specifications
| Certification | ISO, CE, EPA, EURO5 |
| Bucket capacity | 0.025m³ |
| Chassis width | 930mm |
| Track length | 1250mm |
| Gradeability | 40° |
| Chassis ground clearance | 385mm |
| Track width | 180mm |
| Overall dimensions (L×W×H) | 2200×930×2200mm |
| Transport length | 2200mm |
| Battery capacity | 126Ah |
| Battery voltage | 72V |
| Charging time | 6h-8h |
| Decibels within 1 meter | < 55dB |
| Engine | Lithium battery |
| Motor power | 4kW |
| Power consumption per hour | 1kW/h |
| Max. digging height | 2550mm |
| Max. dumping height | 1850mm |
| Max. digging depth | 1650mm |
| Max. digging radius | 2400mm |
| Turning radius | 1190mm |
| Bucket excavating force | 11kN |
| Operating weight | 1000kg |
| Configurations | Valve: Beifang Brand Pump: Xingzou Brand Double gear pump |
Features
-
Koop 192F diesel engine and B&S gasoline engine -

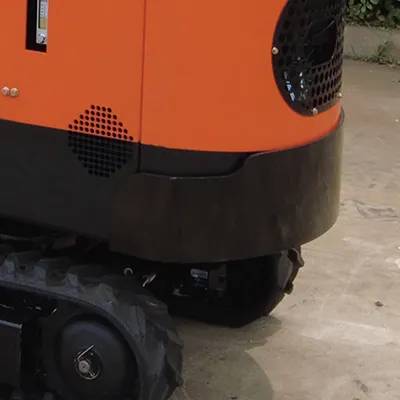

Self-contained counterweight that adds additional body weight to improve the stability of the vehicle -

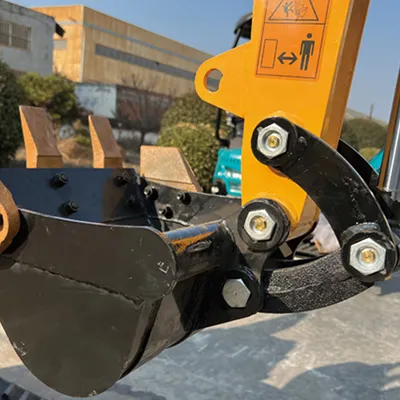

All pivot points feature grease fittings for smoother movement and easier maintenance -

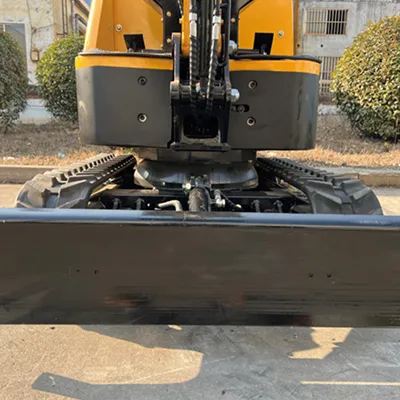

Reinforced wider and thicker bulldozer blade for greater durability -

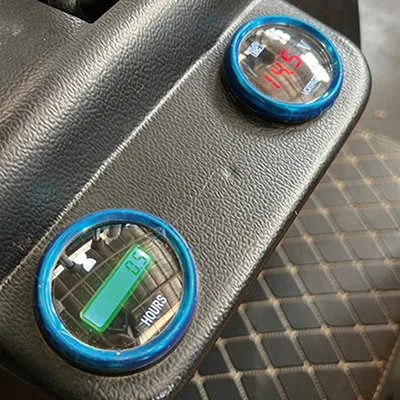

Timer and voltmeter -

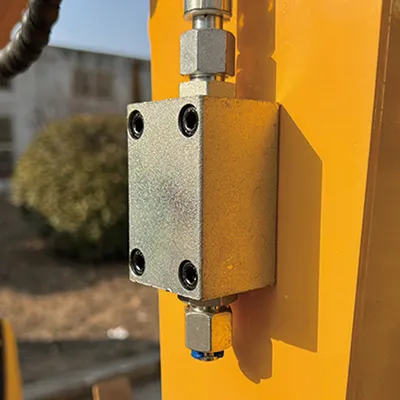

Hammer cut-off valve made of durable cast steel, ensuring wear resistance, strong mechanical performance, and prevention of oil leaks or drips
Can your crawler excavator perform climbing operations in confined spaces?
Can your crawler excavator perform climbing operations in confined spaces?
The crawler excavator features a dual-speed motor system that allows switching between high and low speeds, ensuring strong power output with excellent starting and climbing performance. The optional swing boom, zero-tail design, and compact body structure make it highly maneuverable and efficient in tight working areas.
Can the crawler excavator maintain strong power during extended operation in small spaces?
Can the crawler excavator maintain strong power during extended operation in small spaces?
Designed with a lightweight and compact structure, the excavator weighs only 850 kg, requiring minimal space for movement. It is ideal for indoor use, orchards, and nurseries. Powered by multiple optional engine configurations and a 13 L hydraulic oil tank, it supports long-duration continuous operation without performance loss.
How flexible is the crawler excavator in operation?
How flexible is the crawler excavator in operation?
The crawler excavator is equipped with adjustable tracks, allowing the track width to be modified to improve mobility and terrain adaptability. The optional swing boom further enhances working flexibility, making it suitable for wall-side excavation and complex construction sites.
