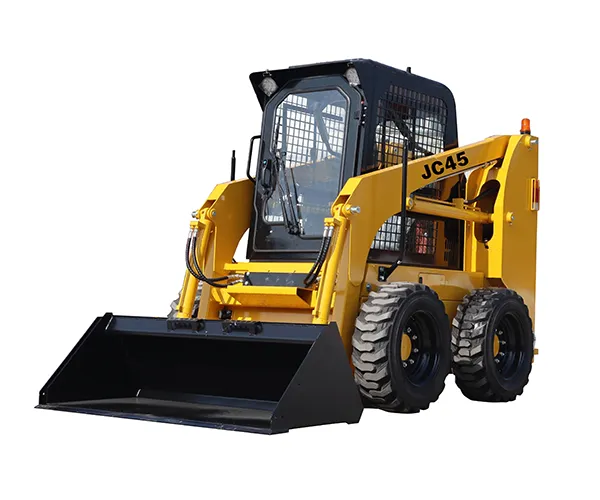

JC45 Skid Steer Loader
  • JC45 Skid Steer Loader
  • JC45 Skid Steer Loader

    • JC45 Skid Steer Loader

    Wheeled skid steer with rated operating capacity of 700kg for medium-sized construction and truck loading tasks

    • Operating weight
      3100kg
    • Rated load
      700kg
    • Bucket capacity
      0.4m³
    • Max. speed
      12km/h
    • High working efficiency: With a rated load of 700 kg, bucket capacity of 0.4 m³, and a maximum breakout force of ≥18.4 kN, the JC45 is ideal for material stacking, truck loading, and high-intensity handling operations.
    • Optimized loading height: The bucket hinge pin height reaches 3080 mm with a maximum dumping height of 2380 mm, making it suitable for loading medium- and heavy-duty trucks.
    • Quick attachment coupling system: Standard quick coupler allows compatibility with multiple tools such as hydraulic breakers, sweepers, grapples, and snow plows, supporting diverse worksite requirements.
    Request a Quote
    Specifications
    Model JC45
    Operating weight 3100kg
    Rated load 700kg
    Bucket capacity 0.4m³
    Max. speed 12km/h
    Max. traction ≥25.40kN
    Max. breakout ≥18.4kN
    Lifting time of boom 7s

    Engine

    Manufacturer Xinchai
    Model C490BPG
    Rated power 36.7kW/2650rpm
    Engine displacement 2.27L
    Emission standard China II
    JC45 Skid Steer Loader

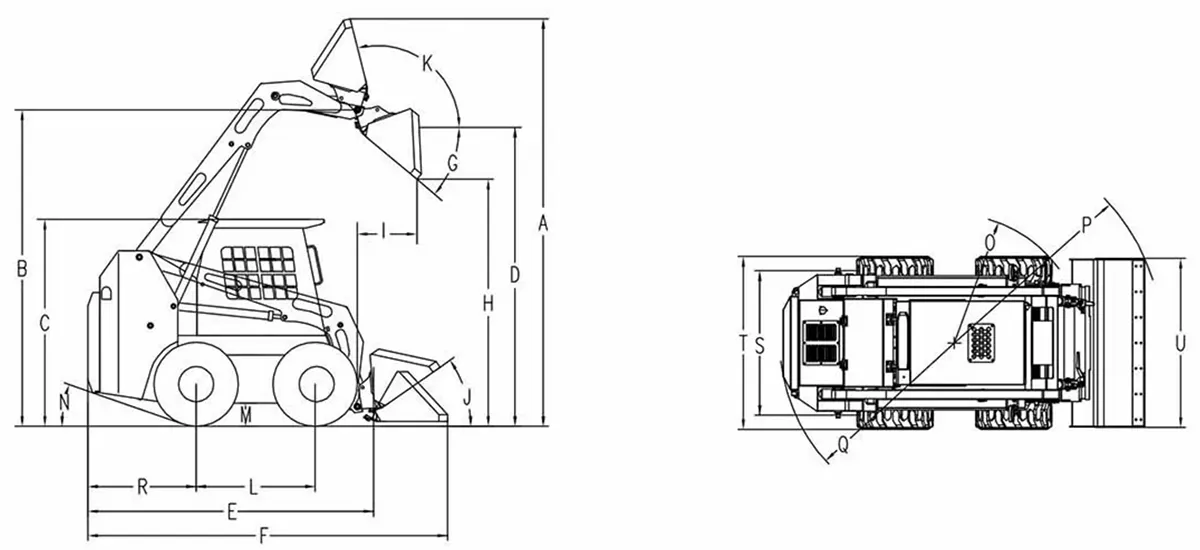

    Dimensions

    A Overall operating height 3980mm
    B Height to bucket hinge pin 3080mm
    C Height to top of cab 2140mm
    D Height to bottom of level bucket 2913mm
    E Overall length without bucket 2640mm
    F Overall length with bucket 3420mm
    G Dumping angle at maximum height 40°
    H Dumping height 2380mm
    I Dumping reach 700mm
    J Rollback of bucket on ground 30°
    K Rollback of bucket at full height 104°
    L Wheelbase 1075mm
    M Ground clearance 185mm
    N Angle of departure 20°
    O Front turning radius without bucket 1300mm
    P Front tuning radius 2290mm
    Q Rear tuning radius 1440mm
    R Rear axle to bumper 1080mm
    S Track width 1450mm
    T Width 1720mm
    U Bucket width 1740mm
    Optional attachment
    • Standard bucketStandard bucket
    • Deep bucketDeep bucket
    • Screening bucketScreening bucket
    • Quick couplerQuick coupler
    • Pallet forksPallet forks
    • AugerAuger
    • Snow plow bladeSnow plow blade
    • Log grappleLog grapple
    • Round bale handlerRound bale handler
    • Square bale handlerSquare bale handler
    • Flail mowerFlail mower
    • Lifting boom / Crane AttachmentLifting boom / Crane Attachment
