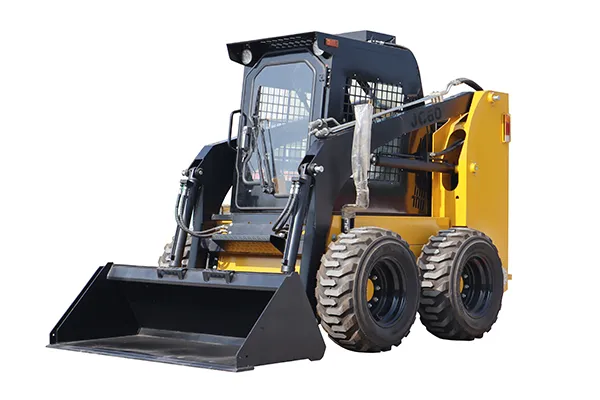

JC60 Skid Steer Loader
Wheeled skid steer with rated operating capacity of 850kg for warehouses, urban areas and construction sites
- Operating weight
3200kg - Rated load
850kg - Bucket capacity
0.45m³ - Max. speed
12km/h
| Model | JS60 |
| Operating weight | 3200kg |
| Rated load | 850kg |
| Bucket capacity | 0.45m³ |
| Max. speed | 12km/h |
| Max. traction | ≥25.40kN |
| Max. breakout | ≥18.4kN |
| Lifting time of boom | 7s |
Engine
| Manufacturer | Xinchai |
| Model | A498BPG |
| Rated power | 45kW/2500rpm |
| Engine displacement | 3.17L |
| Emission standard | China II |

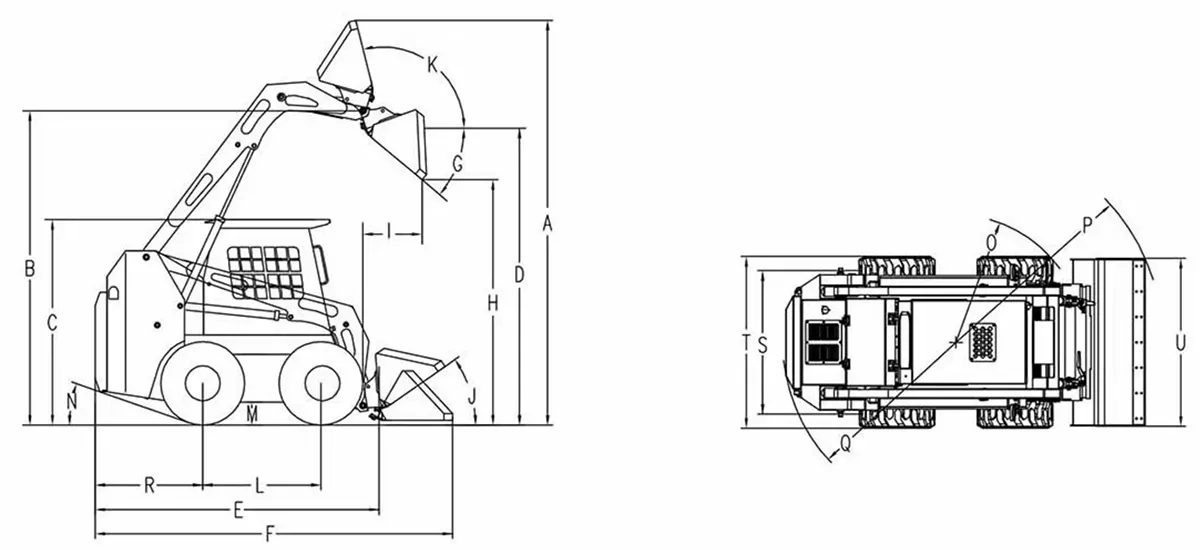

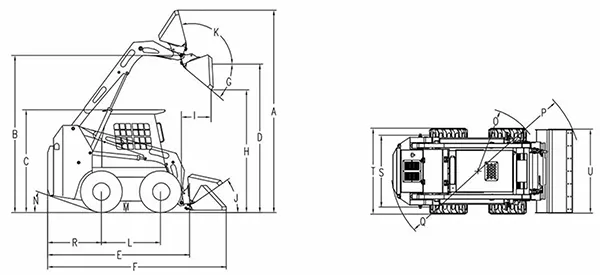

Dimensions
| A | Overall operating height | 4000mm |
| B | Height to bucket hinge pin | 3100mm |
| C | Height to top of cab | 2160mm |
| D | Height to bottom of level bucket | 2933mm |
| E | Overall length without bucket | 2750mm |
| F | Overall length with bucket | 3490mm |
| G | Dumping angle at maximum height | 40° |
| H | Dumping height | 2400mm |
| I | Dumping reach | 750mm |
| J | Rollback of bucket on ground | 30° |
| K | Rollback of bucket at full height | 104° |
| L | Wheelbase | 1075mm |
| M | Ground clearance | 205mm |
| N | Angle of departure | 20° |
| O | Front turning radius without bucket | 1198mm |
| P | Front tuning radius | 1958mm |
| Q | Rear tuning radius | 1728mm |
| R | Rear axle to bumper | 1208mm |
| S | Track width | 1500mm |
| T | Width | 1880mm |
| U | Bucket width | 1880mm |
Standard bucket
Deep bucket
Screening bucket
Quick coupler
Pallet forks
Auger
Snow plow blade
Log grapple
Round bale handler
Square bale handler
Flail mower
Lifting boom / Crane AttachmentTell us about your needs, our specialists will provide tailored recommendations and competitive quotes.
