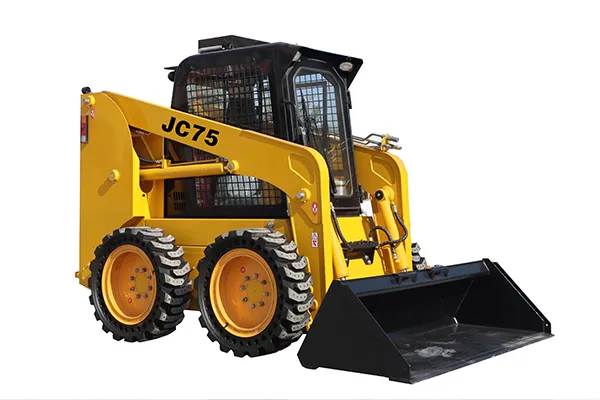

JC75 Skid Steer Loader
  • JC75 Skid Steer Loader
  • JC75 Skid Steer Loader

    • JC75 Skid Steer Loader

    Wheeled skid steer with rated operating capacity of 1050kg for heavy-duty material handling applications

    • Operating weight
      3460kg
    • Rated load
      1050kg
    • Bucket capacity
      0.5m³
    • Max. speed
      12km/h
    Request a Quote
    Specifications
    Model JC75
    Operating weight 3460kg
    Rated load 1050kg
    Bucket capacity 0.5m³
    Max. speed 12km/h
    Max. traction ≥28.2kN
    Max. breakout ≥20kN
    Lifting time of boom 7s

    Engine

    Manufacturer Xinchai
    Model A498BZG/T
    Rated power 55kW/2500rpm
    Engine displacement 3.17L
    Emission standard China II
    JC75 Skid Steer Loader

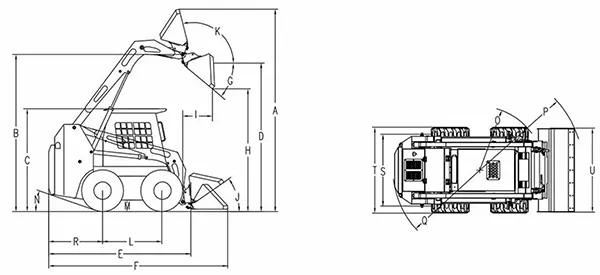

    Dimensions

    A Overall operating height 4290mm
    B Height to bucket hinge pin 3278mm
    C Height to top of cab 2160mm
    D Height to bottom of level bucket 2983mm
    E Overall length without bucket 2770mm
    F Overall length with bucket 3490mm
    G Dumping angle at maximum height 40°
    H Dumping height 2500mm
    I Dumping reach 700mm
    J Rollback of bucket on ground 30°
    K Rollback of bucket at full height 104°
    L Wheelbase 1115mm
    M Ground clearance 205mm
    N Angle of departure 20°
    O Front turning radius without bucket 1250mm
    P Front tuning radius 2112mm
    Q Rear tuning radius 1774mm
    R Rear axle to bumper 1082mm
    S Track width 1500mm
    T Width 1880mm
    U Bucket width 1880mm
    Optional attachment
    • Standard bucketStandard bucket
    • Deep bucketDeep bucket
    • Screening bucketScreening bucket
    • Quick couplerQuick coupler
    • Pallet forksPallet forks
    • AugerAuger
    • Snow plow bladeSnow plow blade
    • Log grappleLog grapple
    • Round bale handlerRound bale handler
    • Square bale handlerSquare bale handler
    • Flail mowerFlail mower
    • Lifting boom / Crane AttachmentLifting boom / Crane Attachment
