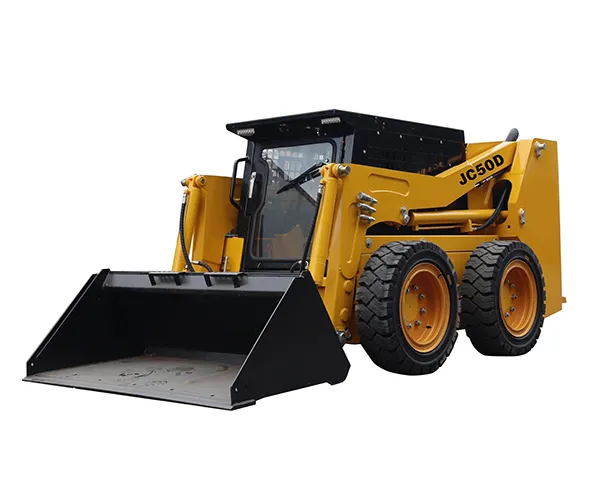

JC50D Skid Steer Loader
  • JC50D Skid Steer Loader
  • JC50D Skid Steer Loader
  • JC50D Skid Steer Loader

    • JC50D Skid Steer Loader

    Wheeled skid steer with rated operating capacity of 700kg for medium-sized construction and truck loading tasks

    • Operating weight
      2800kg
    • Rated load
      850kg
    • Bucket capacity
      0.4m³
    • Max. speed
      6km/h
    • Strong load capacity: Rated operating load of 850 kg with a maximum traction force of ≥25.4 kN, ensuring stable performance during heavy-duty operations.
    • Efficient material handling: Equipped with a 0.4 m³ bucket and a maximum breakout force of ≥18.4 kN, suitable for various loading and material transport tasks.
    • Versatile attachment compatibility: Standard quick coupler supports multiple tools such as hydraulic breakers, sweepers, grapples, and snow plows, offering flexibility for different working scenarios.
    Request a Quote
    Specifications
    Model JC50D
    Operating weight 2800kg
    Rated load 850kg
    Bucket capacity 0.4m³
    Max. speed 6km/h
    Max. traction ≥25.40kN
    Max. breakout ≥18.4kN
    Lifting time of boom 7s

    Engine

    Manufacturer Xinchai
    Model A498BPG
    Rated power 45kW/2500rpm
    Engine displacement 3.17L
    Emission standard China II
    JC50D Skid Steer Loader

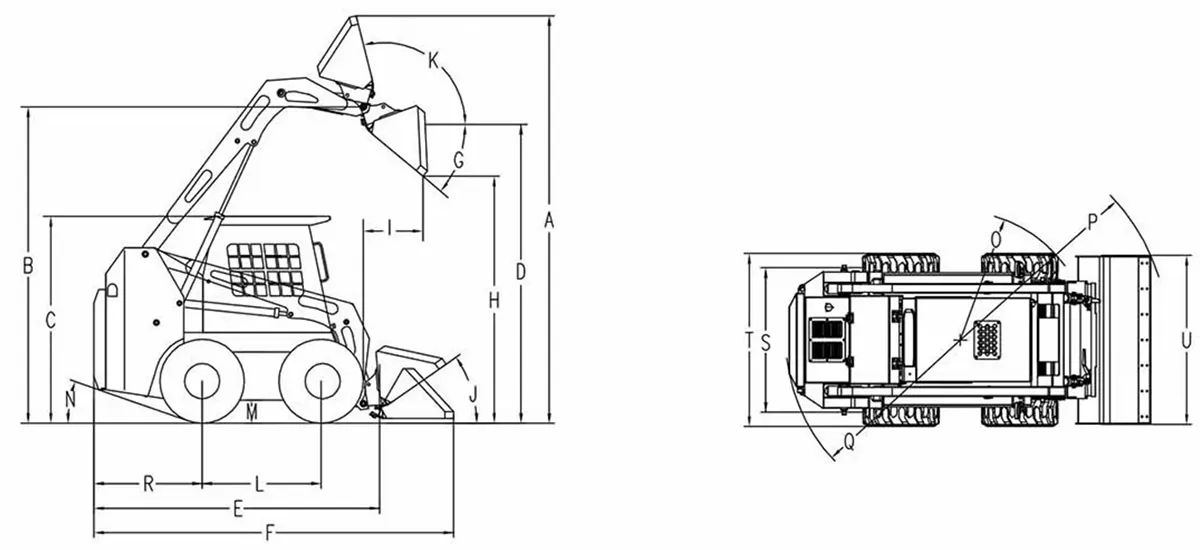

    Dimensions

    A Overall operating height 3485mm
    B Height to bucket hinge pin 2465mm
    C Height to top of cab 1400-1600mm
    D Height to bottom of level bucket 2643mm
    E Overall length without bucket 2800mm
    F Overall length with bucket 3490mm
    G Dumping angle at maximum height 40°
    H Dumping height 1700mm
    I Dumping reach 700mm
    J Rollback of bucket on ground 30°
    K Rollback of bucket at full height 104°
    L Wheelbase 995mm
    M Ground clearance 140mm
    N Angle of departure 13°
    O Front turning radius without bucket 1228mm
    P Front tuning radius 2010mm
    Q Rear tuning radius 1746mm
    R Rear axle to bumper 1208mm
    S Track width 1450mm
    T Width 1740mm
    U Bucket width 1740mm
    Optional attachment
    • Standard bucketStandard bucket
    • Deep bucketDeep bucket
    • Screening bucketScreening bucket
    • Quick couplerQuick coupler
    • Pallet forksPallet forks
    • AugerAuger
    • Snow plow bladeSnow plow blade
    • Log grappleLog grapple
    • Round bale handlerRound bale handler
    • Square bale handlerSquare bale handler
    • Flail mowerFlail mower
    • Lifting boom / Crane AttachmentLifting boom / Crane Attachment
