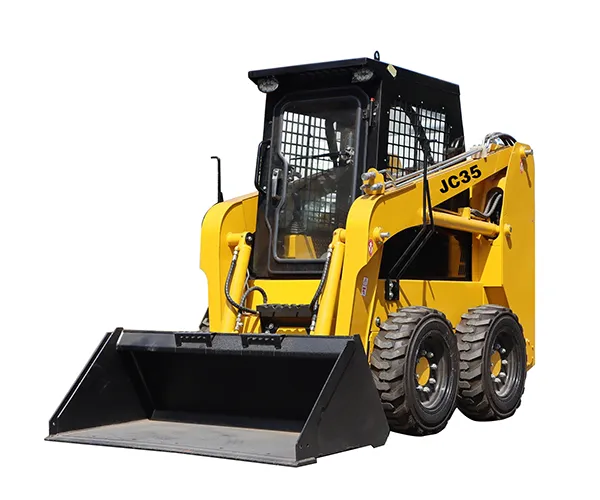

JC35 Skid Steer Loader
  • JC35 Skid Steer Loader
  • JC35 Skid Steer Loader
  • JC35 Skid Steer Loader
  • JC35 Skid Steer Loader
  • JC35 Skid Steer Loader

    • JC35 Skid Steer Loader

    Wheeled skid steer with rated operating capacity of 500kg for multiple tasks with various attachments

    • Operating weight
      2600kg
    • Rated load
      500kg
    • Bucket capacity
      0.3m³
    • Max. speed
      10km/h
    • Efficient power system: Equipped with a Xinchai C490BPG engine delivering 36.7 kW at 2650 rpm with a 2.27 L displacement, ensuring stable power output and low fuel consumption.
    • Compact design with excellent maneuverability: Overall width of only 1400 mm and a minimum turning radius of 1310 mm (without bucket) allow smooth operation and easy access in confined areas.
    • Stable structure for rough terrain: With a wheelbase of 897 mm, ground clearance of 140 mm, and an approach angle of 20°, it maintains steady performance across uneven ground.
    • Quick attachment coupling system: Standard quick coupler supports a wide range of tools including hydraulic breakers, sweepers, grapples, and snow plows, offering adaptability for various job requirements.
    Request a Quote
    Specifications
    Model JC35
    Operating weight 2600kg
    Rated load 500kg
    Bucket capacity 0.3m³
    Max. speed 10km/h
    Max. traction ≥16kN
    Max. breakout ≥8.5kN
    Lifting time of boom 7s

    Engine

    Manufacturer Xinchai
    Model C490BPG
    Rated power 36.7kW/2650rpm
    Engine displacement 2.27L
    Emission standard China II
    JC35 Skid Steer Loader

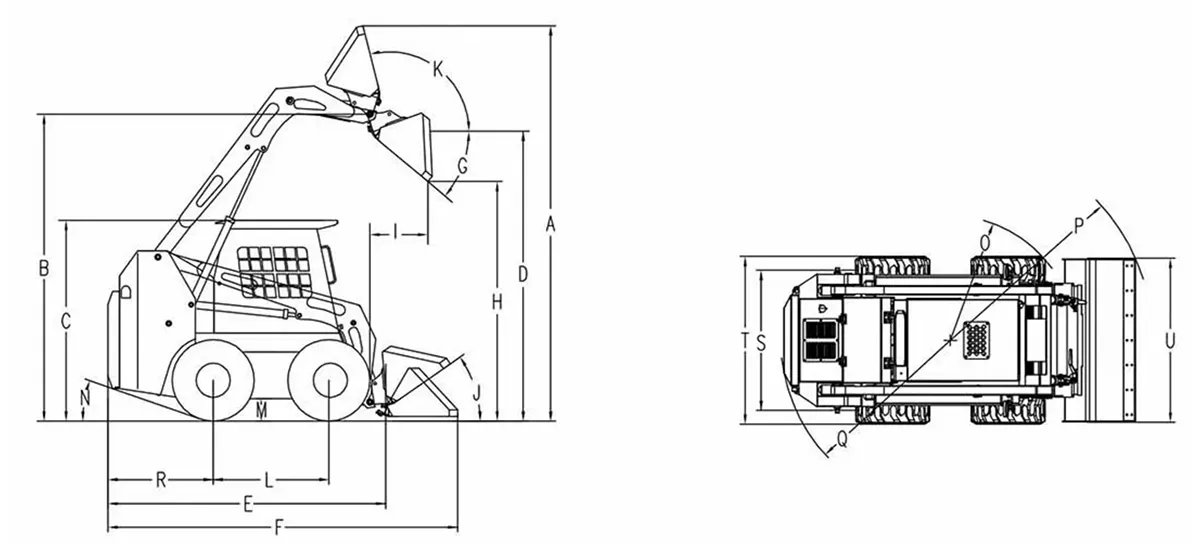

    Dimensions

    A Overall operating height 3300mm
    B Height to bucket hinge pin 2425mm
    C Height to top of cab 2000mm
    D Height to bottom of level bucket 2260mm
    E Overall length without bucket 2300mm
    F Overall length with bucket 2950mm
    G Dumping angle at maximum height 40°
    H Dumping height 2000mm
    I Dumping reach 690mm
    J Rollback of bucket on ground 30°
    K Rollback of bucket at full height 104°
    L Wheelbase 897mm
    M Ground clearance 140mm
    N Angle of departure 20°
    O Front turning radius without bucket 1310mm
    P Front turning radius 1881mm
    Q Rear turning radius 1296mm
    R Rear axle to bumper 964mm
    S Track width 1080mm
    T Width 1400mm
    U Bucket width 1422mm
    Optional attachment
    • Standard bucketStandard bucket
    • Deep bucketDeep bucket
    • Screening bucketScreening bucket
    • Quick couplerQuick coupler
    • Pallet forksPallet forks
    • AugerAuger
    • Snow plow bladeSnow plow blade
    • Log grappleLog grapple
    • Round bale handlerRound bale handler
    • Square bale handlerSquare bale handler
    • Flail mowerFlail mower
    • Lifting boom / Crane AttachmentLifting boom / Crane Attachment
