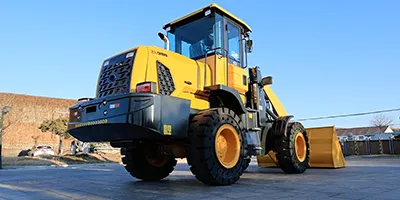

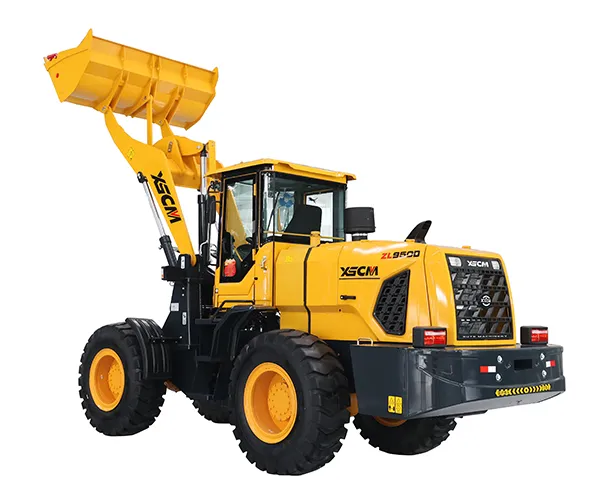

ZL950D Wheel Loader
Front end loader with diesel engine for construction sites and high-intensity material transporting applications
- Rated load
3000kg - Rated bucket capacity
1.5m³ - Operating weight
6800kg - Dump height
3600mm
Powered by a high-torque, fuel-efficient diesel engine, the ZL950D wheel loader delivers strong power output and consistent performance in demanding environments such as construction sites and material yards. It ensures reliable operation under high-intensity and high-impact working conditions, maintaining stability and productivity throughout extended use.
Constructed with premium-grade materials, the loader features a durable, wear-resistant structure engineered to withstand frequent, heavy-duty operation. Its exceptional durability and resistance to abrasion significantly extend service life and ensure dependable performance even under the toughest workloads.
Specifications
| Model | ZL9500 |
| Rated load | 3000kg |
| Rated bucket capacity | 1.5m³ |
| Operating weight | 6800kg |
| Dump height | 3600mm |
| Min. turning radius | 3350mm |
| Power | 92~103kW |
| Dimensions (L×W×H) | 7130×2350×3230mm |

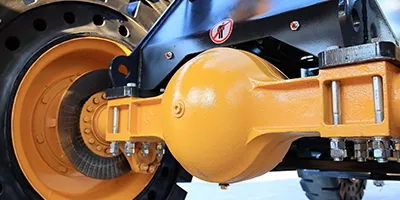

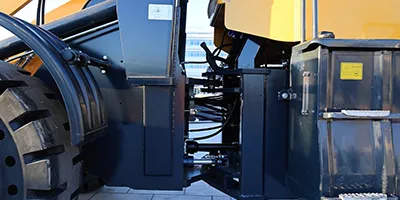

Detail Highlights
Which wheel loader is suitable for compact workspaces and environmentally sensitive areas?
Which wheel loader is suitable for compact workspaces and environmentally sensitive areas?
The electric front-end wheel loader is ideal for confined sites. With a compact body, narrow width, and small turning radius, it uses a pure electric drive system powered by a high-performance lithium battery. It delivers zero emissions and quiet operation, making it suitable for urban projects, factories, and agricultural areas with strict environmental standards.
Which model is recommended for large-scale mining operations requiring higher bucket capacity and wider dumping reach?
Which model is recommended for large-scale mining operations requiring higher bucket capacity and wider dumping reach?
The diesel front-end wheel loader is designed for heavy-duty applications. It features a 3 m³ bucket capacity and a maximum dumping height of 3,300 mm, providing excellent material handling efficiency and adaptability for intensive mining and loading operations.
Which wheel loader is suitable for forestry operations that require strong grip and stable performance when handling logs?
Which wheel loader is suitable for forestry operations that require strong grip and stable performance when handling logs?
The log handling diesel wheel loader is equipped with an extended grapple arm specifically designed for large-diameter timber. It ensures firm gripping and efficient transfer of logs. The combination of a fixed-shaft Beilian gearbox and a Shantui torque converter provides easy maintenance, smooth power transmission, and superior overload resistance.
Can the stone-handling diesel wheel loader operate effectively on rough or uneven terrain?
Can the stone-handling diesel wheel loader operate effectively on rough or uneven terrain?
The block handling diesel wheel loader features four-wheel drive and strong traction, combined with high ground clearance to handle challenging site conditions. Its large counterweight offset angle enhances climbing ability, while a maximum lifting capacity of 16 tons, long wheelbase, and reinforced frame ensure operational stability. The maximum unloading height of 3,450 mm allows efficient loading and dumping on uneven surfaces.
