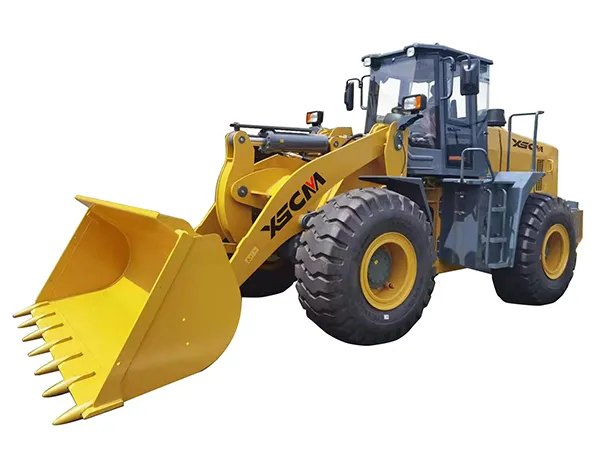

ST958H Wheel Loader
Front end loader with diesel engine for construction sites, mines and quarries
- Rated load
5,000kg - Bucket capacity
3m³ - Max. dumping height
3300mm - Max. dumping reach
1400mm
The ST958H wheel loader is engineered for high-demand applications, combining power, safety, and operational flexibility. Its braking system features four-wheel air-hydraulic disc brakes and an exhaust brake, ensuring strong braking force, smooth response, and enhanced safety. The dual-pump converging hydraulic system allows greater engine power to be directed toward breakout and lifting functions when steering is not in use, improving overall efficiency.
Specifications
| Rated load | 5,000kg |
| Bucket capacity | 3m³ |
| Max. dumping height | 3300mm |
| Max. dumping reach | 1400mm |
| Operating weight | 17,100kg |
| Engine model | Weichai WD10G220E23 |
| Optional: Shangchai SC11CB220G2B1 or Cummins 6CTA8.3-C215 | |
| Rated power | 162kW |
| Rated rotate speed | 2000r/min |
| Max. torque | ≥745.3N.m |
| Breakout force | 145kN |
| Driving speed | |
| Forward Ⅰ | 0-11.5km/h |
| Forward Ⅱ | 0-38km/h |
| Reverse Ⅰ | 0-16km/h |
| Gradeability | 28° |
| Overall length | 7950mm |
| Overall width | 2870mm |
| Overall height | 3500mm |
| Bucket width | 3000mm |
| Wheelbase | 3300mm |
| Track width | 2260mm |
| Min. ground clearance | 470mm |
| Hydraulic torque converter | Single stage, 4 elements |
| Transmission | Planetary type |
| Raise cycle time | ≤6.8s |
| Total cycle time | ≤12.5s |
| Tire type | 23.5-25 20PR |
Note:
With ongoing technological advancements, product specifications and configurations are subject to change without prior notice. In case of any uncertainty, the final confirmation provided by our international trade sales team shall prevail.
Features
- Central articulated frame provides a small turning radius and stable maneuverability, ideal for operation in confined or narrow job sites
- Full-hydraulic steering, power shift transmission, and hydraulic control system combined with a lightweight design deliver responsive control and adaptability across varied working conditions
- High-strength wear-resistant bucket enhances durability and extends service life
- Low-pressure wide bias tires provide excellent off-road capability and improved ground traction for challenging terrain
Which wheel loader is suitable for compact workspaces and environmentally sensitive areas?
Which wheel loader is suitable for compact workspaces and environmentally sensitive areas?
The electric front-end wheel loader is ideal for confined sites. With a compact body, narrow width, and small turning radius, it uses a pure electric drive system powered by a high-performance lithium battery. It delivers zero emissions and quiet operation, making it suitable for urban projects, factories, and agricultural areas with strict environmental standards.
Which model is recommended for large-scale mining operations requiring higher bucket capacity and wider dumping reach?
Which model is recommended for large-scale mining operations requiring higher bucket capacity and wider dumping reach?
The diesel front-end wheel loader is designed for heavy-duty applications. It features a 3 m³ bucket capacity and a maximum dumping height of 3,300 mm, providing excellent material handling efficiency and adaptability for intensive mining and loading operations.
Which wheel loader is suitable for forestry operations that require strong grip and stable performance when handling logs?
Which wheel loader is suitable for forestry operations that require strong grip and stable performance when handling logs?
The log handling diesel wheel loader is equipped with an extended grapple arm specifically designed for large-diameter timber. It ensures firm gripping and efficient transfer of logs. The combination of a fixed-shaft Beilian gearbox and a Shantui torque converter provides easy maintenance, smooth power transmission, and superior overload resistance.
Can the stone-handling diesel wheel loader operate effectively on rough or uneven terrain?
Can the stone-handling diesel wheel loader operate effectively on rough or uneven terrain?
The block handling diesel wheel loader features four-wheel drive and strong traction, combined with high ground clearance to handle challenging site conditions. Its large counterweight offset angle enhances climbing ability, while a maximum lifting capacity of 16 tons, long wheelbase, and reinforced frame ensure operational stability. The maximum unloading height of 3,450 mm allows efficient loading and dumping on uneven surfaces.
