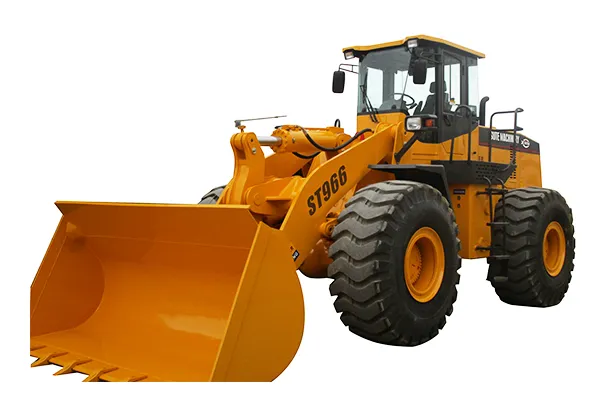

ST966H Wheel Loader
  • ST966H Wheel Loader
  • ST966H Wheel Loader

    • ST966H Wheel Loader

    Heavy-duty wheel loader with diesel engine for mining, quarrying, and large-scale construction projects

    • Operating weight
      19.5T
    • Rated load
      6,000kg
    • Rated engine power
      199kW
    • Rated rotate speed
      2200r/min
    Request a Quote
    Specifications
    Operating weight 19.5T
    Rated load 6,000kg
    Bucket capacity 3.5m³ (standard)
    4.0m³ (optional)
    Engine model WEICHAI WD10G270E201
    Rated engine power 199kW
    Rated rotate speed 2200r/min
    Max. torque 920N.m
    Max. traction force ≥185kN
    Breakout force ≥200kN
    Driving speed
    Forward Ⅰ 0-8.5km/h
    Forward Ⅱ 0-16.5km/h
    Forward Ⅲ 0-25km/h
    Forward IV 0-42km/h
    Reverse Ⅰ 0-8.5km/h
    Reverse Ⅱ 0-16km/h
    Gradeability 28°
    Overall length 8380mm
    Overall width 3100mm
    Overall height 3560mm
    Bucket width 3170mm
    Wheelbase 3350mm
    Track width 2360mm
    Min. ground clearance 470mm
    Max. dumping height 3300mm
    Max. dumping reach 1290mm
    Transmission Countershaft
    Fuel tank capacity 230L
    Hydraulic tank capacity 270L
    Raise cycle time ≤6.8s
    Total cycle time ≤12.5s
    Tire type 26.5-25

    Note:
    With ongoing technological advancements, product specifications and configurations are subject to change without prior notice. In case of any uncertainty, the final confirmation provided by our international trade sales team shall prevail.
    Features
    • High-performance power system
      Powered by a Weichai WD10G270E201 engine delivering 199 kW of output, the ST966H provides high torque at low RPM for both fuel efficiency and strong performance. Optional engine configurations including Cummins, Steyr, and Shanghai Diesel are available to meet diverse working conditions and customer requirements.
    • Reliable transmission system
      The loader is equipped with a fixed-shaft Beilian transmission and Shantui torque converter, ensuring smooth power delivery, excellent overload adaptability, and simple maintenance. This configuration supports continuous, stable operation even under harsh working conditions in mining and quarry environments.
