936Z Wheel Loader
  • 936Z Wheel Loader
  • 936Z Wheel Loader
  • 936Z Wheel Loader

    • 936Z Wheel Loader

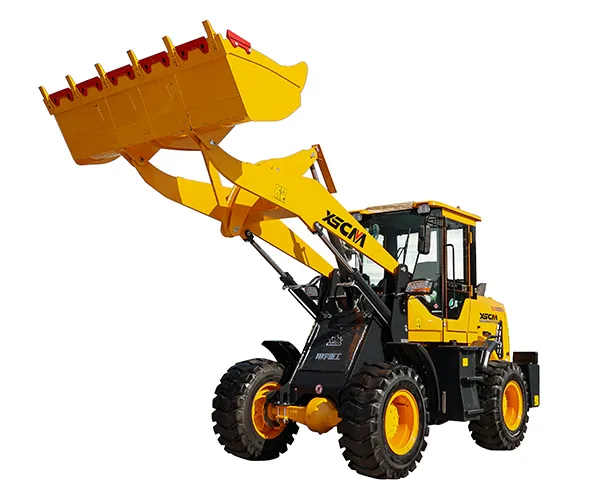

    Compact front end loader with diesel engine for landscaping, snow removal, and bulk handling tasks

    • Rated load
      1600kg
    • Rated bucket capacity
      0.65m³
    • Operating weight
      3660kg
    • Dump height
      3200mm

    The 936Z wheel loader is equipped with a split-type dual converter, four-wheel drive, and full-hydraulic steering, providing strong power, high efficiency, and excellent adaptability to different environments. Its dual-pump converging hydraulic system reduces energy loss and enhances operational performance. The machine is suitable for a wide range of applications, including construction, agriculture, landscaping, and earthmoving or material transport tasks.

    Request a Quote
    Specifications
    Model ZL936Z
    Rated load 1600kg
    Rated bucket capacity 0.65m³
    Operating weight 3660kg
    Dump height 3200mm
    Min. turning radius 2750mm
    Power 36~83kW
    Dimensions (L×W×H) 5650×1940×2720mm
    Main Components
    • 936Z Wheel Loader

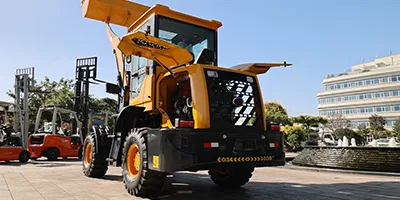

      Dual-opening rear hood with a large-angle tilting top cover for convenient inspection and maintenance

    • 936Z Wheel Loader

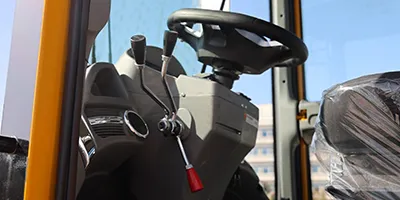

      Ergonomic cab layout designed for operator comfort and intuitive control

    • 936Z Wheel Loader

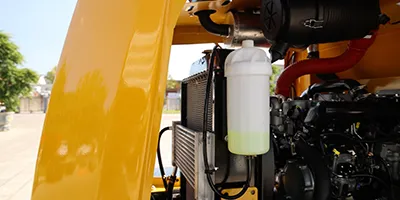

      Integrated powertrain and cooling system optimization, ensuring stable performance even under high temperatures and dusty working conditions

    • 936Z Wheel Loader

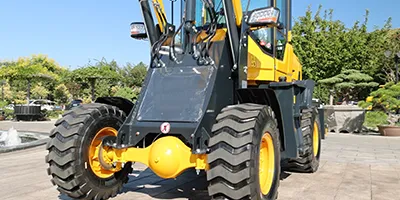

      Heavy-duty wheel reduction drive axle with a forged axle housing, engineered for strength and durability
