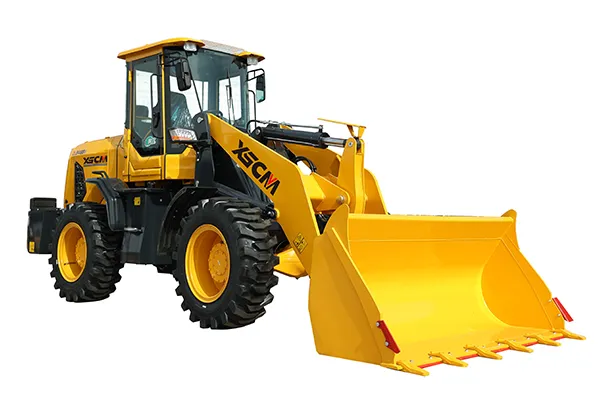

946BM Wheel Loader
Front end loader with diesel engine for heavy-duty material handling operations
- Rated load
2400kg - Rated bucket capacity
1.2m³ - Operating weight
5840kg - Dump height
3600mm
-
Specifications
| Model | ZL946 |
| Rated load | 2400kg |
| Rated bucket capacity | 1.2m³ |
| Operating weight | 5840kg |
| Dump height | 3600mm |
| Min. turning radius | 3380mm |
| Power | 85~90kW |
| Dimensions (L×W×H) | 6730×2225×2885mm |
Features
- Designed with a rated load capacity of 2,400 kg, the 946BM handles heavy material efficiently, reducing cycle times and increasing hourly productivity, ideal for demanding heavy-load applications.
- Integrated cast-steel axle housing, made from ductile iron using one-piece casting, ensures high structural strength, impact resistance, and excellent torsional rigidity.
- Wheel reduction function enhances output torque, providing superior traction on steep slopes and under heavy loads.
- Dry-type disc brake system offers high braking efficiency, quick response, and easy maintenance.
- Reinforced main reducer features high-strength alloy steel gears treated with carburizing and quenching for extended service life.
- Optimized sealing structure, with protective dust rings and oil seals at key points, prevents dust and water intrusion, extending the lifespan of critical components.
Detail Highlights

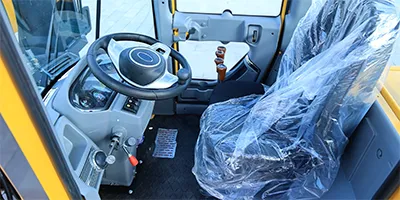

Cabin

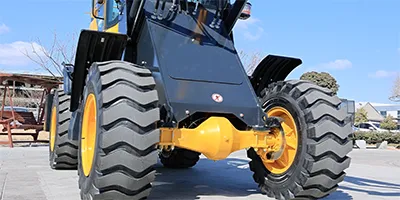

Driving axle and tires

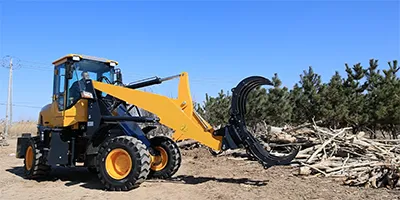

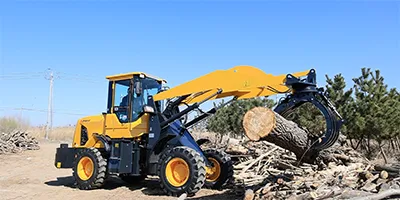

Applications
Contact Us
Send Us Your Inquiry
Tell us about your needs, our specialists will provide tailored recommendations and competitive quotes.
Which wheel loader is suitable for compact workspaces and environmentally sensitive areas?
Which wheel loader is suitable for compact workspaces and environmentally sensitive areas?
The electric front-end wheel loader is ideal for confined sites. With a compact body, narrow width, and small turning radius, it uses a pure electric drive system powered by a high-performance lithium battery. It delivers zero emissions and quiet operation, making it suitable for urban projects, factories, and agricultural areas with strict environmental standards.
Which model is recommended for large-scale mining operations requiring higher bucket capacity and wider dumping reach?
Which model is recommended for large-scale mining operations requiring higher bucket capacity and wider dumping reach?
The diesel front-end wheel loader is designed for heavy-duty applications. It features a 3 m³ bucket capacity and a maximum dumping height of 3,300 mm, providing excellent material handling efficiency and adaptability for intensive mining and loading operations.
Which wheel loader is suitable for forestry operations that require strong grip and stable performance when handling logs?
Which wheel loader is suitable for forestry operations that require strong grip and stable performance when handling logs?
The log handling diesel wheel loader is equipped with an extended grapple arm specifically designed for large-diameter timber. It ensures firm gripping and efficient transfer of logs. The combination of a fixed-shaft Beilian gearbox and a Shantui torque converter provides easy maintenance, smooth power transmission, and superior overload resistance.
Can the stone-handling diesel wheel loader operate effectively on rough or uneven terrain?
Can the stone-handling diesel wheel loader operate effectively on rough or uneven terrain?
The block handling diesel wheel loader features four-wheel drive and strong traction, combined with high ground clearance to handle challenging site conditions. Its large counterweight offset angle enhances climbing ability, while a maximum lifting capacity of 16 tons, long wheelbase, and reinforced frame ensure operational stability. The maximum unloading height of 3,450 mm allows efficient loading and dumping on uneven surfaces.
