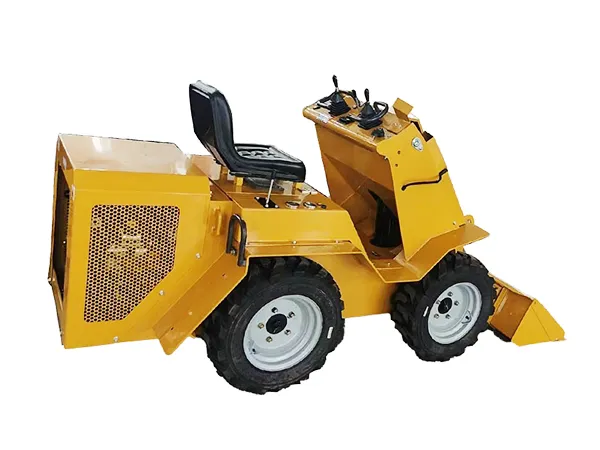

S490 Mini Skid Steer Loader
Wheeled skid steer with rated operating capacity of 250kg for operation in confined job sites
- Vehicle height
1300mm - Length with standard bucket
2700mm - Vehicle width (standard tire)
1100mm - Length without standard bucket
2300mm
Specifications
| Vehicle height | 1300mm |
| Length with standard bucket | 2700mm |
| Vehicle width (standard tire) | 1100mm |
| Length without standard bucket | 2300mm |
| Bucket width | 1050mm |
| Tail length | 500mm |
| Height at maximum extension | 2530mm |
| Height to the bucket pin | 1933mm |
| Max. height as lay the bucket flat | 1740mm |
| Dumping height | 1400mm |
| Discharge distance | 595mm |
| Wheelbase | 940mm |
| Ground clearance | 180mm |
| Bucket flip angle on the ground | 27° |
| Bucket flip angle at highest position | 114° |
| Engine brand | Electric/Koop/Runtong/B&S |
| Rated power | 8kW (72V, 200Ah)/15kW/ 19.2kW/17kW |
| Number of cylinders | 2 |
| Air intake way | Naturally aspirated |
| Emission standard | EPA/EURO5 |
| Rated operating capacity | 250kg |
| Max. operating capacity | 350kg |
| Max. breakout force | 4.5kN |
| Bucket capacity | 0.12m³ |
| Driving speed | 0-6km/h |
| Total cycle time | 9s |
| System operating pressure | 17-21bar |
| Fuel tank capacity | 10L |
| Operating weight | 1200kg |
| Wheel size | 23×8.5-12 |
Features
-

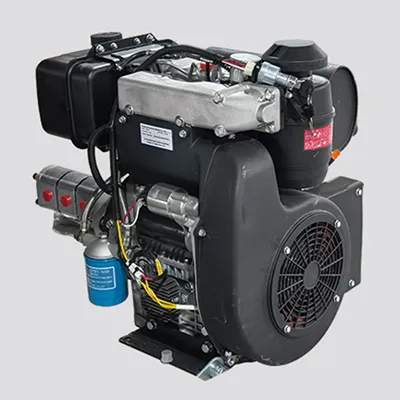

Multiple power system options: Available with Koop 292, Runtong, or Briggs & Stratton engines, as well as an electric motor, providing flexibility for various working conditions -

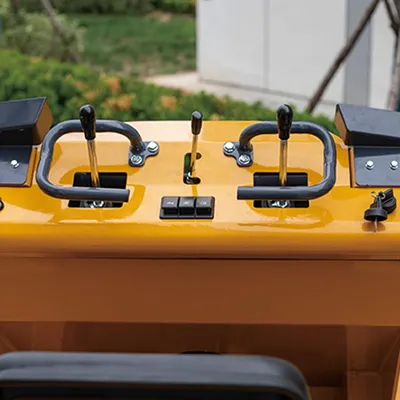

Central control console -

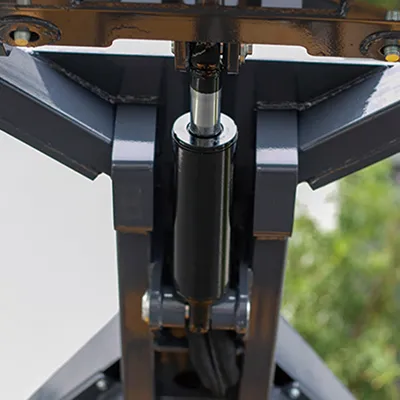

Hydraulic system -

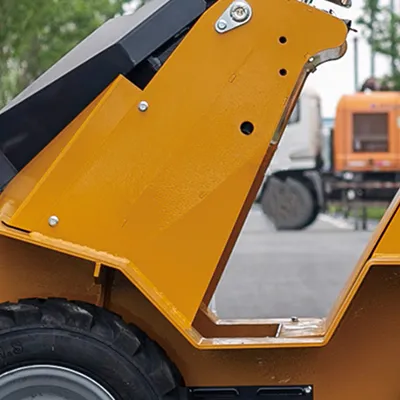

Concealed hydraulic hoses -

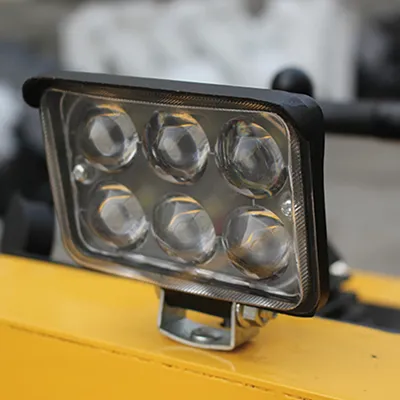

LED headlights -
Multi-functional attachments compatible with a range of tools
Optional attachment

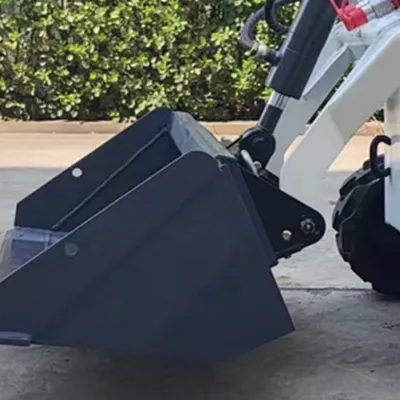

Standard bucket
Deep bucket
Screening bucket
Quick coupler
Pallet forks
Auger
Snow plow blade
Log grapple
Round bale handler
Square bale handler
Flail mower
Lifting boom / Crane Attachment
Instruction Manual
-
Turn on the main power switch -
Increase the throttle to supply fuel -
Push the decompression lever -
Start the engine -
Push the control levers forward to move forward -
Pull the control levers backward to move in reverse -
Push the left control lever left, the boom raises -
Push the left control lever right, the boom lowers -
Push the right control lever left, the bucket curls up -
Push the right control lever right, the bucket dumps -
Attachment control valve -
Push one lever forward and pull the other backward to rotate the loader 360° in place.
Which wheel loader is suitable for compact workspaces and environmentally sensitive areas?
Which wheel loader is suitable for compact workspaces and environmentally sensitive areas?
The electric front-end wheel loader is ideal for confined sites. With a compact body, narrow width, and small turning radius, it uses a pure electric drive system powered by a high-performance lithium battery. It delivers zero emissions and quiet operation, making it suitable for urban projects, factories, and agricultural areas with strict environmental standards.
Which model is recommended for large-scale mining operations requiring higher bucket capacity and wider dumping reach?
Which model is recommended for large-scale mining operations requiring higher bucket capacity and wider dumping reach?
The diesel front-end wheel loader is designed for heavy-duty applications. It features a 3 m³ bucket capacity and a maximum dumping height of 3,300 mm, providing excellent material handling efficiency and adaptability for intensive mining and loading operations.
Which wheel loader is suitable for forestry operations that require strong grip and stable performance when handling logs?
Which wheel loader is suitable for forestry operations that require strong grip and stable performance when handling logs?
The log handling diesel wheel loader is equipped with an extended grapple arm specifically designed for large-diameter timber. It ensures firm gripping and efficient transfer of logs. The combination of a fixed-shaft Beilian gearbox and a Shantui torque converter provides easy maintenance, smooth power transmission, and superior overload resistance.
Can the stone-handling diesel wheel loader operate effectively on rough or uneven terrain?
Can the stone-handling diesel wheel loader operate effectively on rough or uneven terrain?
The block handling diesel wheel loader features four-wheel drive and strong traction, combined with high ground clearance to handle challenging site conditions. Its large counterweight offset angle enhances climbing ability, while a maximum lifting capacity of 16 tons, long wheelbase, and reinforced frame ensure operational stability. The maximum unloading height of 3,450 mm allows efficient loading and dumping on uneven surfaces.
