Block Handling Loader (Block Handler)
  • Block Handling Loader (Block Handler)

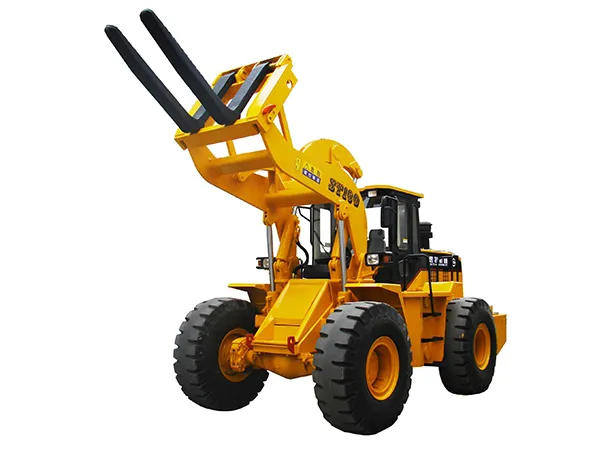

    ST160 Block Handling Loader (16000kg)
  • Block Handling Loader (Block Handler)
  • Block Handling Loader (Block Handler)
    ST280 Block Handling Loader (28000kg)
  • Block Handling Loader (Block Handler)
  • Block Handling Loader (Block Handler)
    ST400 Block Handling Loader (40000kg)

    • Block Handling Loader (Block Handler)

    Wheel loader with quarry forks for block handling

    • Wheelbase
      3200-4400mm
    • Track width
      2280-3200mm
    • Min. ground clearance
      470mm
    • Max. steering angle
      ±35°
    Request a Quote
    Specifications
    Model ST160 ST280 ST400
    Wheelbase 3200mm 4400mm 4200mm
    Track width 2280mm 3147mm 3200mm
    Min. ground clearance 470mm 470mm 470mm
    Max. steering angle ±35° ±35° ±35°
    Overall length 8070mm 10150mm 10180mm
    Overall width 2880mm 3130mm 3450
    Overall height 3240mm 3680mm 3900mm
    Departure angle 23° 23° 23°
    Rated load 16000kg 28000kg 40000kg
    Operating weight 19000kg 30000kg 39600kg
    Dumping height 3600mm 3300mm 3200mm
    Dumping reach 1200mm 1200mm 1200mm
    Engine model WD10G220E23 WD10G240E21 WD10G336E211
    Engine type 4-stroke direct-injection, turbo charged 4-stroke direct-injection, turbo charged 4-stroke direct-injection, turbo charged
    Rated power 162kW 175kW 247kW
    Rated speed 2000r/min 2200r/min 2200r/min
    Max. torque 860N/m 920N/m 1350N/m
    Transmission type Planetary hydraulic shift Fixed-shaft Fixed-shaft
    Number of speeds 2 Forwards 1 Reverse 4 Forwards 4 Reverse 4 Forwards 4 Reverse
    Driving mode Four-wheel driving Four-wheel driving Four-wheel driving
    Tire type 23.5-25/24PR 26.5-25/32PR 29.5-25/32PR
    Hand brake type Air-controlled disc brake Air-controlled disc brake Air-controlled disc brake
    Foot brake type/brake pressure Air over hydraulic disc type, four-wheel brake/0.7MPa Air over hydraulic disc type, four-wheel brake/0.7MPa Air over hydraulic disc type, four-wheel brake/0.7MPa

    Note:
    With ongoing technological advancements, product specifications and configurations are subject to change without prior notice. In case of any uncertainty, the final confirmation provided by our international trade sales team shall prevail.
