ST978H Log Handling Loader
  • ST978H Log Handling Loader
  • ST978H Log Handling Loader
  • ST978H Log Handling Loader

    • ST978H Log Handling Loader

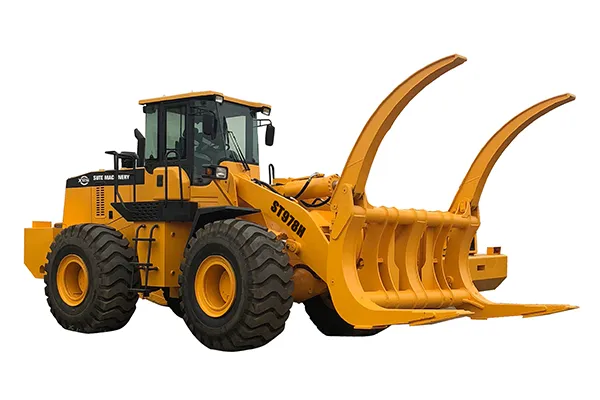

    Wheel loader with log forks for wood log handling

    • Operating weight
      22.0T
    • Rated load
      12,000~18,000kg
    • Rated engine power
      199kW
    • Rated rotate speed
      2200r/min
    Request a Quote
    Specifications
    Operating weight 22.0T
    Rated load 12,000~18,000kg
    Engine model WEICHAI WD10G270E201
    Rated engine power 199kW
    Rated rotate speed 2200r/min
    Max. torque 920N.m
    Max. traction force ≥185kN
    Breakout force ≥200kN
    Driving speed
    Forward Ⅰ 0-8.5km/h
    Forward Ⅱ 0-16.5km/h
    Forward Ⅲ 0-25km/h
    Forward IV 0-42km/h
    Reverse Ⅰ 0-8.5km/h
    Reverse Ⅱ 0-16km/h
    Gradeability 28°
    Overall length 8400mm
    Overall width 3100mm
    Overall height 3560mm
    Bucket width 3170mm
    Wheelbase 3550mm
    Track width 2360mm
    Min. ground clearance 470mm
    Max. dumping height 3900mm
    Max. dumping reach 1290mm
    Transmission Countershaft
    Fuel tank capacity 230L
    Hydraulic tank capacity 270L
    Raise cycle time ≤6.8s
    Total cycle time ≤12.5s
    Tire type 26.5-25

    Note:
    With ongoing technological advancements, product specifications and configurations are subject to change without prior notice. In case of any uncertainty, the final confirmation provided by our international trade sales team shall prevail.

    Features
    • Powerful engine
      Equipped with a Weichai WD10G270E201 199 kW diesel engine, delivering strong torque at low speeds for energy efficiency and reduced emissions. Optional engine configurations include Cummins, Steyr, and Shanghai Diesel, meeting different working requirements.
    • Transmission and torque converter
      Fitted with a fixed-shaft Beilian transmission and Shantui torque converter, ensuring efficient power delivery, smooth operation, and excellent overload adaptability while maintaining easy servicing.
    • Cabin
      The elevated cab design provides a clear forward view over the grapple arms, enhancing operator accuracy, visibility, and overall safety during log handling operations.
