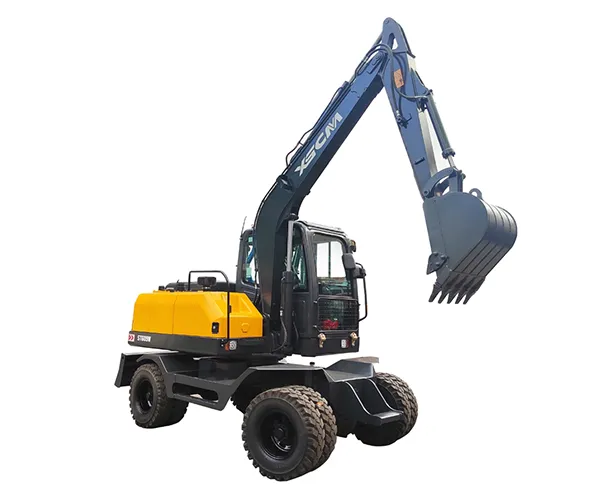

ST609W Compact Wheel Excavator
  • ST609W Compact Wheel Excavator
  • ST609W Compact Wheel Excavator
  • ST609W Compact Wheel Excavator

    • ST609W Compact Wheel Excavator

    Compact wheel excavator compatible with log grapples, buckets, breakers, and other attachments for forestry, construction, and municipal projects

    • Rated power
      48kW/2200rpm
    • Operating weight
      6550kg
    • Rated load
      500kg
    • Bucket capacity
      0.27m³

    The ST609W wheel excavator is designed with sustainability and operator comfort in mind, combining powerful performance with reduced environmental impact. It integrates advanced technologies that enhance fuel efficiency, lower emissions, and improve long-term reliability for a wide range of professional applications.

    Request a Quote
    Specifications

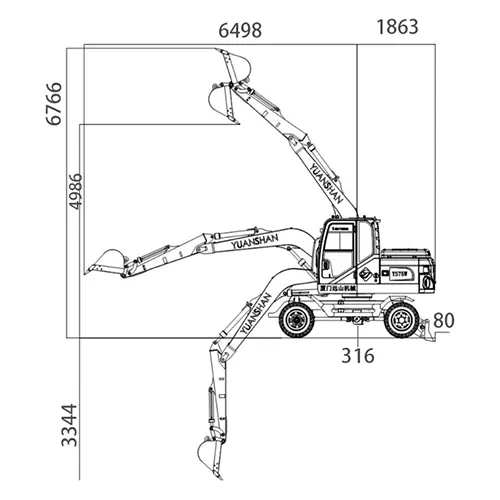

    Operating Range

    Boom length 3400mm
    Arm length 1900mm
    Max. digging reach 6498mm
    Max. digging depth 3344mm
    Max. digging height 6766mm
    Max. dumping height 4986mm
    Min. platform tail turning radius 1863mm
    ST609W Compact Wheel Excavator

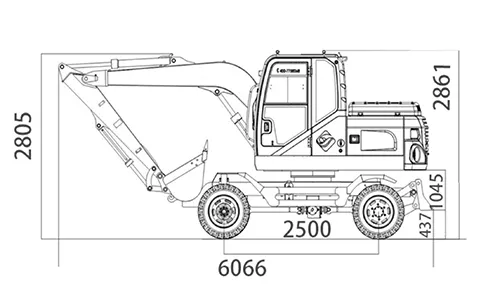

    Dimensions

    Overall width 2050mm
    Overall height 2861mm
    Wheelbase 2500mm
    Distance from digging arm to rotating center 4203mm
    Overall length 6066mm
    Min. ground clearance 240mm
    Height of dozer blade (optional) 460mm
    Dozer blade rising distance/lowering distance 437/80mm
    ST609W Compact Wheel Excavator

    Technical Parameters

    Rated power 48kW/2200rpm
    Operating weight 6550kg
    Rated load 500kg
    Bucket capacity 0.27m³
    Hydraulic working pressure 25Mpa
    Max. digging force 48kN
    Gradeability 59% (30°)
    Travel speed 30km/h
    Max. traction force 65kN
    Swing speed of platform 10.5rpm
    Fuel tank capacity 145L
    Hydraulic tank capacity 100L
    Advantages
    ST609W Compact Wheel Excavator

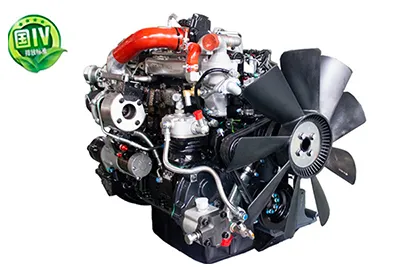

    Compliant with China stage IV emission standards
    Equipped with the latest Yuchai engine and advanced common rail and turbocharged technology, the excavator achieves cleaner combustion, reduced fuel consumption, and significantly lower emissions, cutting fuel use by up to 15% compared to previous models.

    ST609W Compact Wheel Excavator

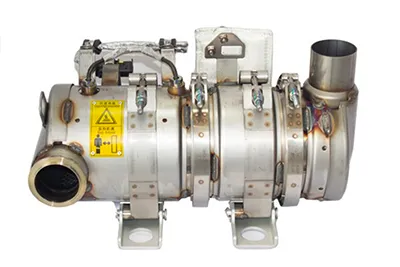

    Diesel particulate filter (DPF) for clean air
    The integrated DPF system effectively captures and burns particulate matter (PM), reducing black smoke and harmful exhaust particles, helping to improve air quality on and off the job site.

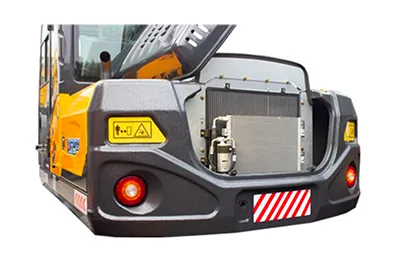

    • ST609W Compact Wheel ExcavatorModular cooling system

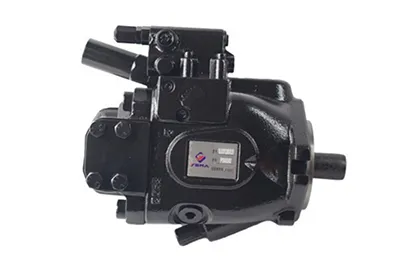

    • ST609W Compact Wheel ExcavatorPrecision-engineered hydraulic pump, load-sensing system, and power-adjusted variable piston pump

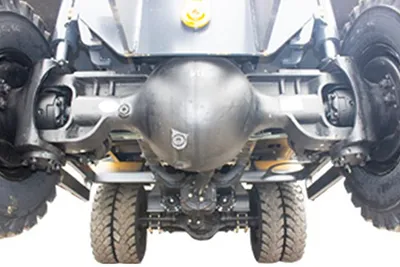

    • ST609W Compact Wheel ExcavatorEco-friendly transmission and axles
    Luxury Cab for Operator Wellbeing

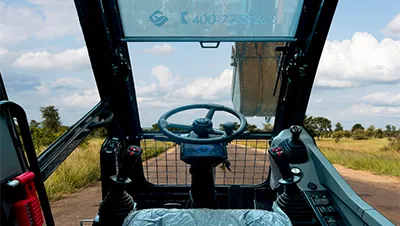

    • ST609W Compact Wheel Excavator Enhanced panoramic visibility

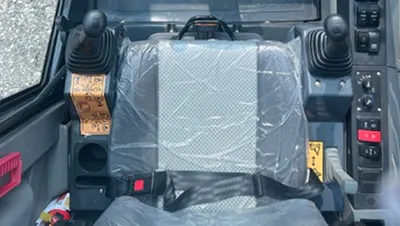

    • ST609W Compact Wheel ExcavatorErgonomic seating for all-day comfort
    • ST609W Compact Wheel ExcavatorAdvanced climate control system

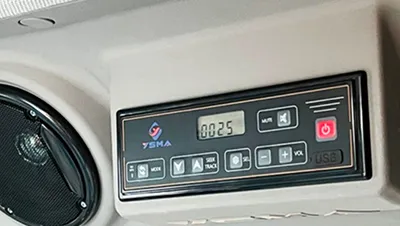

      Integrated Bluetooth multimedia system
      Smart digital dashboard

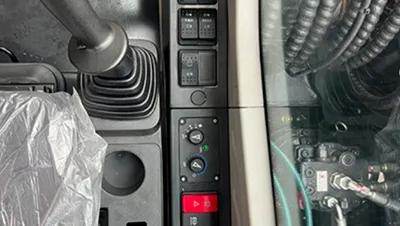

    • ST609W Compact Wheel ExcavatorErgonomic control layout
    Optional attachments

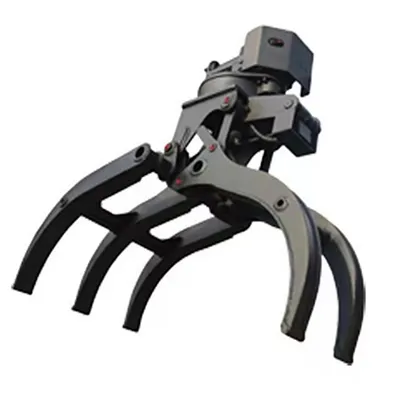

    • ST609W Compact Wheel ExcavatorLog grapple

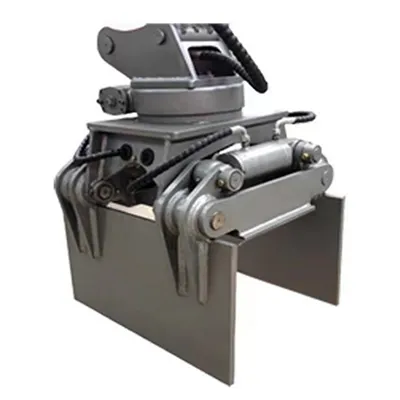

    • ST609W Compact Wheel ExcavatorHydraulic grab

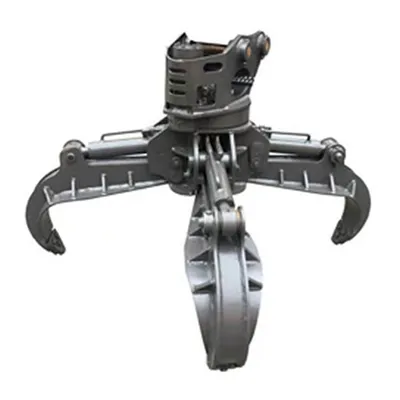

    • ST609W Compact Wheel ExcavatorMulti-tine grapple

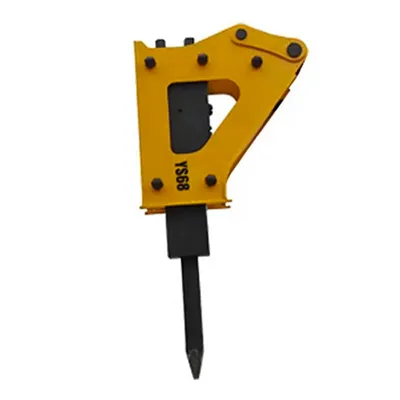

    • ST609W Compact Wheel ExcavatorHydraulic breaker
    Contact Us
    Send Us Your Inquiry

    Tell us about your needs, our specialists will provide tailored recommendations and competitive quotes.

    A wheel excavator is recommended for such demanding conditions. It features a high-strength integrated axle and improved transmission efficiency to reduce overall energy consumption while maintaining stable performance across uneven terrain. The extended wheelbase, low-stress high-strength welded box frame, and reinforced boom structure make it well-suited for steep-angle excavation tasks.

    The brake chamber of our wheel excavator is positioned behind the front axle to enhance safety and minimize the risk of damage from falling debris. Its reinforced axles offer excellent load-bearing capacity and reliability, while the transfer case is equipped with an internal oil pump, reducing collision risks and improving operational safety in harsh mining environments.
