ST608W Wheel Excavator
  • ST608W Wheel Excavator
  • ST608W Wheel Excavator
  • ST608W Wheel Excavator

    • ST608W Wheel Excavator

    Hydraulic wheel excavator compatible with log grapples, buckets, breakers, and other attachments for forestry, construction, and municipal projects

    • Operating weight
      5100kg
    • Rated load
      1500kg
    • Bucket capacity
      0.6m³
    • Max. speed
      12/18km/h

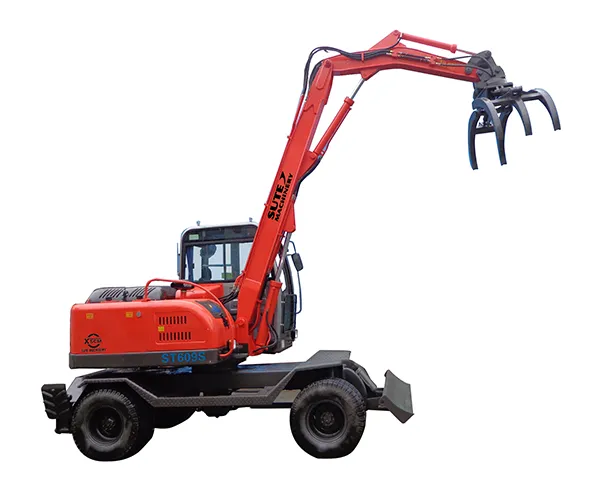

    The ST608W dual-drive wheel excavator is equipped with both front and rear wheel drive, ensuring strong traction and stability. It features a two-way telescopic steering system, four-wheel air brake, and an oversized brake hub for safe and responsive control. The high-efficiency transmission system, enhanced power configuration, extended wheelbase, and low-stress high-strength welded box-type frame work together to provide superior durability and handling. The enlarged and lengthened boom and arm allow deeper excavation, while its climbing performance and overall efficiency rival those of imported models.

    Request a Quote
    Specifications
    Operating Range
    Boom length 3030mm
    Arm length 1860mm
    Max. digging reach 6000mm
    Max. digging depth 3380mm
    Max. digging force 45kN
    Max. digging height 5800mm
    Max. dumping height 4300mm
    Tail swing radius 1775mm
    Dimensions
    Distance from arm to rotating center 3620mm
    Transport dimensions (L×W×H) 5500×2100×2850mm
    Ground clearance of counterweight 1060mm
    Min. ground clearance 200mm
    Technical Parameters
    Angle of rotation 360°
    Machine weight 6000kg
    Engine model 498BPG (high configuration)
    Hydraulic system working pressure 19.5MPa
    Rated power 48kW
    Travel speed (low/high) 9/36km/h
    Max. traction force 60kN
    Ground pressure 52kPa
    Grade climbing ability 30°
    Full swing cycle time 5.5s
    Bucket capacity 0.2-0.3m³
    Swing overload pressure 11MPa
    Fuel consumption 4L/h
    Fuel tank capacity 130L
    Hydraulic tank capacity 110L
    Features
    • Enhanced safety design: The brake chamber is positioned behind the front axle to reduce the risk of damage from falling debris and ensure safer operation.
    • Reliable transmission system: The transfer case is equipped with an internal oil pump, minimizing collision risk and enhancing operational reliability.
    • Reinforced boom cylinder support: Strengthened mounting design prevents cracking during continuous heavy-duty work.
    Optional attachments

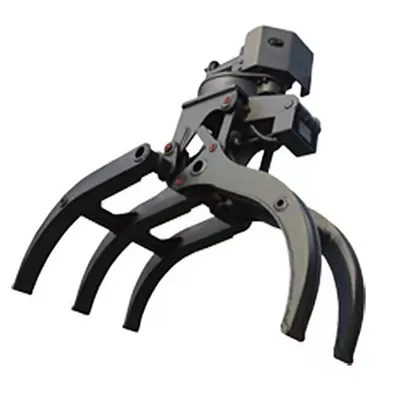

    • ST608W Wheel ExcavatorLog grapple

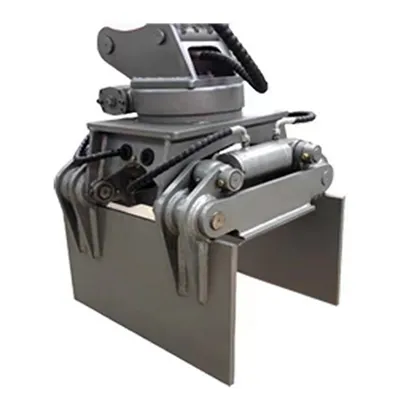

    • ST608W Wheel ExcavatorHydraulic grab

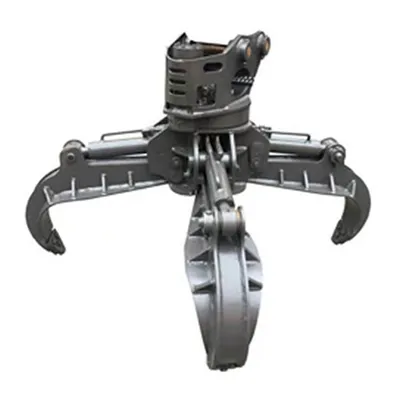

    • ST608W Wheel ExcavatorMulti-tine grapple

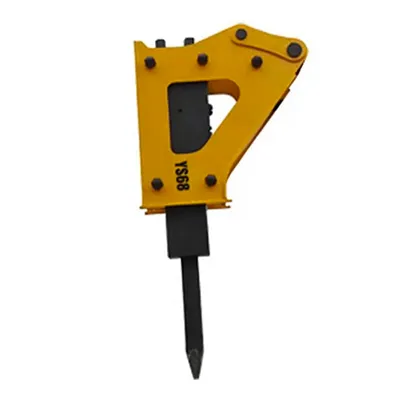

    • ST608W Wheel ExcavatorHydraulic breaker
    Contact Us
    Send Us Your Inquiry

    Tell us about your needs, our specialists will provide tailored recommendations and competitive quotes.

    A wheel excavator is recommended for such demanding conditions. It features a high-strength integrated axle and improved transmission efficiency to reduce overall energy consumption while maintaining stable performance across uneven terrain. The extended wheelbase, low-stress high-strength welded box frame, and reinforced boom structure make it well-suited for steep-angle excavation tasks.

    The brake chamber of our wheel excavator is positioned behind the front axle to enhance safety and minimize the risk of damage from falling debris. Its reinforced axles offer excellent load-bearing capacity and reliability, while the transfer case is equipped with an internal oil pump, reducing collision risks and improving operational safety in harsh mining environments.
