E20 Electric Wheel Loader
E25 Electric Wheel Loader

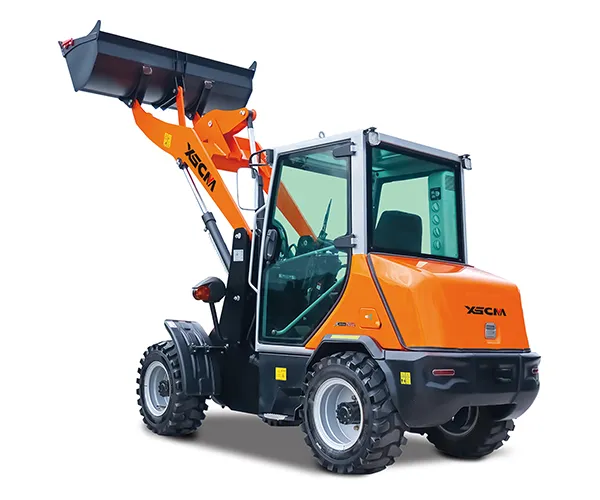

E20/25 Electric Wheel Loader
Compact front end loader ideal for construction, logistics, and agricultural applications
- Rated load
1200-1500kg - Rated bucket capacity
0.5-0.6m³ - Operating weight
3200-3500kg - Dump height
3000-3300mm
The E20/25 electric wheel loader features an auxiliary hydraulic system at the front of the lift arm, equipped with protected piping for the 3rd and 4th control circuits, overflow line, and unpressurized return line (configuration may vary by model). This thoughtful design is rarely seen in compact wheel loaders but effectively reduces wear and extends service life, ensuring long-term operational reliability.
Specifications
| Model | ||
| Rated load | 1200kg | 1500kg |
| Rated bucket capacity | 0.5m³ | 0.6m³ |
| Operating weight | 3200kg | 3500kg |
| Dump height | 3000mm | 3300mm |
| Min. turning radius | 2800mm | 2800mm |
| Battery capacity | 31.6kWh | 31.6kWh |
| Dimensions (L×W×H) | 4550×1550×2160mm | 4780×1550×2160mm |
Features
- Certified with CE quality standards, ensuring compliance with international safety and performance requirements.
- A digital display screen allows operators to monitor battery charge status, remaining operation or charging time, speed, and average energy consumption in real time.
Optional attachment
Standard bucket
Deep bucket
Screening bucket
Quick coupler
Pallet forks
Auger

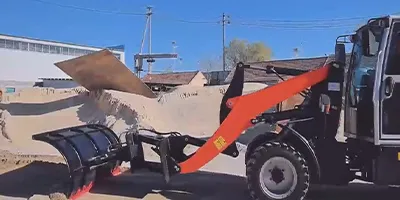

Snow plow blade

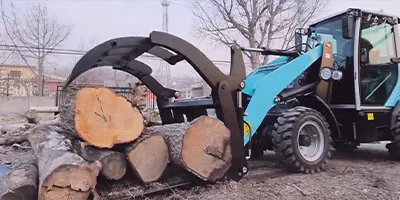

Log grapple
Round bale handler
Square bale handler
Flail mower
Lifting boom / Crane Attachment
How do electric wheel loaders operate in extreme cold environments?
How do electric wheel loaders operate in extreme cold environments?
- Battery system adaptation for low temperatures
Equipped with PTC heaters or integrated liquid cooling/heating systems to maintain battery temperature above 0°C
Uses optimized LFP or low-temperature NCM cells
A smart BMS manages temperature and applies strategies such as current limiting and delayed discharge - Electric motor and control system
Uses wide-temperature-range controllers and motors (-40°C to +85°C)
Controllers include preheating and self-check functions for reliable cold-weather operation
How long can the electric loader operate on a full charge?
How long can the electric loader operate on a full charge?
Depending on working conditions, one full charge provides 4-8 hours of operation. Continuous heavy-duty work may reduce the duration.
How long does it take to charge? Does it support fast charging?
How long does it take to charge? Does it support fast charging?
Standard charging takes 6-8 hours, while fast charging can reach full capacity in 1.5-2 hours using compatible equipment.
What brand is the battery? How long is the warranty? Is it replaceable?
What brand is the battery? How long is the warranty? Is it replaceable?
The loader typically uses CATL, BYD, or EVE lithium batteries with a 5-year or 10,000-hour warranty. The battery is fully replaceable.
