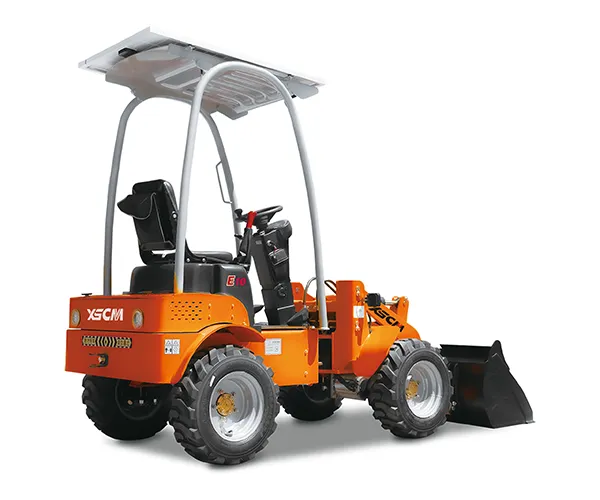

E10/15 Electric Wheel Loader
  • E10/15 Electric Wheel Loader
    E10 Electric Wheel Loader
  • E10/15 Electric Wheel Loader
    E15 Electric Wheel Loader

    • E10/15 Electric Wheel Loader

    Compact front end loader ideal for residential and urban projects

    • Rated load
      500-700kg
    • Rated bucket capacity
      0.3m³
    • Operating weight
      1050-1650kg
    • Dump height
      1400-2000mm

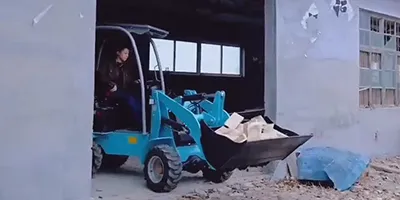

    The E10/15 electric compact wheel loader operates with exceptionally low noise, making it ideal for residential areas and noise-sensitive environments. Its parallel linkage system enhances pallet handling and forklift applications, ensuring stable lifting and precise load control.

    Request a Quote
    Specifications
    Model E10 E15
    Rated load 500kg 700kg
    Rated bucket capacity 0.3m³ 0.3m³
    Operating weight 1050kg 1650kg
    Dump height 1400mm 2000mm
    Min. turning radius 1780mm 2230mm
    Battery capacity 8kWh 16kWh
    Dimensions (L×W×H) 3010×1080×2070mm 3520×1080×2070mm
    Features
    • Equipped with a Permanent Magnet Synchronous Motor (PMSM) drive system that replaces the traditional internal combustion engine. This design offers a simpler structure, eliminates frequent oil and filter replacements, and greatly reduces maintenance costs.
    • Compatible with a wide range of attachments such as quick-change buckets, log grapples, and snow sweepers, enabling versatile performance across multiple scenarios including digging, breaking, pushing, drilling, and material handling.
    Optional attachment

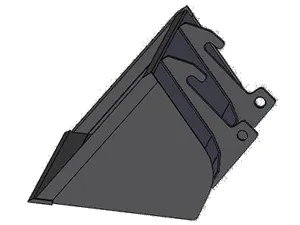

    • Standard bucketStandard bucket

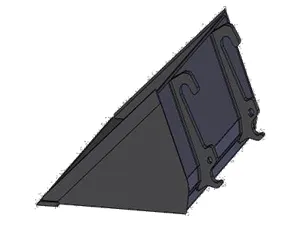

    • Deep bucketDeep bucket

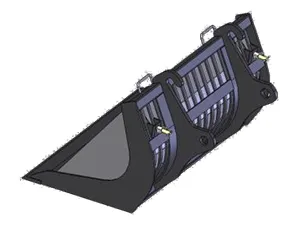

    • Screening bucketScreening bucket

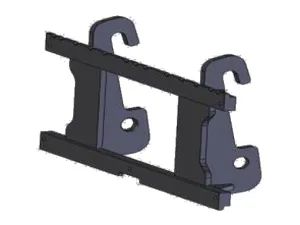

    • Quick couplerQuick coupler

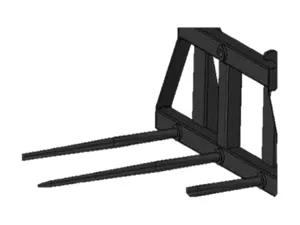

    • Pallet forksPallet forks

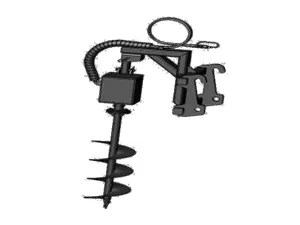

    • AugerAuger

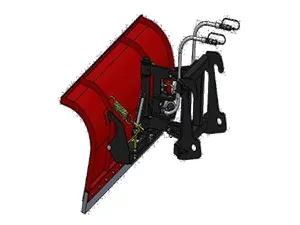

    • Snow plow bladeSnow plow blade

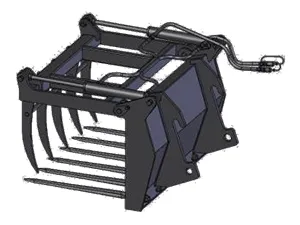

    • Log grappleLog grapple

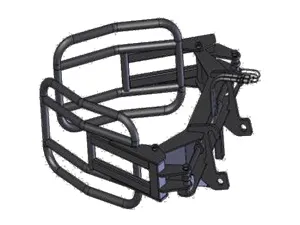

    • Round bale handlerRound bale handler

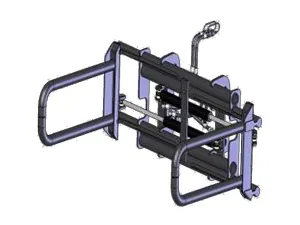

    • Square bale handlerSquare bale handler

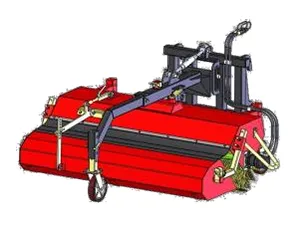

    • Flail mowerFlail mower

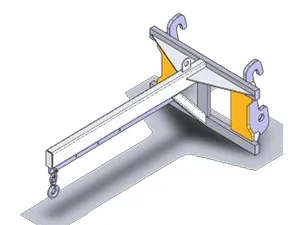

    • Lifting boom / Crane AttachmentLifting boom / Crane Attachment

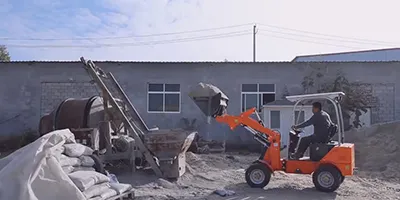

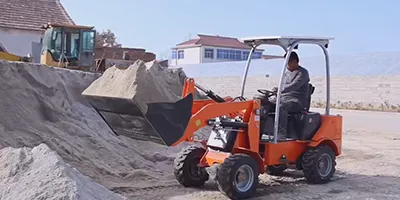

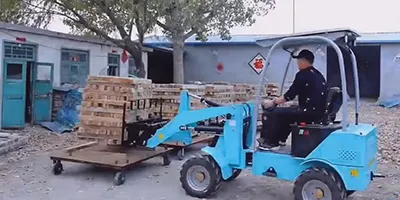

    Applications
    • E10/15 Electric Wheel Loader
    • E10/15 Electric Wheel Loader
    • E10/15 Electric Wheel Loader
    • E10/15 Electric Wheel Loader
    Contact Us
    Send Us Your Inquiry

    Tell us about your needs, our specialists will provide tailored recommendations and competitive quotes.

    • Battery system adaptation for low temperatures
      Equipped with PTC heaters or integrated liquid cooling/heating systems to maintain battery temperature above 0°C
      Uses optimized LFP or low-temperature NCM cells
      A smart BMS manages temperature and applies strategies such as current limiting and delayed discharge
    • Electric motor and control system
      Uses wide-temperature-range controllers and motors (-40°C to +85°C)
      Controllers include preheating and self-check functions for reliable cold-weather operation

    Depending on working conditions, one full charge provides 4-8 hours of operation. Continuous heavy-duty work may reduce the duration.

    Standard charging takes 6-8 hours, while fast charging can reach full capacity in 1.5-2 hours using compatible equipment.

    The loader typically uses CATL, BYD, or EVE lithium batteries with a 5-year or 10,000-hour warranty. The battery is fully replaceable.
