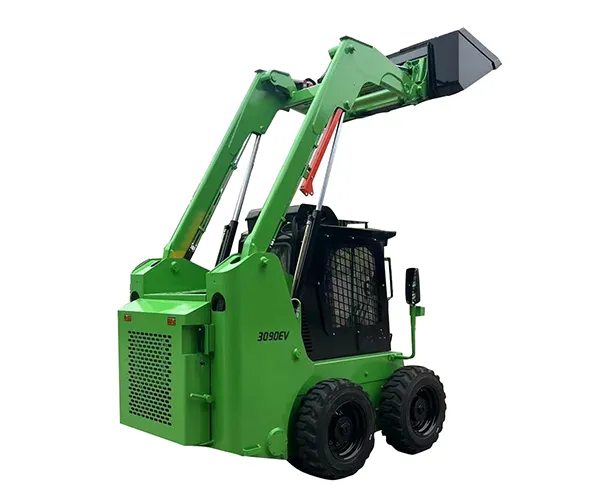

ST3090EV Electric Skid Steer Loader
  • ST3090EV Electric Skid Steer Loader
  • ST3090EV Electric Skid Steer Loader
  • ST3090EV Electric Skid Steer Loader
  • ST3090EV Electric Skid Steer Loader
  • ST3090EV Electric Skid Steer Loader

    • ST3090EV Electric Skid Steer Loader

    Wheeled electric skid loader delivering up to 8 hours of operation on a single charge

    • Bucket capacity
      0.5m³
    • Operating weight
      3500kg
    • Travel speed
      14km/h
    • Rated load
      1000kg
    • Extended battery life, providing 6-8 hours of continuous operation per charge for efficient daily use
    • High-efficiency power system combining 4×12kW drive motors with a 30kW hydraulic system for smooth, responsive performance
    • Rated load of 1000 kg and 0.5 m³ bucket capacity, offering excellent loading and material-handling capability in compact spaces
    Request a Quote

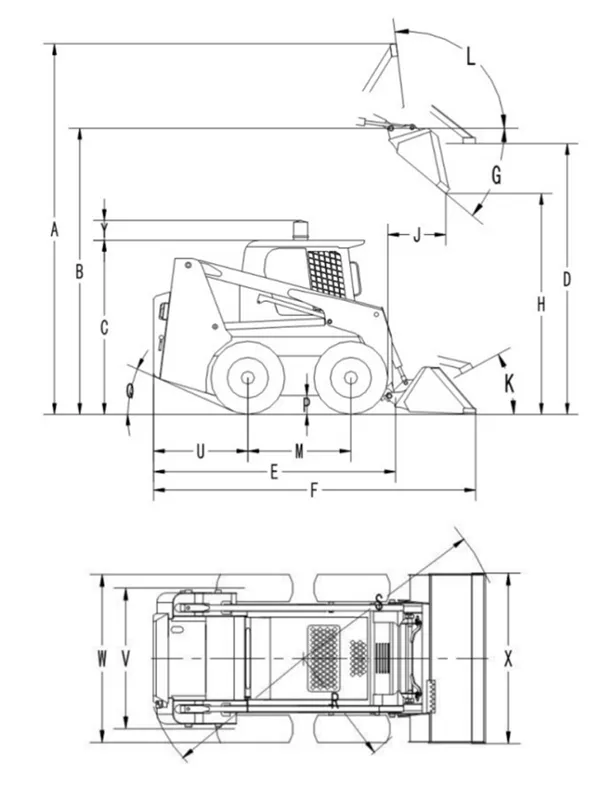

    Specifications
    A Overall height 4270mm
    B Bucket pin height at maximum lift 3265mm
    C Height to top of cab 2007mm
    D Height to level bucket 3090mm
    E Overall length (without bucket) 2571mm
    F Overall length (with bucket) 3498mm
    G Max. dumping angle 35°
    H Dumping height 2551mm
    J Dumping reach 603mm
    k Back angle on ground 30°
    L Back angle at lifting height 103°
    M Wheelbase 1020mm
    P Ground clearance 185mm
    Q Departure angle 22°
    R Turning radius from center (no bucket) 1235mm
    S Turning radius from center 2110mm
    T Turning radius from rear tail 1643mm
    U Bumper overhang behind rear axle 1080mm
    V Width 1469mm
    W Overall width (tires) 1740mm
    X Overall width (bucket) 1800mm
    Y Alarm light height 190mm
    ST3090EV Electric Skid Steer Loader
    Technical Parameters
    Bucket capacity 0.5m³
    Operating weight 3500kg
    Travel speed 14km/h
    Rated load 1000kg
    Tire type 12-16.5
    Power Battery
    Battery type Lithium ion
    Battery voltage 380V
    Battery capacity 53.6kWh
    Reference running time 6-8h
    Driving System
    Motor type Permanent magnet synchronous motor
    Motor power 4×12kW
    Hydraulic System
    Motor type Permanent magnet synchronous motor
    Motor power 30kW
    Hydraulic flow 70l/min
    Hydraulic pressure 215bar

    Note:
    With ongoing technological advancements, product specifications and configurations are subject to change without prior notice. In case of any uncertainty, the final confirmation provided by our international trade sales team shall prevail.
    Optional attachment
    • Standard bucketStandard bucket
    • Deep bucketDeep bucket
    • Screening bucketScreening bucket
    • Quick couplerQuick coupler
    • Pallet forksPallet forks
    • AugerAuger
    • Snow plow bladeSnow plow blade
    • Log grappleLog grapple
    • Round bale handlerRound bale handler
    • Square bale handlerSquare bale handler
    • Flail mowerFlail mower
    • Lifting boom / Crane AttachmentLifting boom / Crane Attachment
    Contact Us
    Send Us Your Inquiry

    Tell us about your needs, our specialists will provide tailored recommendations and competitive quotes.

    Our electric skid steer loaders operate with zero emissions and are powered by lithium iron phosphate battery systems, making them clean, quiet, and energy-efficient. They are ideal for indoor environments and job sites with strict environmental regulations.

    The wheel skid steer loader features a simple hydraulic cylinder structure and direct transmission without backlash, ensuring smooth operation and compact maneuverability. It’s suitable for narrow spaces such as sidewalks, residential areas, and plazas, as well as for construction sites and livestock farms.

    The tracked skid steer loader is designed with a simple hydraulic system and smooth transmission. It supports a multi-functional attachment interface, allowing fast tool changes for diverse tasks. Operation is intuitive, efficient, and well-suited for multiple environments.
